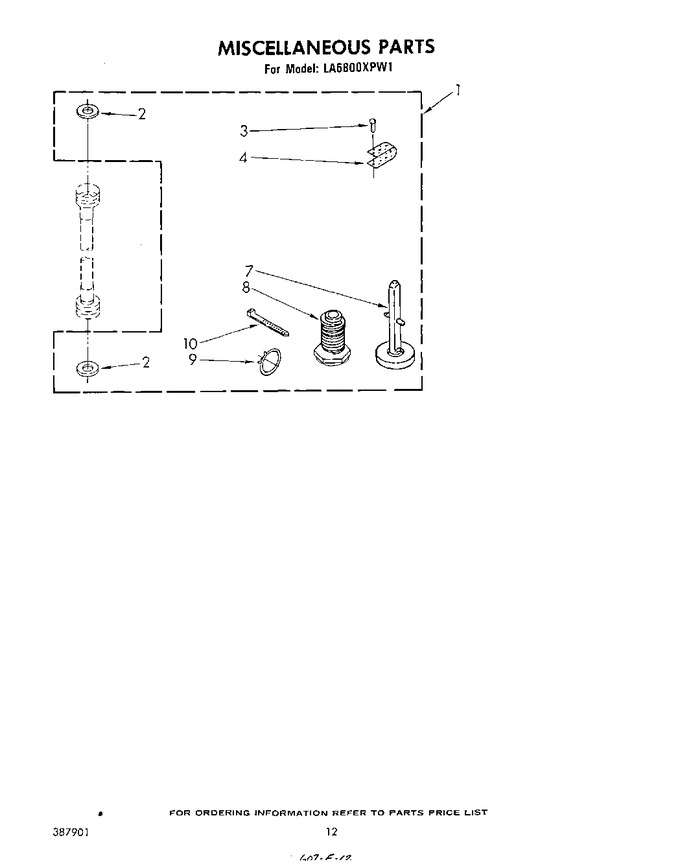

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 387200 Miscellaneous Parts Bag Appelez-nous -
2 WP16123 Washer, Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123) Special Order $ 6.93

3 132848 Screw, Ground (10-24 X 1) Appelez-nous -
4 22965 Strap, Ground Appelez-nous -
7 WP358594 Foot, Rear (2)   (Replaces: 358594) Special Order $ 12.24

8 WP367594 Foot, Front (2)   (Replaces: 367594) In-Stock Immediately $ 18.46

9 WP356138 Clamp, Hose   (Replaces: 356138) In-Stock Immediately $ 7.67

10 WPW10339879 Tie, Cable   (Replaces: 386566) Special Order $ 7.11

LIT677967 Dishwasher Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 11.07

WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 16.12

LIT385238 Guide, Laundry Appelez-nous -
LIT387930 Sheet, Installation Instructions Appelez-nous -
LIT386895 Guide, Use & Care Appelez-nous -
LIT386198 Label, Energy Guide Appelez-nous -
LIT387901 List, Repair Parts Appelez-nous -
DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 124.07

72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
DD81-03496A Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113) Special Order $ 105.40

978883 Almond (uncut) Appelez-nous -
350941 Leveler (thinner) Appelez-nous -
350938 Paint, Pressurized Spray (12 Oz.) (primer,grey) Appelez-nous -
350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 34.39

261890 Golden Harvest Appelez-nous -
285365 Toast Appelez-nous -
285366 Paint, Spray (13 Oz.) (platinum) Appelez-nous -
261891 Golden Harvest (uncut) Appelez-nous -
285367 Enamal, Toast (1 Qt. Uncut) Appelez-nous -
285368 Platinum (uncut) Appelez-nous -
LIT677813 (belt Drive) Appelez-nous -
LIT677818 Dryer Appelez-nous -
677821 Compactor   (Replaces: LIT677821) Special Order $ 31.51

350956 Paint, Spray 13 Oz. (almond) Special Order $ 46.30


    View Diagram in Separate Window     Print Icon   Print Part List
