SELECT A DIAGRAM

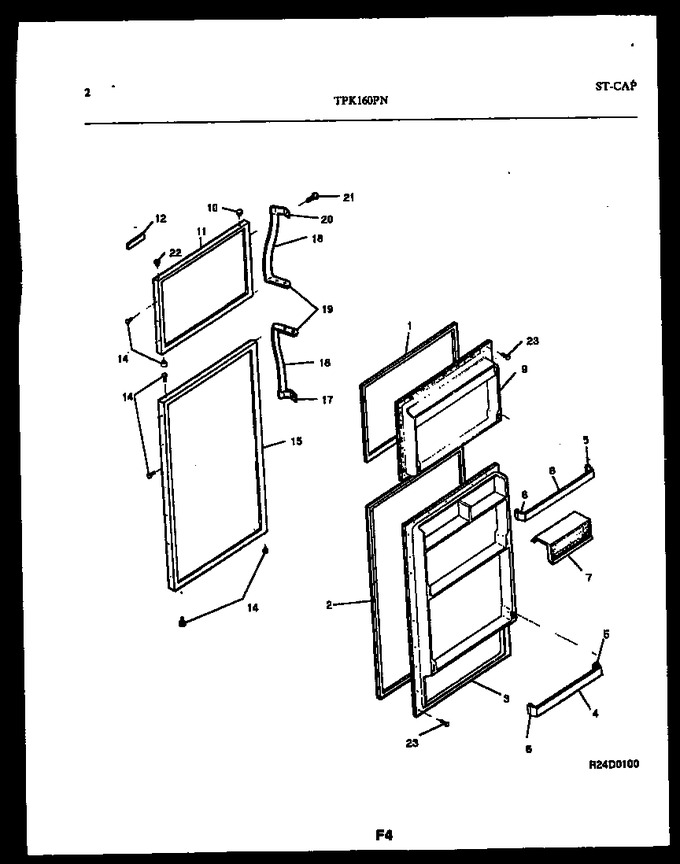

02 - Door Parts
03 - Cabinet Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001399 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 218730603 | Gasket-refr Door, Magnetic (Replaces: 5303001517) |
|
$ 62.07 | |||||
| 3 | 5318359102 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303016153 | Rack-door, (2) |
|
- | |||||
| 5 | 5317828701 | Support-door Rack, Rh, (3) |
|
$ 8.18 | |||||
| 6 | 5317828401 | Support-door Rack, Lh, (3) |
|
$ 11.48 | |||||
| 7 | 5303270443 | Door-dairy |
|
- | |||||
| 8 | 5303016152 | Rack-door |
|
- | |||||
| 9 | 5318358902 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Button Plug, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 3916238 | Panel-frzr Door, White |
|
- | |||||
| 12 | 3205334 | Nameplate-assy |
|
- | |||||
| 14 | 240494001 | Button Plug, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 3916243 | Panel-refr Door, White |
|
- | |||||
| 17 | 5318945101 | Handle, End-bottom |
|
- | |||||
| 18 | 5303201377 | Grip-handle (2) |
|
$ 60.90 | |||||
| 19 | 5318945301 | Handle End, (2) |
|
- | |||||
| 20 | 5318945201 | Handle End-top |
|
- | |||||
| 21 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 22 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 23 | 08002748 | Screw |
|
- | |||||
| *18917 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 18A | 5303200995 | Insert-handle Grip, (2) (non-illustrated) |
|
- |
