SELECT A DIAGRAM
01 - Body
02 - Door

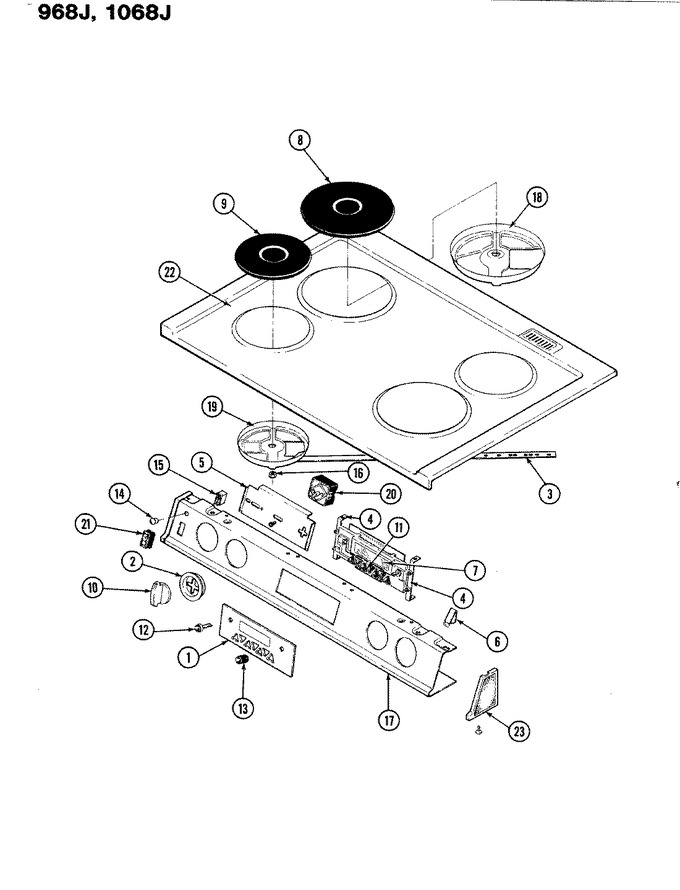

03 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7720P129-60 | Bezel, Clock-black | 01 |
|
- | ||||
| 2 | 7740P006-60 | Bezel, Knob | 01 |
|
- | ||||
| 3 | 3801F100-51 | Bracket | 01 |
|
- | ||||
| 4 | 3801F199-45 | Bracket, Clock Mtg | 01 |
|
- | ||||
| 4 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 5 | WP7101P126-60 | Screw (Replaces: 7101P057-60) | 01 |
|
Immediately | $ 6.85 | |||
| 5 | 3801F197-51 | Bracket, Switch Mounting | 01 |
|
- | ||||
| 6 | WP25-7220 | Clip, Top Retainer (Replaces: 7112P042-60) | 01 |
|
$ 10.77 | ||||
| 7 | 7601P178-60 | Clock, Electronic | 12 |
|
- | ||||
| 7 | 7601P134-60 | Clock | 01 |
|
- | ||||
| 8 | 7406P024-60 | Element, Solid Disc (8``) | 01 |
|
- | ||||
| 9 | 5170P094-60 | Wire Harness | 12 |
|
- | ||||
| 9 | 5170P064-60 | Wire Harness | 01 |
|
- | ||||
| 9 | WP3147131 | Element (6``) (Replaces: 7406P023-60) | 01 |
|
$ 244.76 | ||||
| 9 | 5170P079-60 | Harness, Oven Sensor | 01 |
|
- | ||||
| 10 | 7731P029-60 | Knob, Valve | 01 |
|
- | ||||
| 11 | 7711P445-60 | Button, Control Set | 12 |
|
- | ||||
| 11 | 7711P428-60 | Button, Control Sel (blk) | 01 |
|
- | ||||
| 12 | 7711P433-60 | Button, Clock Set | 01 |
|
- | ||||
| 12 | 7711P446-60 | Knob, Button Clock Set | 12 |
|
- | ||||
| 13 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 01 |
|
$ 12.13 | ||||
| 14 | W11690131 | Lens, Indicator Light (Replaces: 7730P008-60) | 01 |
|
$ 6.73 | ||||
| 15 | 7407P081-60 | Light, Indicator | 01 |
|
- | ||||
| 16 | 7103P075-60 | Nut, Keps | 01 |
|
- | ||||
| 16 | 7103P074-60 | Nut, Surface Element | 01 |
|
- | ||||
| 16 | 7201P041-60 | Pad, Foam Gasket | 01 |
|
- | ||||
| 17 | 7719P008-60 | Plate, Name | 01 |
|
- | ||||
| 17 | 7722P099-60 | Panel, Manifold (blk) | 01 |
|
- | ||||
| 17 | 3608F046-59 | Trim Front Upper | 12 |
|
- | ||||
| 18 | 8004P012-60 | Support, 8`` | 01 |
|
- | ||||
| 19 | 8004P011-60 | Support, 6`` | 01 |
|
- | ||||
| 20 | W11122006 | Switch, Inf. 250v (Replaces: 7403P181-60) | 01 |
|
$ 145.12 | ||||
| 21 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 01 |
|
$ 91.35 | ||||
| 22 | 2002F064-30 | Top, Main | 01 |
|
- | ||||
| 23 | 04000008 | Insert, Trim-manifold End-righ | 01 |
|
- | ||||
| 23 | 04000009 | Insert, Trim-manifold End-righ | 01 |
|
- |
