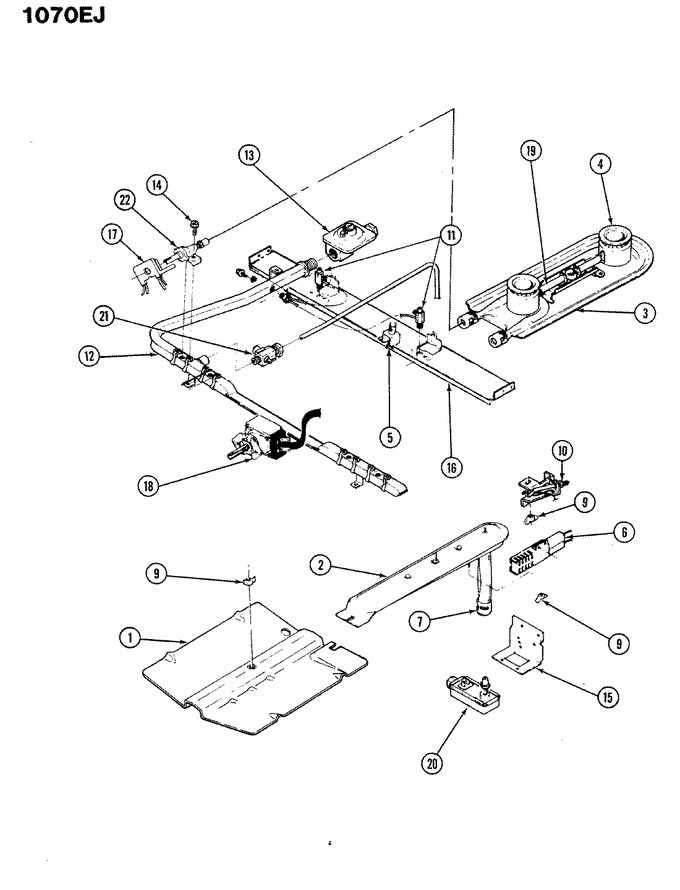

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Control System
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F181-45 | Baffle, Oven Burner | 1 |
|
- | ||||
| 2 | 7505P101-60 | Burner | 1 |
|
- | ||||
| 3 | 3412A004-23 | Uni-burner Assy | 1 |
|
- | ||||
| 4 | 7504P001-60 | Cap, Burner | 1 |
|
- | ||||
| 6 | 7711P137-60 | Knob, Thermostat | 1 |
|
- | ||||
| 7 | 3411F001-34 | Mixer, Air | 1 |
|
- | ||||
| 7 | 7103P070-60 | Nut, Top Pilot | 1 |
|
- | ||||
| 9 | 7103P030-60 | Nut, Wing | 1 |
|
$ 6.37 | ||||
| 10 | 1566267 | Pilot Assy. | 1 |
|
- | ||||
| 11 | 7505P081-60 | Burner, Pilot | 1 |
|
- | ||||
| 12 | 7513P028-60 | Pipe, Manifold | 1 |
|
- | ||||
| 13 | 7510P002-60 | Regulator, Pressure | 1 |
|
- | ||||
| 14 | 7101P043-60 | Screw, Control Valve | 1 |
|
- | ||||
| 15 | 3807F120-34 | Support | 1 |
|
- | ||||
| 16 | 3807F204-34 | Support, Top Pilot | 1 |
|
- | ||||
| 16 | 3807F347-51 | Support, Top Burner | 1 |
|
- | ||||
| 18 | 7515P015-60 | Thermostat Oven | 1 |
|
- | ||||
| 19 | 7506P006-60 | Tube, Flash | 1 |
|
- | ||||
| 19 | 3414F062-44 | Tubing, 3/16`` X 54``----na | 1 |
|
- | ||||
| 19 | 3414F050-44 | Tubing 3/8 X 59 | 1 |
|
- | ||||
| 20 | 7501P061-60 | Valve, Oven | 1 |
|
- | ||||
| 22 | 7502P109-60 | Valve, Top Burner | 1 |
|
- |
