Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303001399 Gasket-frzr Door, Magnetic Appelez-nous -
2 218730603 Gasket-refr Door, Magnetic   (Replaces: 5303001517) Special Order $ 62.07

3 5318560201 Panel-inner Door, Refr Appelez-nous -
4 5303016720 Rack-door, (3) Appelez-nous -
5 5303001410 Support-door Rack, Rh, (3) Appelez-nous -
6 5303001411 Support-door Rack, Lh, (3) Appelez-nous -
7 5316177644 Door-dairy Appelez-nous -
9 5318560101 Panel-inner Door, Frzr Appelez-nous -
10 5308000134 Plug-button, White, Hinge Brg Hole Special Order $ 5.62

11 5303916794 Panel-frzr Door, White Appelez-nous -
12 3001312 Nameplate Assy Appelez-nous -
13 5303212491 Door Stop, Refr Appelez-nous -
14 240494001 Plug-button, White, Handle/dr Stop   (Replaces: 5308000090) In-Stock Immediately $ 18.20

15 5303916823 Panel-refr Door, White Appelez-nous -
17 5303001297 Handle End Special Order $ 70.22

18 3205955 Handle-door, Black Vinyl, Refr/frzr, (2) Appelez-nous -
19 5303001296 Handle End, (2) Special Order $ 86.36

20 5303001295 Handle End Appelez-nous -
22 5308012007 Bearing-hinge Appelez-nous -
58 5308002748 Screw Appelez-nous -
*70490 5303007739 Insulation, Door, Fiberglass, (bulk) Appelez-nous -
13A 5308000255 Door Stop, Frzr (non Illustrated) Special Order $ 42.20

21A 5308011745 Screw Special Order $ 10.38


    View Diagram in Separate Window     Print Icon   Print Part List

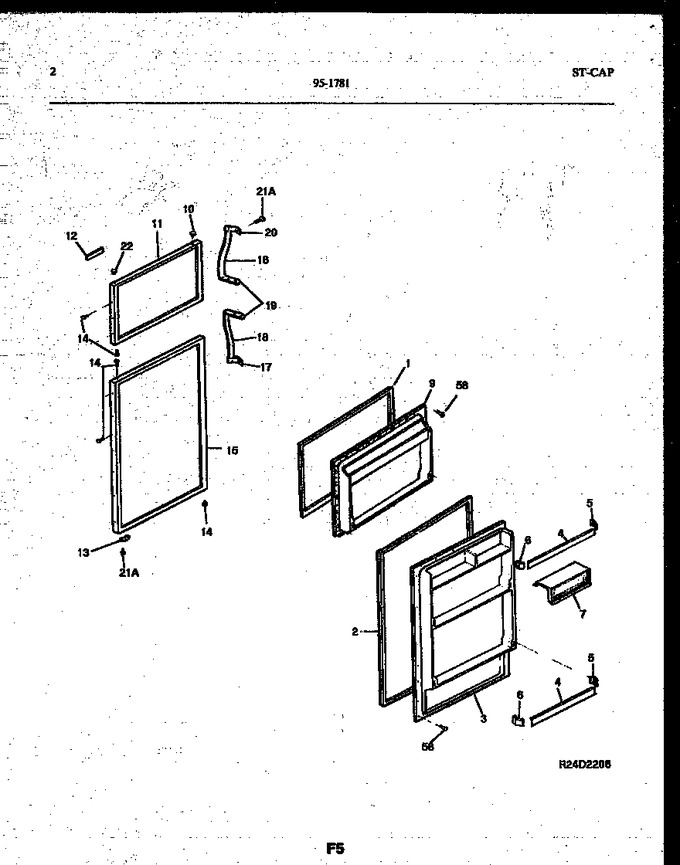

Diagram for 95-1781-00-01
