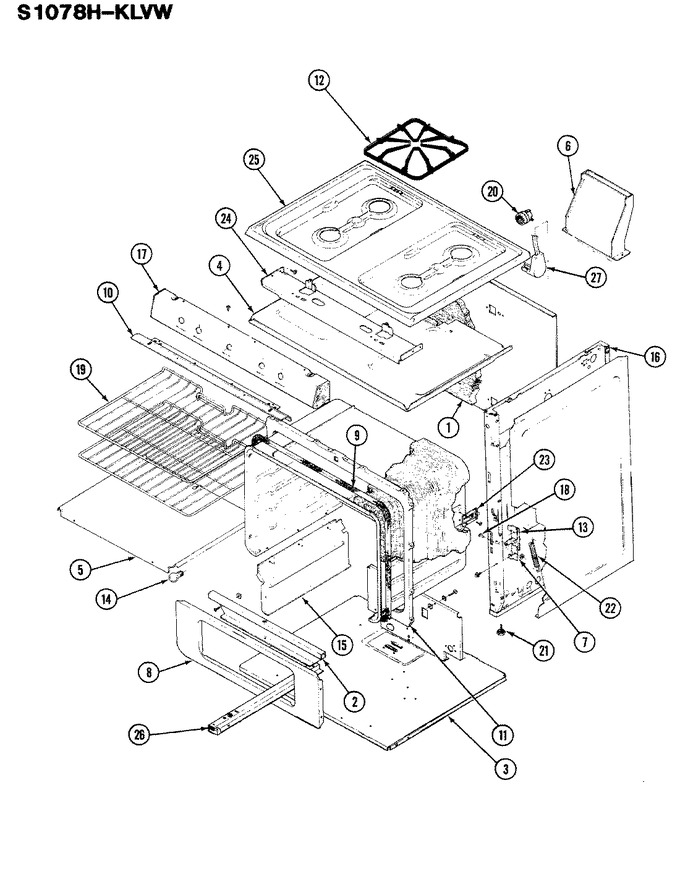

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F078-45 | Back, Broiler | 1-34 |
|
- | ||||
| 1 | 4002F124-45 | Back, Broiler | 35 |
|
- | ||||
| 1 | 4002F094-80 | Back, Main | 1 |
|
- | ||||
| 2 | 3601W124-16 | Baffle, Ovn Front | 1 |
|
- | ||||
| 2 | 7401P013-60 | Block, Disconnect | 1 |
|
- | ||||
| 2 | 7401P006-60 | Block, Disconnect | 1 |
|
- | ||||
| 3 | 4011F149-80 | Bottom, Broiler | 1 |
|
- | ||||
| 4 | 4011F095-80 | Bottom, Burner Box | 1 |
|
- | ||||
| 5 | 2205F012-16 | Bottom, Oven | 1 |
|
- | ||||
| 6 | 3801F113-51 | Bracket, Clock Mtg | 1 |
|
- | ||||
| 6 | 3801F049-34 | Bracket,control Panel (l) | 1 |
|
- | ||||
| 6 | 3801F047-34 | Bracket,control Panel (r) | 1 |
|
- | ||||
| 6 | 4006W026-80 | Box, Flue | 1 |
|
- | ||||
| 6 | 3801F101-80 | Bracket, Tie Down | 1 |
|
- | ||||
| 7 | 7706P009-60 | Filler, Strip | 1 |
|
- | ||||
| 7 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 7 | 7602P051-60 | Clock | 1 |
|
- | ||||
| 7 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 8 | 2201F034-23 | Front, Oven Lower | 1 |
|
- | ||||
| 9 | 7212P001-60 | Seal | 1 |
|
- | ||||
| 10 | 4012F019-20 | Front, Burner Box | 1 |
|
- | ||||
| 11 | 2201F060-23 | Front, Oven Upper | 1 |
|
- | ||||
| 12 | 2003W001-00 | Grate | 1 |
|
- | ||||
| 12 | 7706P170-60 | Hinge, Main Top | 1 |
|
- | ||||
| 13 | WP7711P135-60 | Knob, Valve (Replaces: 7733P038-60) | 34 |
|
$ 25.06 | ||||
| 13 | 3418A029-34 | Hinge Assy. (lt) | 1 |
|
$ 48.47 | ||||
| 13 | 3413F002-23 | Insert, Broil Pan | 1 |
|
- | ||||
| 13 | 7711P173-60 | Knob, Valve | 1-33 |
|
- | ||||
| 13 | 7711P185-60 | Knob, Therm | 1-33 |
|
- | ||||
| 13 | WP7731P018-60 | Knob, Thermostat (Replaces: 7731P018-60) | 34 |
|
$ 25.14 | ||||
| 13 | 4001F016-23 | Housing, Lamp | 1 |
|
- | ||||
| 13 | 3418A030-34 | Hinge Assy. (rt) | 1 |
|
- | ||||
| 14 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 15 | 4009F045-45 | Lining, Broiler Side | 1 |
|
- | ||||
| 16 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 1 |
|
Immediately | $ 52.04 | |||
| 16 | 4009W028-80 | Lining Assy, Inner Side | 1 |
|
- | ||||
| 17 | 7712A023-60 | Trim Assy, Manifold | 1 |
|
- | ||||
| 17 | 2618F045-80 | Panel, Side Angle | 1 |
|
- | ||||
| 18 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 18 | 7719P021-60 | Plate, Name | 1 |
|
- | ||||
| 19 | 7801P030-60 | Rack, Oven | 1 |
|
$ 57.14 | ||||
| 20 | 7408P002-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 21 | 7101P255-60 | Screw, Leveling | 1 |
|
- | ||||
| 22 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 23 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 24 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 1 |
|
$ 91.35 | ||||
| 24 | 3807F221-80 | Support, Top Burner | 1 |
|
- | ||||
| 25 | 2001F065-30 | Top, Main Stainless | 1 |
|
- | ||||
| 26 | 3404A014-51 | Track, Broiler Dwr Left | 1 |
|
- | ||||
| 26 | 3404A013-51 | Track, Broiler Dwr Right | 1 |
|
- | ||||
| 26 | 7724P013-60 | Trim, Vent Cover | 1 |
|
- | ||||
| 27 | 7402P014-60 | Cord, Power | 1 |
|
- |
