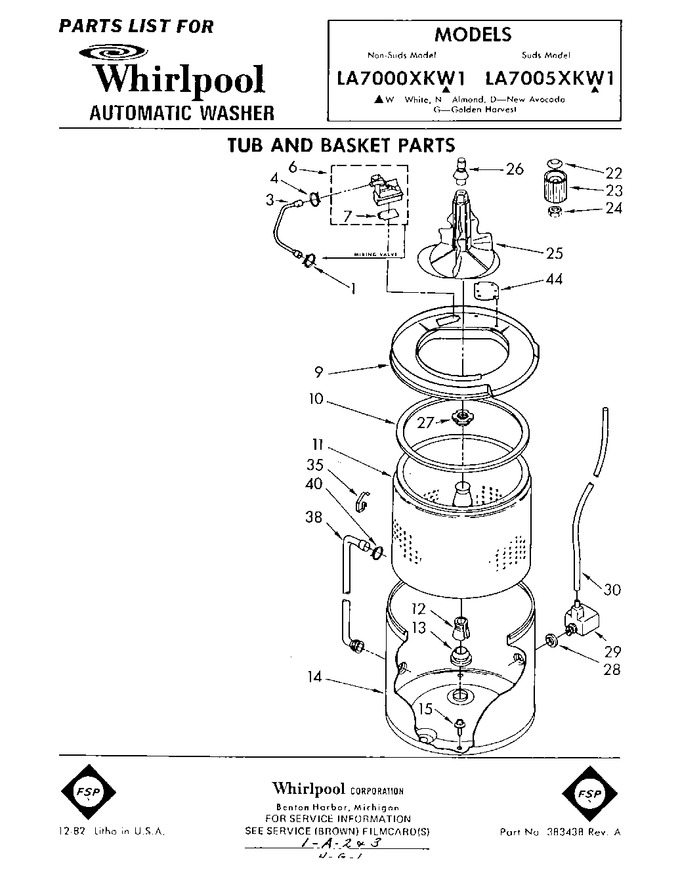

01 - Tub And Basket


02 - Top And Console


03 - Drive


04 - Water Pump


05 - Cabinet


06 - Water System


07 - Gearcase


08 - Basket Drive And Brake


09 - Miscellaneous , Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP596669		Clamp, Hose   (Replaces: 272846)			Immediately	$ 7.56
3	356349		Hose, Water Inlet		Appelez-nous	-
4	WP596669		Clamp, Hose   (Replaces: 272847)			Immediately	$ 7.56
6	366072		Inlet, Water		Appelez-nous	-
7	355584		Flapper		Appelez-nous	-
9	381971		Ring, Tub		Appelez-nous	-
10	383553		Seal, Tub Ring		Appelez-nous	-
11	359705		Basket		Appelez-nous	-
12	WP389140		Block, Drive   (Replaces: 357782)			Immediately	$ 24.74
13	W10814296		Gasket, Centerpost   (Replaces: 96690)			Immediately	$ 8.26
14	359668		Tub		Appelez-nous	-
15	WP358237		Screw & Washer, Tub (4)   (Replaces: 370571)			Immediately	$ 7.97
22	358773		Insert, Agitator Cap		Appelez-nous	-
23	356863		Cap, Agitator		Appelez-nous	-
24	357732		Nut, Lock		Appelez-nous	-
25	358370		Agitator Assembly		Appelez-nous	-
26	369516		Stud & Washer Assembly		Appelez-nous	-
27	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 8.00
28	351830		Seal				$ 5.84
29	360804		Air Dome Assembly		Appelez-nous	-
30	WP353244		Hose, Pressure Switch   (Replaces: 353406)			Immediately	$ 53.94
35	359763		Clip, Tub Ring (4)		Appelez-nous	-
38	352978		Hose, Dispenser		Appelez-nous	-
40	WP596669		Clamp, Hose   (Replaces: 287859)			Immediately	$ 7.56
44	355852		Plate, Snubber		Appelez-nous	-
