SELECT A DIAGRAM
01 - Burner Box
02 - Top Assembly
New Model Search:

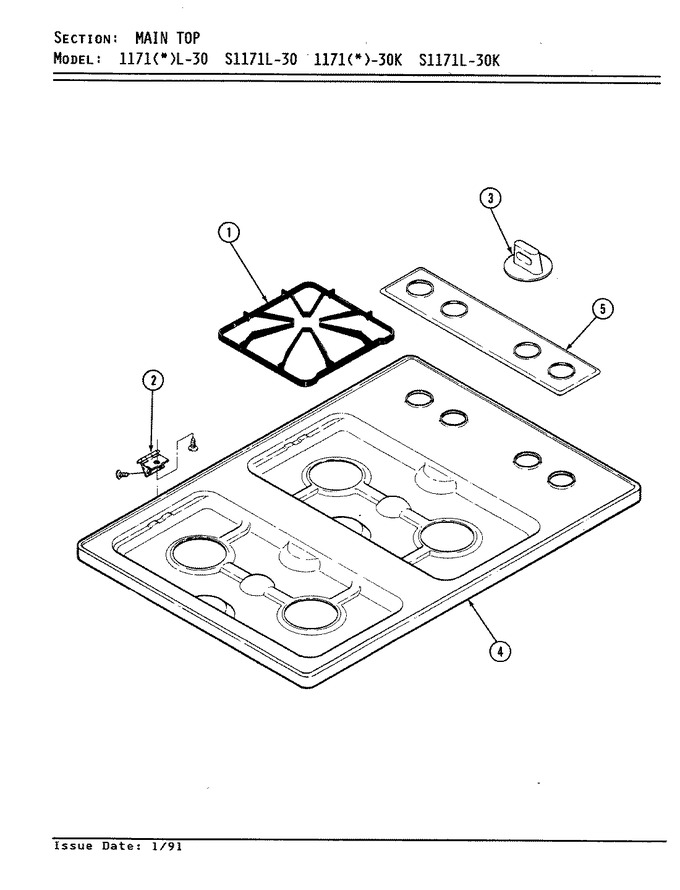

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2003W001-00 | Grate | 1 |
|
- | ||||
| 2 | 7106P017-60 | Hinge, Top | 1 |
|
- | ||||
| 2 | 7103P110-60 | Nut, Pal | 1 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P261-60) | 1 |
|
Immediately | $ 6.85 | |||
| 3 | 7733P045-60 | Knob, Burner (black) | 1 |
|
$ 16.33 | ||||
| 4 | 2001W076-30 | Top, Main (stls) | 1 |
|
- | ||||
| 5 | 7720P146-60 | Panel, Control (blk) | 1 |
|
- | ||||
| 5 | 7719P008-60 | Plate, Name | 1 |
|
- |
