01 - Body

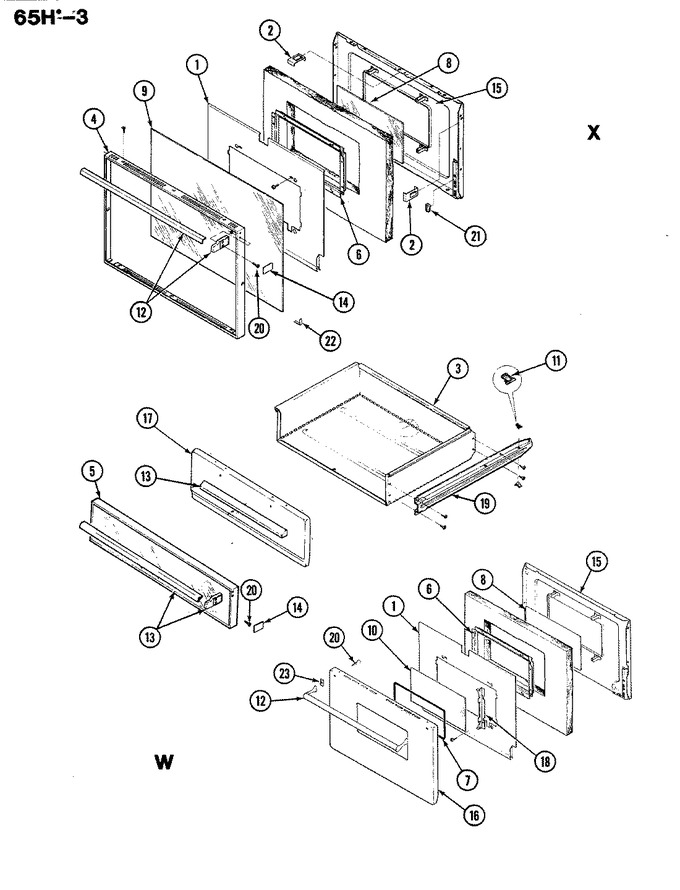

02 - Door/drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F094-51 | Baffle, Oven Door | 01 |
|
- | ||||
| 2 | 7112P034-60 | Clip, Door | 01 |
|
- | ||||
| 3 | 3405F008-80 | Drawer, Service | 01 |
|
- | ||||
| 4 | 7706P243-60 | Frame, Door | 01 |
|
- | ||||
| 5 | W10124350 | Not Required Part Or See Note Frame, Drawer (incl W/panel) | 01 |
|
- | ||||
| 6 | 3603F013-80 | Frame, Window----na | 01 |
|
- | ||||
| 8 | 7902P035-60 | Glass, Door Inner | 01 |
|
- | ||||
| 9 | 7902P274-60 | Glass, Door | 01 |
|
- | ||||
| 11 | 8016P005-60 | Glide, Front | 01 |
|
- | ||||
| 11 | 8016P004-60 | Glide, Drawer | 01 |
|
- | ||||
| 12 | 7701P047-60 | Handle, Door | 01 |
|
- | ||||
| 13 | 7701P047-60 | Handle, Door | 01 |
|
- | ||||
| 14 | 7728P012-60 | Insert, Oven Door Handle | 01 |
|
- | ||||
| 15 | 2402W154-19 | Lining, Oven Door | 05 |
|
- | ||||
| 15 | 2402W091-23 | Lining Assy, Ov Dr | 01 |
|
- | ||||
| 17 | 5425A021-70K | Drawer, Service | 01 |
|
- | ||||
| 19 | 3406F025-51 | Runner,outer | 01 |
|
- | ||||
| 19 | 3406F020-80 | Runner, Inner | 01 |
|
- | ||||
| 20 | 7101P123-60 | Screw | 01 |
|
- | ||||
| 21 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 22 | 8010P045-60 | Spacer, Glass Corner | 01 |
|
- |
