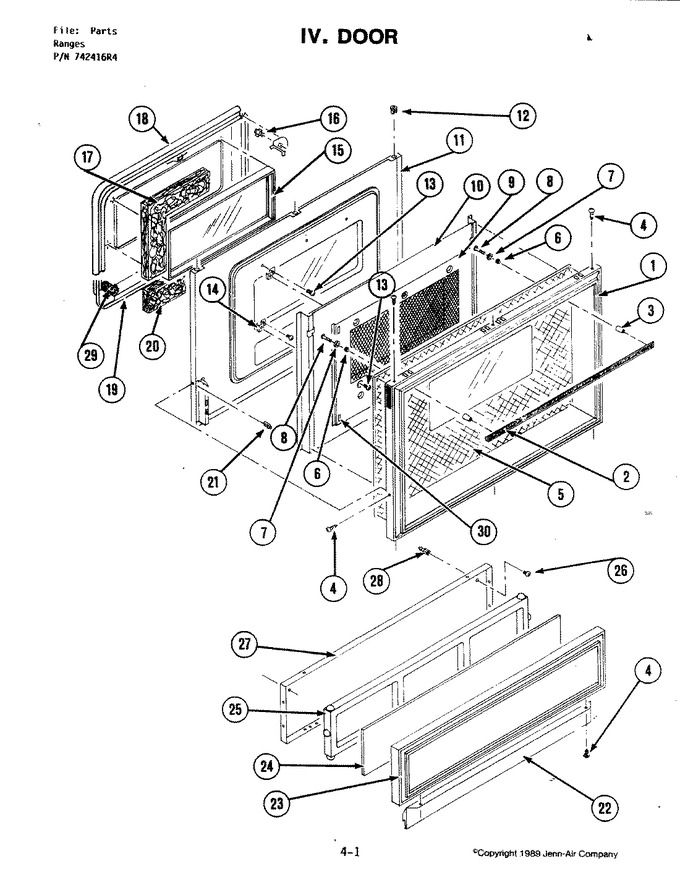

01 - Basic Body Assembly (s120-c)


02 - Blower Assembly


03 - Control Panel Assembly (s120-c)


04 - Cooling Fan (s120-c)


05 - Door (s120-c)


06 - Internal Controls


07 - Internal Controls (s120-c)


08 - Oven


09 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	703780		Frame, Oven Door	1	Appelez-nous	-
2	Y703429		Handle, Door	1	Appelez-nous	-
3	Y703430		Pad, Mounting	1	Appelez-nous	-
4	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
5	Y703774		Glass, Screened (blk)	1	Appelez-nous	-
6	Y703433		Bushing	1	Appelez-nous	-
7	Y700446		Washer	1			$ 5.27
8	W10124350		Not Required Part Or See Note Locktite	1	Appelez-nous	-
8	Y703431		Palnut	1	Appelez-nous	-
9	DE81-09358A		Panel, Perforated (upr)   (Replaces: 703784)	1			$ 54.82
10	703782		Baffle	1	Appelez-nous	-
11	702189		Liner, Oven Door Weld	1	Appelez-nous	-
12	702657		Nut, Push-in	1	Appelez-nous	-
13	W11233072		Screw   (Replaces: Y708733)	1		Immediately	$ 12.62
14	701652		Bracket, Stand-off	1	Appelez-nous	-
15	703804		Pack, Window	1	Appelez-nous	-
16	Y700503		Clip, Retainer	1	Appelez-nous	-
17	702293		Insulation	1	Appelez-nous	-
18	WPY702338		Seal, Oven Door   (Replaces: Y702338)	1		Immediately	$ 172.53
19	712011		Plug, Oven Door Weld	1	Appelez-nous	-
20	702292		Insulation, Bottom	1	Appelez-nous	-
21	Y700834		Clip	1	Appelez-nous	-
22	Y702744		Panel, Kick	1	Appelez-nous	-
23	DE81-07204A		Frame,door   (Replaces: 703434)	1			$ 494.35
24	703435		Panel, Base	1	Appelez-nous	-
25	Y702896		Spacer, Base Door	1	Appelez-nous	-
26	71002058		Screw   (Replaces: Y702124)	1			$ 5.82
27	Y702341		Liner, Door	1	Appelez-nous	-
28	Y702633		Stud, Ball	1	Appelez-nous	-
29	702279		Insulation-top & Sides	1	Appelez-nous	-
30	Y712010		Plate, Latch (upper)	1	Appelez-nous	-
30	W10840861		Pad, Spacer   (Replaces: Y702688)	1			$ 8.89
30	715938		Pad, Spacer	1	Appelez-nous	-
30	WP210720		Rivet   (Replaces: Y708088)	1			$ 12.14
