SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts

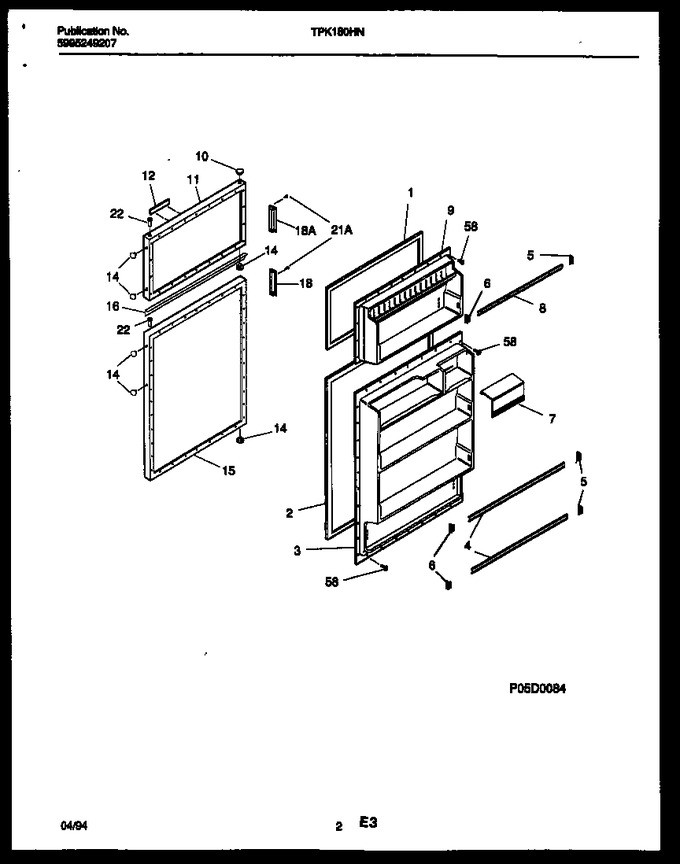

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001486		Gasket-frzr Door, Magnetic		Appelez-nous	-
2	5308015544		Gasket-refr Door, Magnetic		Appelez-nous	-
3	5318350701		Panel-inner Door, Refr		Appelez-nous	-
4	5303273198		Rack-door, Refr Section, (2)		Appelez-nous	-
5	5317828701		Support-door Rack, Rh				$ 8.18
6	5317828401		Support-door Rack, Lh				$ 11.48
7	5303273191		Door-dairy		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
8	5303273197		Rack-door, Frzr Section		Appelez-nous	-
9	5318350601		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000176		Plug-button, Wheat, Hinge Brg Hole		Appelez-nous	-
11	5303916879		Panel-frzr Door, Wheat		Appelez-nous	-
12	5303273164		Nameplate Assy		Appelez-nous	-
14	5308000180		Plug-button, Wheat, Handle/dr Stop		Appelez-nous	-
15	5303916884		Panel-refr Door, Wheat		Appelez-nous	-
16	5318755102		Trim-door		Appelez-nous	-
18	5303274256		Handle-door, Chrome/black		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*44954	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
18A	5303274255		Handle-door, Chrome/black		Appelez-nous	-
21A	5308011745		Screw				$ 10.38

    View Diagram in Separate Window       Print Part List
