SELECT A DIAGRAM

Diagram for 02 - Door Parts
02 - Door Parts

Diagram for 03 - Cabinet Parts
03 - Cabinet Parts

Diagram for 04 - Cabinet Parts
04 - Cabinet Parts

Diagram for 05 - Shelves And Supports
05 - Shelves And Supports

Diagram for 06 - Shelves And Supports
06 - Shelves And Supports

Diagram for 07 - System And Automatic Defrost Parts
07 - System And Automatic Defrost Parts

Diagram for 08 - System And Automatic Defrost Parts
08 - System And Automatic Defrost Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
20 5303001339 Label-control Box Appelez-nous -
21 5303200810 Control-temperature Special Order $ 126.87

22 5303916855 Sleeve-plastic Tube Special Order $ 60.96

23 215846602 Timer   (Replaces: 5300187484) In-Stock Immediately $ 28.20

24 5303283741 Shelf-sliding, Refr, (3) Appelez-nous -
25 5349001601 Cover-crisper Pan Appelez-nous -
26 5303001522 Pan-crisper, (2) Appelez-nous -
27 5303205987 Support-crisper Cvr, Adjustable Special Order $ 48.41

28 3201150 Cap-protector Special Order $ 4.57

30 5308000263 Cover-meat Pan Appelez-nous -
31 3001524 Pan Meat Appelez-nous -
59 5308012258 Screw Special Order $ 2.25

81 5304455650 Screw   (Replaces: 5308016566) Special Order $ 14.18

21A 5303001260 Screw Special Order $ 6.73

23A 5304455649 Screw   (Replaces: 5303001259) Special Order $ 17.01


    View Diagram in Separate Window     Print Icon   Print Part List

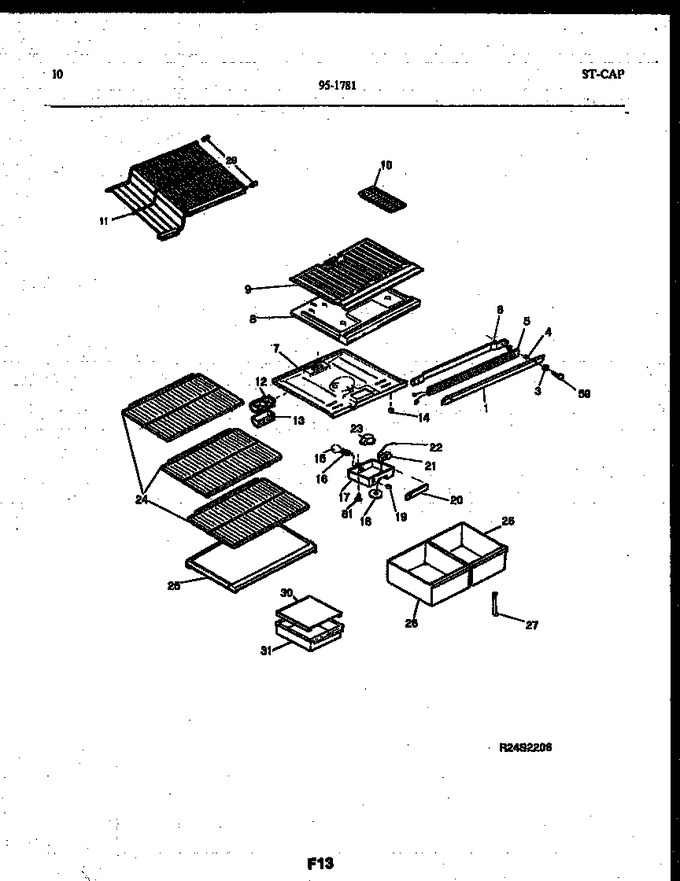

Diagram for 95-1781-66-01
