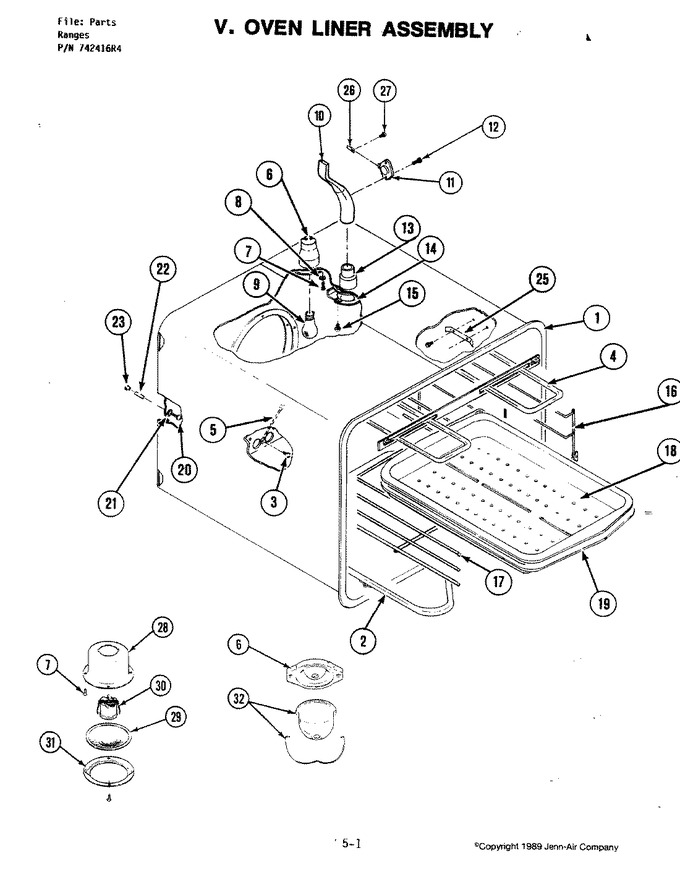

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 712012 | Weld, Oven Assy. | 1 |
|
- | ||||
| 2 | WPY04100019 | Element, Bake (240v) (Replaces: Y702550) | 1 |
|
$ 116.29 | ||||
| 3 | WP179051 | Screw (Replaces: 708764) | 1 |
|
Immediately | $ 7.16 | |||
| 4 | WPY04100015 | Element, Broil 240v (Replaces: Y702551) | 1 |
|
$ 137.82 | ||||
| 5 | 702643 | Wire, Ground | 1 |
|
- | ||||
| 6 | 715281 | Receptacle, Light | 1 |
|
- | ||||
| 7 | 715485 | Screw | 1 |
|
- | ||||
| 8 | 701736 | Washer | 1 |
|
- | ||||
| 9 | 40A15 | Bulb, Oven Light (Replaces: 771133) | 1 |
|
Immediately | $ 1.98 | |||
| 10 | 702730 | Tube, Vent | 1 |
|
- | ||||
| 11 | Y702107 | Limit, Oven | 1 |
|
- | ||||
| 12 | WP355214 | Screw (Replaces: Y700725) | 1 |
|
Immediately | $ 7.26 | |||
| 13 | 701738 | Tube, Vent | 1 |
|
- | ||||
| 14 | Y702632 | Shield, Vent | 1 |
|
- | ||||
| 15 | WPY706189 | Screw (Replaces: 700906) | 1 |
|
Immediately | $ 6.47 | |||
| 16 | 702701 | Support, Rack | 1 |
|
- | ||||
| 17 | Y702339 | Rack, Oven | 1 |
|
- | ||||
| 18 | 4396923 | Pan, Broil (Replaces: 708810) | 1 |
|
Immediately | $ 52.04 | |||
| 19 | 4396923 | Rack, Broil Pan (Replaces: Y708811) | 1 |
|
Immediately | $ 52.04 | |||
| 20 | 701744 | Screw | 1 |
|
- | ||||
| 21 | 701736 | Washer | 1 |
|
- | ||||
| 22 | 701741 | Spacer, Oven | 1 |
|
- | ||||
| 23 | 715294 | Nut, Tee | 1 |
|
- | ||||
| 24 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 25 | Y702618 | Clip, Oven | 1 |
|
- | ||||
| 25 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.14 | ||||
| 25 | Y701745 | Clip, Bulb | 1 |
|
- | ||||
| 25 | 702283 | Insulation-back | 1 |
|
- | ||||
| 25 | 702282 | Insulation-sides,top,bottom | 1 |
|
- | ||||
| 26 | W10124350 | Not Required Part Or See Note Terminal | 1 |
|
- | ||||
| 27 | W10124350 | Not Required Part Or See Note Screw | 1 |
|
- | ||||
| 28 | W10124350 | Not Required Part Or See Note Holder, Receptacle | 1 |
|
- | ||||
| 29 | W10124350 | Not Required Part Or See Note Lens, Oven Light | 1 |
|
- | ||||
| 30 | W10124350 | Not Required Part Or See Note Receptacle, Snap-in | 1 |
|
- | ||||
| 31 | W10124350 | Not Required Part Or See Note Retainer, Lens | 1 |
|
- |
