SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts

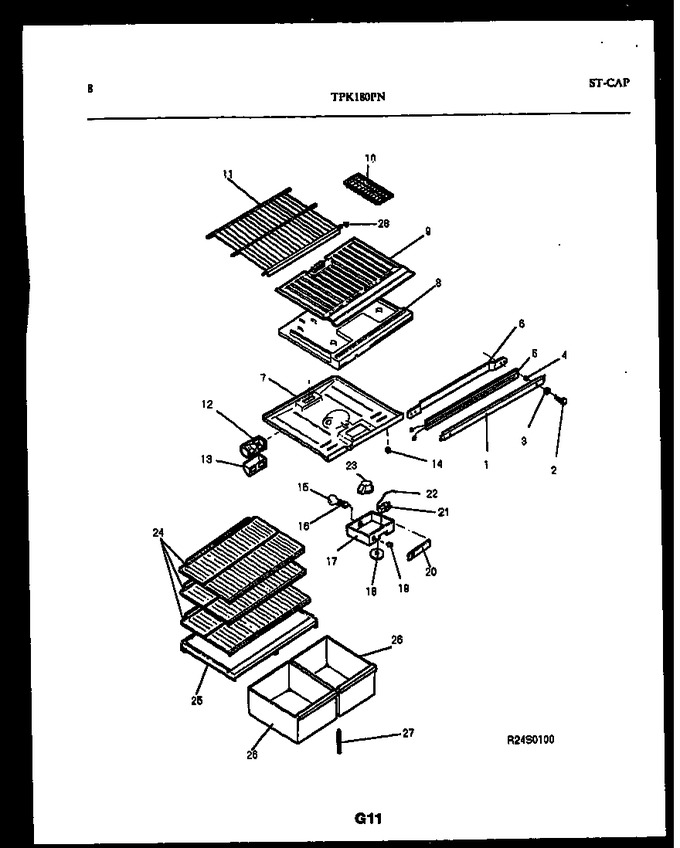

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200368		Mullion, Harvest Wheat		Appelez-nous	-
2	5308012258		Screw				$ 2.25
3	5303206754		Washer, No. 10 Steel, 7/32 X 7/16 Od		Appelez-nous	-
4	5303200464		Spacer-mullion Mtg		Appelez-nous	-
5	5303210351		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	5303016367		Top Panel-refr, W/snap Bushing		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
7	5303212518		Bushing-snap (non-illustrated)		Appelez-nous	-
8	3001383		Wiring Harness, Control/divider (non-illustrated)		Appelez-nous	-
8	5303001504		Divider, Styrofoam		Appelez-nous	-
9	5303211427		Bottom Panel, Freezer		Appelez-nous	-
10	5315637618		Tray-ice, Plastic		Appelez-nous	-
11	5303270508		Shelf-freezer		Appelez-nous	-
12	5308000071		Deflector-air		Appelez-nous	-
13	5303001546		Cover - Air Deflector		Appelez-nous	-
14	5309918806		Switch, Light			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp		Appelez-nous	-
16	5308000129		Socket-light				$ 62.16
17	5303015152		Box-control		Appelez-nous	-
17	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
18	5308010011		Knob - Cold Control		Appelez-nous	-
19	5303001670		Switch-energy Saver		Appelez-nous	-
20	5303270603		Label-control Box		Appelez-nous	-
21	5303200810		Control-temperature				$ 126.87
21	5303001260		Screw				$ 6.73
22	5303916855		Sleeve-plastic Tube				$ 60.96
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23	5303007400		Timer		Appelez-nous	-
24	5303270472		Shelf-full, Sliding, Refr		Appelez-nous	-
25	3015045		Cover-crisper		Appelez-nous	-
26	3015422		Pan-crisper (2)		Appelez-nous	-
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		Cap Protector (2)				$ 4.57

    View Diagram in Separate Window       Print Part List
