SELECT A DIAGRAM

01 - Access Panel


02 - Blower Motor


03 - Blower Motor (cooling)


04 - Body


05 - Control Panel


06 - Internal Controls


07 - Liner


08 - Top Assembly

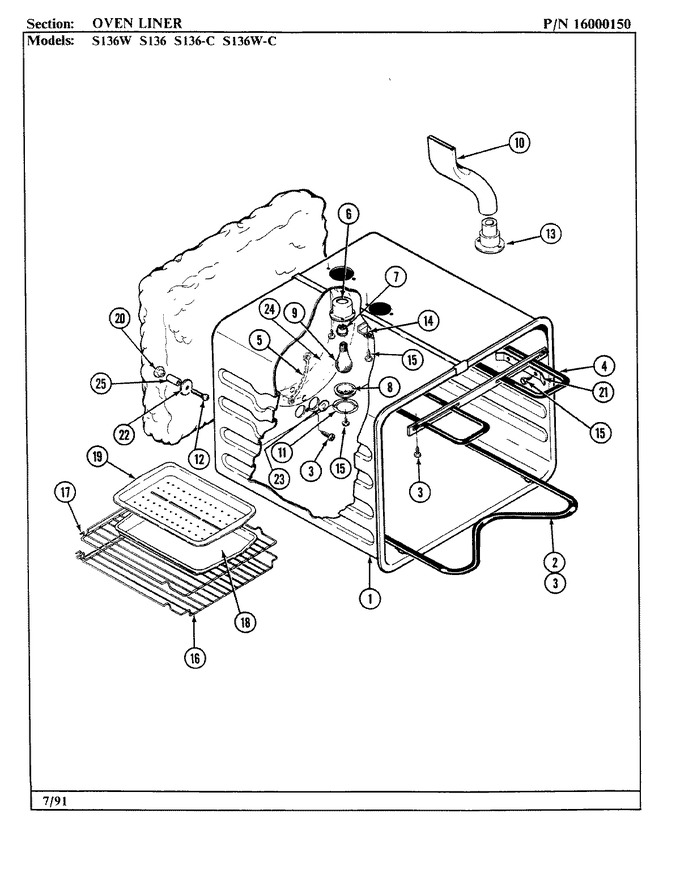

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	712584		Liner	1	Appelez-nous	-
1	71001403		Washer, Alum	17	Appelez-nous	-
1	WP7101P434-60		Screw   (Replaces: 71001394)	17			$ 6.26
2	WPY04100021		Element, Bake (240v)   (Replaces: Y704664)	1			$ 179.82
3	WP179051		Screw   (Replaces: 708764)	1		Immediately	$ 7.16
4	WPY04100514		Element, Broil (240v)   (Replaces: Y704666)	1			$ 138.97
5	702643		Wire, Ground	1	Appelez-nous	-
6	704142		Receptacle, Holder	1	Appelez-nous	-
7	Y704145		Receptacle, Snap-in	1	Appelez-nous	-
8	Y704143		Lens, Light	1	Appelez-nous	-
9	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	1		Immediately	$ 16.80
11	Y704144		Retainer, Lens	1	Appelez-nous	-
12	705170		Screw	1	Appelez-nous	-
13	701738		Tube, Vent	1	Appelez-nous	-
14	Y702632		Shield, Vent	1	Appelez-nous	-
15	WP1163283		Screw   (Replaces: Y703741)	1			$ 6.47
16	Y704662		Rack, Oven (offset)	1	Appelez-nous	-
17	Y704660		Rack, Oven	1			$ 104.03
18	4396923		Pan, Broil   (Replaces: 703164)	1		Immediately	$ 52.04
19	4396923		Insert, Broil Pan   (Replaces: 703165)	1		Immediately	$ 52.04
20	715294		Nut, Tee	1	Appelez-nous	-
21	Y701541		Clip, Bulb	1	Appelez-nous	-
21	702283		Insulation-back	1	Appelez-nous	-
21	702282		Insulation-sides,top,bottom	1	Appelez-nous	-
22	701736		Washer	1	Appelez-nous	-
23	702593		Washer	1	Appelez-nous	-
24	WP74003976		Washer   (Replaces: 702592)	11			$ 6.47
24	WP7101P434-60		Screw   (Replaces: 71001394)	11			$ 6.26
24	71001395		Screw	11	Appelez-nous	-
24	705343		Plate, Non-convect	1	Appelez-nous	-
25	702745		Spacer	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
