Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP596669 Clamp, Hose   (Replaces: 353366) In-Stock Immediately $ 7.56

2 WP596669 Clamp, Hose   (Replaces: 353367) In-Stock Immediately $ 7.56

3 356349 Hose, Water Inlet Appelez-nous -
4 359763 Clip, Tub Ring (4) Appelez-nous -
5 366072 Inlet, Water Appelez-nous -
6 355584 Flapper Appelez-nous -
8 381971 Ring, Tub (includes Illus. 28) Appelez-nous -
9 383553 Seal, Tub Ring Appelez-nous -
10 384024 Basket Appelez-nous -
11 WP389140 Block, Drive   (Replaces: 357782) In-Stock Immediately $ 24.74

12 W10814296 Gasket, Centerpost   (Replaces: 96690) In-Stock Immediately $ 8.26

13 359668 Tub Appelez-nous -
14 WP358237 Screw & Washer, Tub (4)   (Replaces: 370571) In-Stock Immediately $ 7.97

16 358431 Agitator Cap Assembly Appelez-nous -
17 383951 Agitator & Insert Appelez-nous -
18 WP21366 Locknut   (Replaces: 21366) In-Stock Immediately $ 8.00

19 WP353244 Hose, Pressure Switch   (Replaces: 353406) In-Stock Immediately $ 53.94

20 351830 Seal, Air Dome Special Order $ 5.84

21 360804 Air Dome Assembly Appelez-nous -
22 93553 Hose, Tub Outlet Appelez-nous -
23 9421321 Clamp, Hose Appelez-nous -
24 84091 Manifold Assembly Appelez-nous -
25 DE81-06164A Nut, Spanner   (Replaces: 92229) Special Order $ 125.78

26 DE81-03541A Washer, Fiber   (Replaces: 92232) Special Order $ 107.38

27 DE81-04739A Washer, Rubber   (Replaces: 92235) Special Order $ 74.11

28 355852 Plate, Snubber Appelez-nous -
36 DE81-06162A Hose, Pump To Manifold   (Replaces: 92231) Special Order $ 78.75

38 WP285655 Clamp, Hose   (Replaces: 272858) In-Stock Immediately $ 7.55

39 352978 Hose, Bleach Dispenser Appelez-nous -
40 358440 Stud & Seal, Agitator Appelez-nous -
49 353096 Clamp, Hose Appelez-nous -
50 368772 Filter Appelez-nous -
51 359798 Hose, Filter Drain (upper) Appelez-nous -
52 357052 Hose, Filter Drain (lower) Appelez-nous -
53 350365 Pump (complete) (refer To Page 5 For Further Breakdown)   (Replaces: 358036) In-Stock Immediately $ 116.12

54 359630 Pulley, Pump Appelez-nous -
55 386011 Screw, 5/16-18 X 7/8 Pump To Gearcase (2) Appelez-nous -
56 WP596669 Clamp, Hose   (Replaces: 287859) In-Stock Immediately $ 7.56


    View Diagram in Separate Window     Print Icon   Print Part List

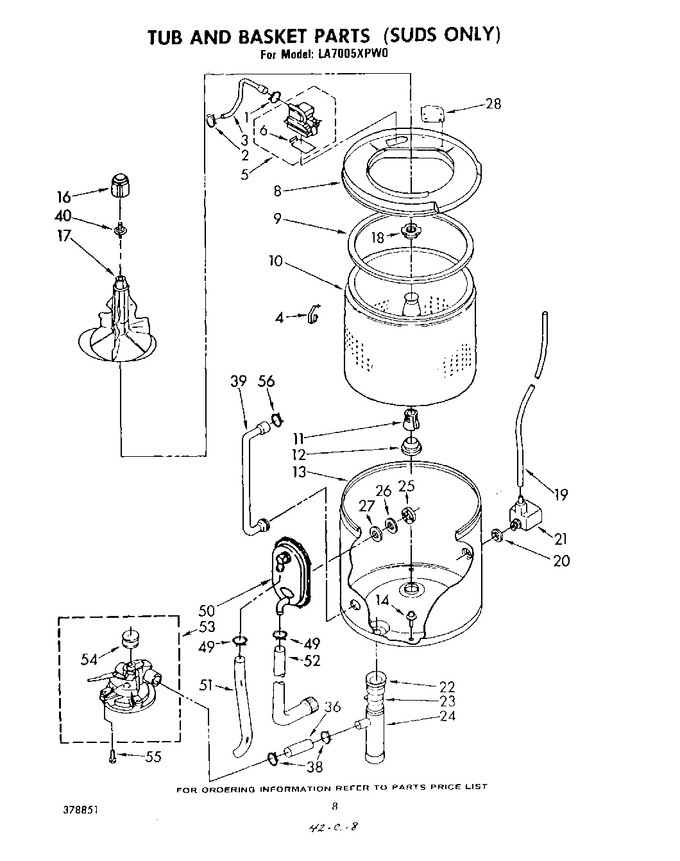

Diagram for LA7005XPW0
