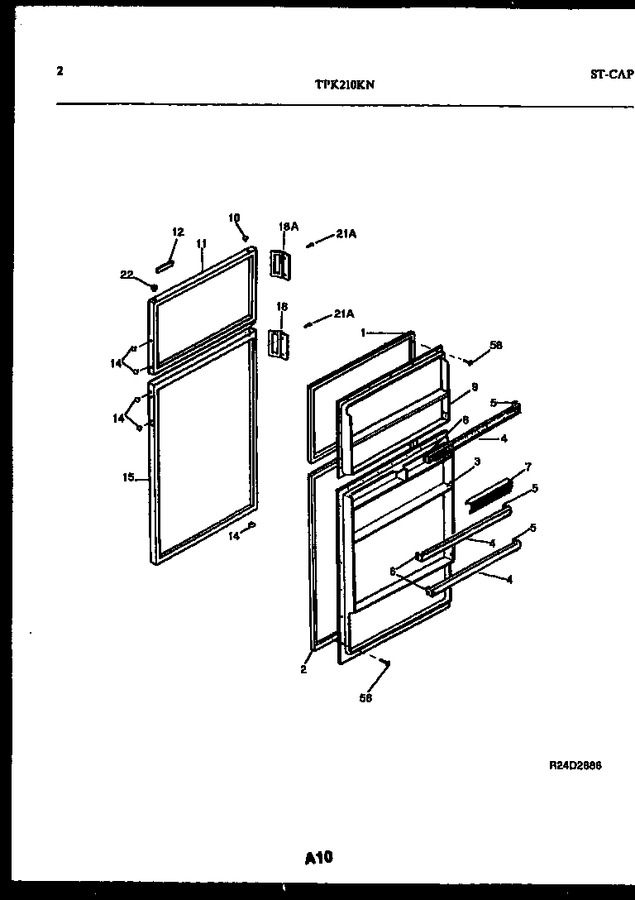

02 - Door Parts
03 - Cabinet Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308016617 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5308015544 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5318540901 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303016720 | Rack-door, (4) |
|
- | |||||
| 5 | 5303001410 | Support-door Rack, Rh, (4) |
|
- | |||||
| 6 | 5303001411 | Support-door Rack, Lh, (4) |
|
- | |||||
| 7 | 5303289934 | Door-dairy |
|
- | |||||
| 9 | 5318540801 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303916907 | Panel-frzr Door, Almond |
|
- | |||||
| 12 | 5303273164 | Nameplate Assy |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 3916587 | Panel-refr Door, Almond |
|
- | |||||
| 18 | 5303273080 | Handle-door, Almond |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *27484 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 18A | 5303273082 | Handle-door, Almond |
|
- | |||||
| 21A | 5308011745 | Screw |
|
