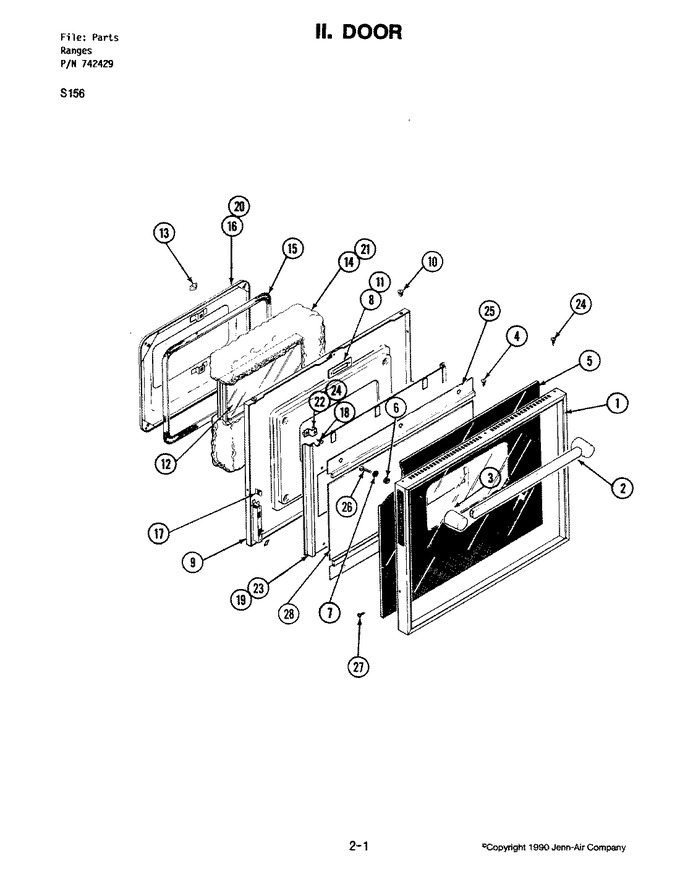

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Access Panel
02 - Blower Motor
03 - Blower Motor
04 - Blower Motor (convection)
05 - Body
06 - Control Panel
07 - Door
08 - Internal Controls
09 - Oven
10 - Top
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 705003 | Frame, Oven Door (blk) | 1 |
|
- | ||||
| 2 | 704226 | Handle (blk) | 1 |
|
- | ||||
| 3 | Y704224 | End Cap (blk) | 1 |
|
- | ||||
| 4 | WPY706189 | Screw (blk) (Replaces: Y704238) | 1 |
|
Immediately | $ 6.47 | |||
| 5 | 705074K | Glass, Screened (black) | 1 |
|
- | ||||
| 6 | 715939 | Bushing | 1 |
|
- | ||||
| 7 | Y700446 | Washer | 1 |
|
$ 5.27 | ||||
| 8 | Y712010 | Plate, Latch (upper) | 1 |
|
- | ||||
| 9 | 712567 | Liner | 1 |
|
- | ||||
| 10 | 701643 | Nut, Push In | 1 |
|
- | ||||
| 11 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.14 | ||||
| 12 | 701648 | Window Pack | 1 |
|
- | ||||
| 13 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 14 | 702293 | Insulation | 1 |
|
- | ||||
| 15 | WPY702338 | Seal, Oven Door (Replaces: Y702338) | 1 |
|
Immediately | $ 172.53 | |||
| 16 | 712011 | Plug, Oven Door Weld | 1 |
|
- | ||||
| 17 | 704487 | Clip | 1 |
|
- | ||||
| 18 | WPY706189 | Screw (Replaces: 700906) | 1 |
|
Immediately | $ 6.47 | |||
| 19 | Y704223 | Bumper, Button | 1 |
|
- | ||||
| 20 | 701660 | Insulation, Top | 1 |
|
- | ||||
| 21 | 702292 | Insulation, Bottom | 1 |
|
- | ||||
| 22 | 701652 | Bracket, Stand-off | 1 |
|
- | ||||
| 23 | 703782 | Baffle | 1 |
|
- | ||||
| 24 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| 25 | Y704819 | Retainer, Glass | 1 |
|
- | ||||
| 26 | Y704231 | Screw | 1 |
|
- | ||||
| 27 | W11233072 | Screw (blk) (Replaces: Y704237) | 1 |
|
Immediately | $ 12.62 | |||
| 28 | Y704820 | Glass, Baffle | 1 |
|
- |
