SELECT A DIAGRAM

Diagram for 01 - Access Panel (s156b-c)
01 - Access Panel (s156b-c)

Diagram for 02 - Blower Motor (s156b-c)
02 - Blower Motor (s156b-c)

Diagram for 03 - Blower Motor-blower/plenum (s156b-c)
03 - Blower Motor-blower/plenum (s156b-c)

Diagram for 04 - Blower Motor-convection (s156b-c)
04 - Blower Motor-convection (s156b-c)

Diagram for 05 - Body (s156b-c)
05 - Body (s156b-c)

Diagram for 06 - Control Panel (s156b-c)
06 - Control Panel (s156b-c)

Diagram for 07 - Door (s156b-c)
07 - Door (s156b-c)

Diagram for 08 - Internal Controls (s156b-c)
08 - Internal Controls (s156b-c)

Diagram for 09 - Oven (s156b-c)
09 - Oven (s156b-c)

Diagram for 10 - Oven Liner
10 - Oven Liner

Diagram for 11 - Top/grill Pan (s156b-c)
11 - Top/grill Pan (s156b-c)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 704248 Frame (blk) 1 Appelez-nous -
2 703435 Panel, Base 1 Appelez-nous -
3 Y702896 Spacer, Base Door 1 Appelez-nous -
4 Y702341 Liner, Door 1 Appelez-nous -
5 Y702744 Panel, Kick 1 Appelez-nous -
6 71002058 Screw   (Replaces: Y702124) 1 Special Order $ 5.82

7 Y702633 Stud, Ball 1 Appelez-nous -
8 W11233072 Screw (blk)   (Replaces: Y704237) 1 In-Stock Immediately $ 12.62


    View Diagram in Separate Window     Print Icon   Print Part List

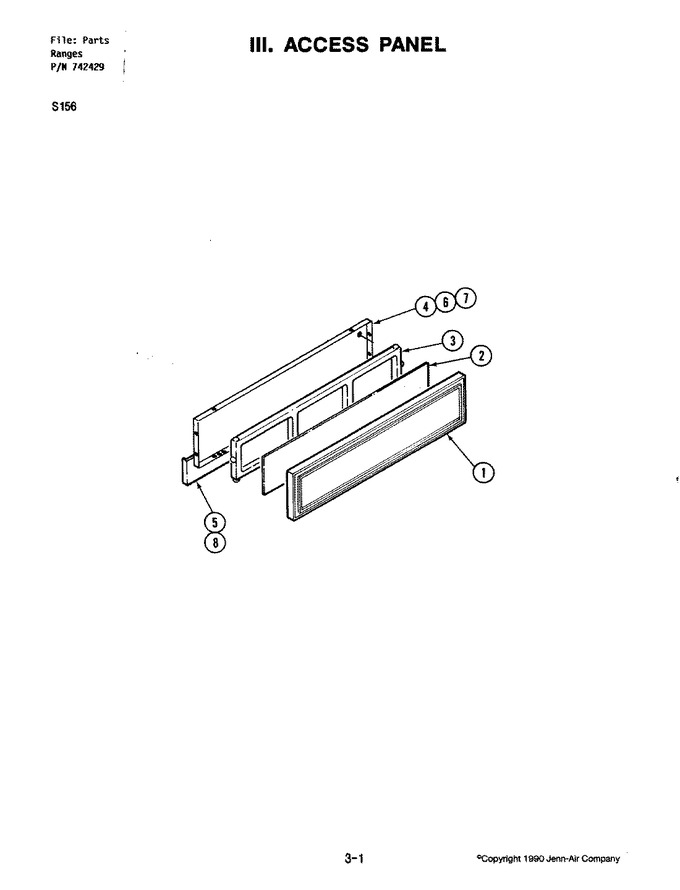

Diagram for S156B-C
