Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 701707 Plate, Convection Front Appelez-nous -
2 WP1163283 Screw   (Replaces: Y703741) Special Order $ 6.47

3 WP74003976 Washer   (Replaces: 702592) Special Order $ 6.47

4 701711 Wheel, Convection Appelez-nous -
5 701709 Screw, Set Appelez-nous -
6 DE81-03744A Plate, Convection Back   (Replaces: 701712) Special Order $ 312.62

7 DE81-03745A Cover, Motor Front   (Replaces: 701713) Special Order $ 251.40

8 Y700601 Plate, Motor Mount Appelez-nous -
9 Y703035 Motor, Convect Appelez-nous -
10 WP488234 Screw   (Replaces: 708861) Special Order $ 6.07

11 WP12990527 Screw   (Replaces: Y708955) In-Stock Immediately $ 7.15

12 715910 Washer, Lock Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

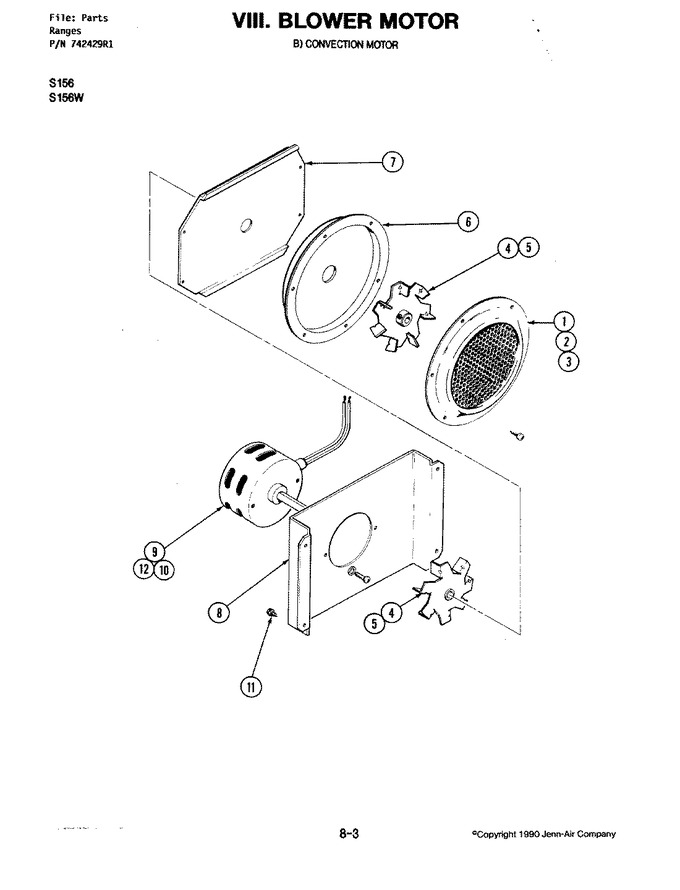

Diagram for S156W
