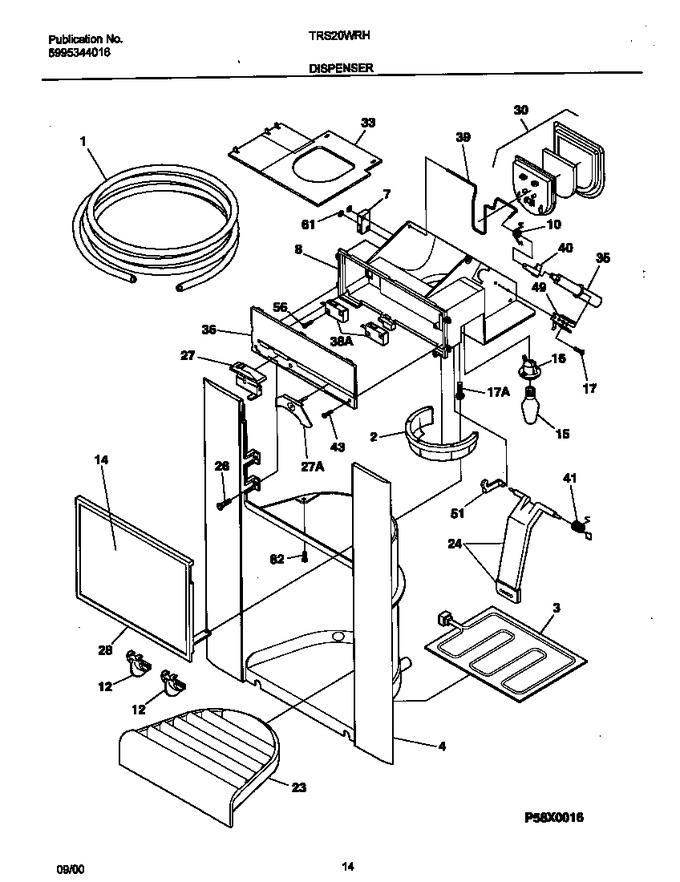

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218832301		Tube-water Inlet,inlet Valve ,to Filter		Appelez-nous	-
1	218859901		Tube-water Inlet,inlet Valve ,to Filter		Appelez-nous	-
2	218505302		Deflector-ice Disp, Almond		Appelez-nous	-
3	215484300		Heater-door Housing				$ 40.85
4	215922302		Housing-dispenser, Almond		Appelez-nous	-
7	218284800		Switch-actuator,micro		Appelez-nous	-
8	218835701		Module-dispenser				$ 75.86
10	218209800		Spring,dispenser Door		Appelez-nous	-
12	218845902		Knob-selector,almond		Appelez-nous	-
14	218416149		Label-module Cover,almond		Appelez-nous	-
15	218284900		Light Bulb / Lamp, 4w, 115v		Appelez-nous	-
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 63.70
17	215794400		Screw,6 X 1/4		Appelez-nous	-
23	215447011		Drip Tray, Almond				$ 22.45
24	215918002		Actuator, Almond		Appelez-nous	-
26	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
27	218814901		Rocker-switch		Appelez-nous	-
27	218432600		Cam-slide				$ 53.97
28	218713102		Cover-module,almond		Appelez-nous	-
30	215753600		Door Assy-ice Chute, W/gasket, Insul		Appelez-nous	-
33	218870201		Heater-disp Throat				$ 244.43
35	218740002		Heat Motor, 115v				$ 234.65
36	218835601		Cover-slctr Switch,ice Dispenser				$ 27.09
38	218479900		Switch-micro,single Pole ,double Throw				$ 57.65
39	218284600		Wire-ice Door		Appelez-nous	-
40	218284500		Yoke-heat Motor				$ 35.01
41	215917800		Spring-actuator				$ 10.03
43	5303001083		Screw,tw Hx Cr Pan Hd ,8-16 X 0.500		Appelez-nous	-
49	215794000		Bracket-heat Motor				$ 34.81
51	215922200		Cam-switch				$ 13.28
56	218434300		Screw-micro Switch, Pan Head, 4-24 X 9/16		Appelez-nous	-
61	215766000		Ring-retainer,micro Switch				$ 34.40
82	215296300		Screw,plask H/l,6 X 3/8		Appelez-nous	-
*98881	215294101		Tube-water Inlet,formed,plastic,dispenser				$ 91.25
*98882	215781700		Clip-tube		Appelez-nous	-
*98883	218863107		Wiring Harness,disp		Appelez-nous	-
17A	215840700		Screw,truss Head,6-20 X 3/8		Appelez-nous	-
17B	215923400		Washer-flat		Appelez-nous	-
