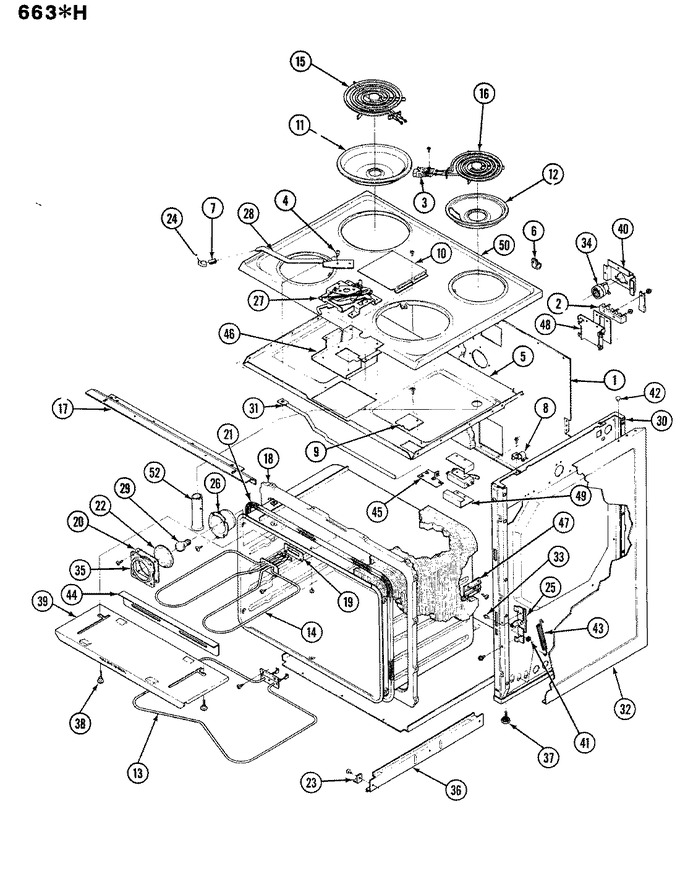

01 - Body
02 - Control Panel
03 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F092-20 | Back, Main | 1 |
|
- | ||||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P002-60) | 1 |
|
Immediately | $ 31.65 | |||
| 3 | 330031 | Block, Surface Unit (Replaces: 7401P014-60) | 1 |
|
Immediately | $ 14.48 | |||
| 4 | 7116P002-60 | Bolt, Door Lock | 1 |
|
- | ||||
| 5 | 3802F029-80 | Brace, Main Top | 1 |
|
- | ||||
| 5 | 3805F002-34 | Clamp, Window Assy. | 1 |
|
- | ||||
| 5 | 3801F101-80 | Bracket, Tie Down | 1 |
|
- | ||||
| 5 | 4011F129-23 | Bottom, Burner Box | 1 |
|
- | ||||
| 5 | 3802F003-20 | Brace | 1 |
|
- | ||||
| 6 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 6 | 7111P002-60 | Clamp, Wire 3/4 | 1 |
|
- | ||||
| 7 | 7112P003-60 | Clip, Latch Handle | 1 |
|
- | ||||
| 8 | 7112P030-60 | Clip, Top Retainer | 1 |
|
- | ||||
| 9 | 4005F139-51 | Cover, Switch | 1 |
|
- | ||||
| 10 | 4005F137-80 | Cover, Catch Assy. | 1 |
|
- | ||||
| 11 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P001-60) | 1 |
|
Immediately | $ 15.56 | |||
| 12 | WPW10196406 | Bowl, Drip (6``) (Replaces: 7725P002-60) | 1 |
|
Immediately | $ 12.05 | |||
| 13 | WPY04000041 | Element,bake (Replaces: 7406P010-60) | 1 |
|
$ 133.20 | ||||
| 14 | WPY04000048 | Element,broil (Replaces: 7406P003-60) | 1 |
|
$ 160.58 | ||||
| 15 | WPY04000035 | Element, Giant Surface (Replaces: 7406P014-60) | 1 |
|
$ 160.60 | ||||
| 16 | WPY04000036 | Element, Std. Surface (Replaces: 7406P017-60) | 1 |
|
$ 88.70 | ||||
| 17 | 4012F017-80 | Front, Burner Box Bottom | 1 |
|
- | ||||
| 18 | 2201F033-23 | Front, Oven | 1 |
|
- | ||||
| 19 | 7201P014-60 | Gasket, Housing | 1 |
|
- | ||||
| 19 | 7201P003-60 | Gasket, Element | 1 |
|
- | ||||
| 20 | 7201P015-60 | Gasket, Lamp Retainer | 1 |
|
- | ||||
| 21 | 7201P036-60 | Gasket, Oven | 1 |
|
$ 118.90 | ||||
| 22 | 7902P057-60 | Glass, Lamp Guard | 1 |
|
- | ||||
| 23 | 8016P005-60 | Glide, Front | 1 |
|
- | ||||
| 23 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 24 | 7701P068-60 | Handle, Latch (blk) | 1 |
|
- | ||||
| 25 | 3418F029-34 | Hinge, Oven Door (lt) | 1 |
|
- | ||||
| 25 | 3418F030-34 | Hinge, Oven Door (rt) | 1 |
|
- | ||||
| 26 | 4001F020-13 | Housing | 1 |
|
- | ||||
| 26 | 4396923 | Insert (Replaces: 3413F002-11) | 1 |
|
Immediately | $ 52.04 | |||
| 27 | 8002P014-60 | Catch | 1 |
|
- | ||||
| 28 | 8009P009-60 | Lever, Door Lock | 1 |
|
- | ||||
| 29 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 30 | 4009W029-20 | Lining, Inner Side | 1 |
|
- | ||||
| 31 | 7807P004-60 | Link, Switch | 1 |
|
- | ||||
| 31 | 4396923 | Pan, Broil (Replaces: 3401F004-11) | 1 |
|
Immediately | $ 52.04 | |||
| 32 | 2618F052-74 | Panel, Side (alm) | 1 |
|
- | ||||
| 33 | 3605F146-51 | Plate, Conduit Reinforcement | 33 |
|
$ 6.06 | ||||
| 33 | 3605F031-80 | Plate, Conduit | 1-32 |
|
- | ||||
| 33 | 7113P002-60 | Pin, Hinge | 1 |
|
$ 9.05 | ||||
| 33 | 3605F148-80 | Plate, Conduit | 33 |
|
- | ||||
| 33 | 7801P004-60 | Rack | 1 |
|
- | ||||
| 34 | 7408P002-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 35 | 0749227 | Retainer, Lampguard | 1 |
|
- | ||||
| 36 | 3406J077 | Runner, Outer | 1 |
|
- | ||||
| 36 | 3406F020-80 | Runner, Inner | 1 |
|
- | ||||
| 36 | WP7101P126-60 | Screw (Replaces: 7101P057-60) | 33 |
|
Immediately | $ 6.85 | |||
| 37 | 7101P029-60 | Screw, Special | 1 |
|
- | ||||
| 38 | 7101P065-60 | Screw | 1 |
|
- | ||||
| 39 | 3604F092-45 | Shield, Broil | 1 |
|
- | ||||
| 40 | 4001F020-13 | Housing | 1 |
|
- | ||||
| 41 | 7112P019-60 | Clip, Hinge Pin | 1 |
|
- | ||||
| 42 | 7107P014-60 | Bumper | 1 |
|
- | ||||
| 43 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 1 |
|
$ 16.55 | ||||
| 44 | 3807F176-13 | Support | 1 |
|
- | ||||
| 45 | 3807F193-45 | Support, Lock Switch | 1 |
|
- | ||||
| 46 | 3807F195 | Support, Latch | 1 |
|
- | ||||
| 47 | 3807F205-45 | Support, Oven Rear | 1 |
|
- | ||||
| 48 | 3807F157-80 | Support, Terminal Block | 1 |
|
- | ||||
| 49 | 7403P045-60 | Switch, Door Lock | 1 |
|
- | ||||
| 50 | 2002W028-84 | Top Assy, Main | 1 |
|
- | ||||
| 50 | 2002W028-81 | Top, Main (white) | 1 |
|
- | ||||
| 50 | 8026A007-60 | Tube, Vent | 1 |
|
- | ||||
| 51 | 8110P087-60 | Manual, Use & Care | 1 |
|
- |
