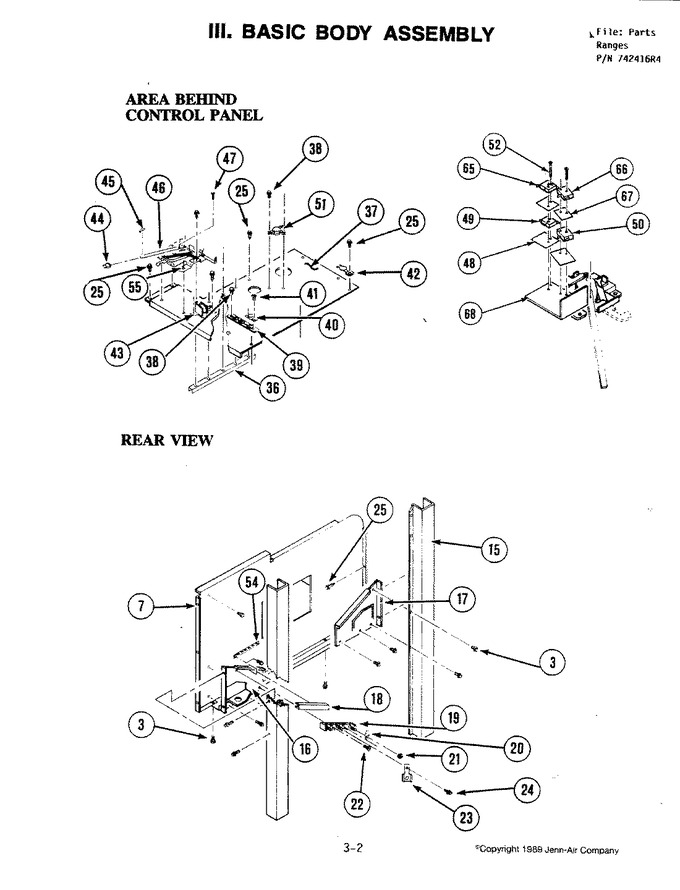

01 - Basic Body Assembly (s160-c)


02 - Blower Assembly/plenum (s160-c)


03 - Control Panel


04 - Convection Fan


05 - Cooling Fan (s160-c)


06 - Door (s160-c)


07 - Internal Controls


08 - Internal Controls (s160-c)


09 - Oven Liner Assembly (s160-c)


10 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y703449		Washer	1	Appelez-nous	-
1	715870		Screw	1	Appelez-nous	-
1	702329		Closure, Front	1	Appelez-nous	-
2	Y712001		Container,grease Assembly	1	Appelez-nous	-
3	WP90767		Screw   (Replaces: 715773)	1		Immediately	$ 7.04
4	712002		Angle, Mount	1	Appelez-nous	-
5	WPW10339879		Tie, Cable   (Replaces: 701678)	1			$ 7.11
6	Y702319		Panel, Bottom & Side (rt)	1	Appelez-nous	-
7	703619		Cover,louver	1	Appelez-nous	-
7	Y702306		Back, Inner	1	Appelez-nous	-
8	702307		Cover, Rear (lower)	1	Appelez-nous	-
9	DE81-09758A		Panel, Side (rt)   (Replaces: 702300)	1			$ 1,127.72
10	Y702301		Panel, Side (lt)	1	Appelez-nous	-
11	Y703487		Hinge, Bracket	1	Appelez-nous	-
11	Y703419		Hinge	1	Appelez-nous	-
12	701666		Switch, Door	1	Appelez-nous	-
13	W10124350		Not Required Part Or See Note Bracket, Hat	1	Appelez-nous	-
14	702333		Cover, Access(r.h)	1	Appelez-nous	-
15	702302		Support, Tube	1	Appelez-nous	-
16	702556		Gussett (rt)	1	Appelez-nous	-
17	702557		Gussett (lt)	1	Appelez-nous	-
18	702898		Insulator	1	Appelez-nous	-
19	WP8203546		Block, Terminal   (Replaces: Y702284)	1		Immediately	$ 27.12
20	W10124350		Not Required Part Or See Note Terminal, Male	1	Appelez-nous	-
21	707161		Nut	1	Appelez-nous	-
22	701526		Screw	1	Appelez-nous	-
23	W10124350		Not Required Part Or See Note Strap, Ground	1	Appelez-nous	-
24	WP71001171		Screw   (Replaces: Y712004)	1			$ 6.26
25	WP90767		Screw   (Replaces: Y700502)	1		Immediately	$ 7.04
26	704355		Switch, Broil Cycle	3	Appelez-nous	-
26	701698		Switch, Broil Cycle	1	Appelez-nous	-
26	704335		Screw	3	Appelez-nous	-
26	W10124350		Not Required Part Or See Note Screw, Truss	1	Appelez-nous	-
27	702729		Bracket	1	Appelez-nous	-
27	704337		Bracket	3	Appelez-nous	-
28	W10124350		Not Required Part Or See Note Support, Channel	1	Appelez-nous	-
28	712000		Rail, Support Assembly	1	Appelez-nous	-
29	W10124350		Not Required Part Or See Note Anchor, Leveler	1	Appelez-nous	-
30	W11117769		Leveler,adjust   (Replaces: Y708696)	1		Immediately	$ 16.61
31	702745		Spacer	1	Appelez-nous	-
32	W11772394		Screw   (Replaces: 715790)	1		Immediately	$ 10.94
33	00702462		Washer, Conical   (Replaces: 702462)	1			$ 1,015.54
34	702337		Trim, Side	1	Appelez-nous	-
35	708763		Clip----s	1	Appelez-nous	-
36	702697		Bracket,stiffener	1	Appelez-nous	-
37	702318		Panel, Top	1	Appelez-nous	-
37	704154		Panel, Top	3	Appelez-nous	-
38	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
39	W10124350		Not Required Part Or See Note Block, Terminal	1	Appelez-nous	-
40	Y702750		Limit, Fan	1	Appelez-nous	-
41	W10124350		Not Required Part Or See Note Screw	1	Appelez-nous	-
42	702746		Tie, Mount Cable	1	Appelez-nous	-
43	Y702526		Solenoid	1	Appelez-nous	-
43	W10124350		Not Required Part Or See Note Pin, Cotter	1	Appelez-nous	-
44	701670		Knob, Lever	1	Appelez-nous	-
45	701671		Spring, Knob	1	Appelez-nous	-
46	Y702299		Latch, Lever	1	Appelez-nous	-
47	707407		Screw	1			$ 6.42
48	Y702350		Insulator	1	Appelez-nous	-
49	Y702359		Switch, Solenoid Micro	1	Appelez-nous	-
50	Y702360		Switch, Solenoid	1	Appelez-nous	-
51	WP7403P899-60		Switch, Hi-limit   (Replaces: Y702548)	1		Immediately	$ 181.29
52	702807		Screw	1	Appelez-nous	-
53	712005		Washer, Flat	1	Appelez-nous	-
54	702336		Angle, Oven Support	1	Appelez-nous	-
54	Y702607		Block, Terminal	1	Appelez-nous	-
54	WP90767		Screw   (Replaces: Y700502)	1		Immediately	$ 7.04
55	Y703357		Latch Assy.	1	Appelez-nous	-
56	Y702476		Clip, Spring	1	Appelez-nous	-
57	703838		Harness, Wire	1	Appelez-nous	-
57	702751		Cord, Power	1	Appelez-nous	-
57	702743		Baffle, Air	1	Appelez-nous	-
57	703832		Harness, Wire (supply)	1	Appelez-nous	-
57	703831		Harness, Wire	1	Appelez-nous	-
58	DE81-07483A		Wireway   (Replaces: 703492)	1			$ 400.73
59	WP90767		Screw   (Replaces: 715773)	1		Immediately	$ 7.04
60	702523		Enclosure, Circuit Breaker	1	Appelez-nous	-
61	Y715443		Breaker, Circuit	1	Appelez-nous	-
62	701774		Circuit Breaker (15 Amp)	1	Appelez-nous	-
63	Y702613		Breaker, Circuit (30 Amp)	1	Appelez-nous	-
63	703834		Harness, Wire	1	Appelez-nous	-
64	702524		Cover, Circuit Breaker	1	Appelez-nous	-
64	W10124350		Not Required Part Or See Note Screw	1	Appelez-nous	-
65	702806		Switch, Door	1	Appelez-nous	-
66	Y703732		Switch, Latch	1	Appelez-nous	-
67	703264		Insulator	1	Appelez-nous	-
68	701706		Shield, Switch	1	Appelez-nous	-
