SELECT A DIAGRAM

01 - Door


02 - Internal Controls


03 - Oven


04 - Top

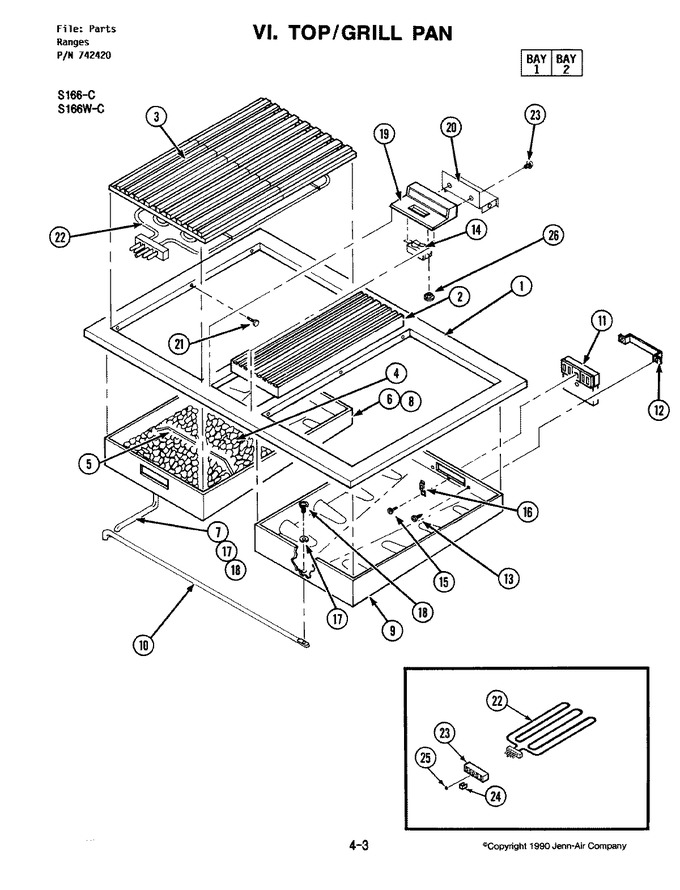

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701853		Top	1	Appelez-nous	-
3	703905		Grate, Grill	1	Appelez-nous	-
4	708929		Plate, Rock	1	Appelez-nous	-
5	700819		Support, Rock Plate	1			$ 71.81
6	Y712197		Wire, Brown	1	Appelez-nous	-
6	712228		Kit, Wire	1			$ 66.14
6	Y712200		Wire, Yellow	1	Appelez-nous	-
6	Y712203		Wire, Violet	1	Appelez-nous	-
6	Y712227		Wire, Blue	1	Appelez-nous	-
6	701955		Pan, Grill (lt)	1	Appelez-nous	-
7	Y702463		Tube, Drain (left)	1	Appelez-nous	-
8	WPY702434		Receptacle (ceramic)   (Replaces: Y702434)	1		Immediately	$ 96.61
9	WP5708M008-60		Wire, Violet   (Replaces: Y712202)	1			$ 87.19
9	WP5708M007-60		Wire, Yellow   (Replaces: Y712201)	1			$ 117.23
9	Y712227		Wire, Blue	1	Appelez-nous	-
9	Y712229		Kit, Wire	1			$ 91.71
9	Y712199		Wire, Brown	1	Appelez-nous	-
9	Y701956		Pan, Grill (rt)	1	Appelez-nous	-
10	Y702327		Tube, Drain (right)	1	Appelez-nous	-
11	WPY702434		Receptacle (ceramic)   (Replaces: Y702434)	1		Immediately	$ 96.61
12	Y702698		Bracket	1	Appelez-nous	-
13	WP12990527		Screw   (Replaces: Y708955)	1		Immediately	$ 7.15
15	00489128		Screw   (Replaces: Y705026)	1			$ 773.97
16	74004835		Clip   (Replaces: Y702699)	1			$ 11.37
17	702747		Washer, Teflon	1	Appelez-nous	-
18	702748		Nut, Drain Tube	1	Appelez-nous	-
20	Y704233		Bracket, Filler	1	Appelez-nous	-
21	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
22	WP5700M426-60		Element Complete, 240v   (Replaces: Y712430)	1			$ 382.26
23	WPY708730		Block, Terminal   (Replaces: Y708730)	1		Immediately	$ 87.44
24	Y700450		Clip, Shunt	1			$ 9.51
25	Y708862		Nut, Speed	1			$ 13.08
26	7103P166-60		Palnut   (Replaces: 715500)	1			$ 15.91

    View Diagram in Separate Window       Print Part List
