| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

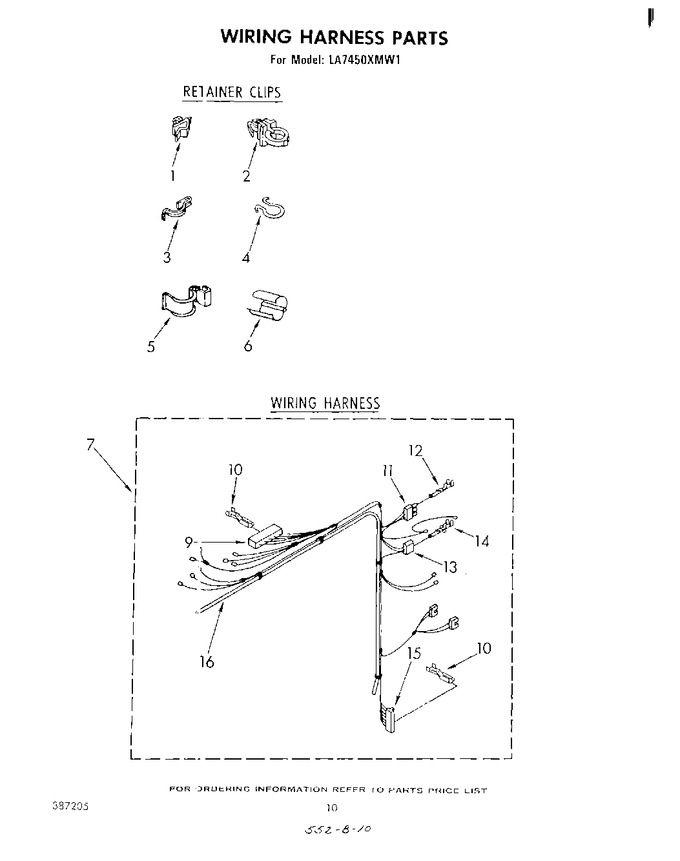

| 1 | 62732 | Clip, Harness |
|
- | |||||
| 1 | W10820043 | Brake & Drive Tube (complete) (Replaces: 64033) |
|
Immediately | $ 195.58 | ||||
| 2 | WP62658 | Ring, Thrust (Replaces: 62658) |
|
Immediately | $ 11.17 | ||||
| 2 | 62749 | Clip, Harness |
|
$ 18.77 | |||||
| 3 | WP91939 | Seal. Oil (Replaces: 91939) |
|
Immediately | $ 6.47 | ||||
| 3 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 9.98 | |||||
| 4 | WP356427 | Seal, Drive Tube (Replaces: 356427) |
|
Immediately | $ 6.47 | ||||
| 4 | 357469 | Clip, Harness (3) |
|
- | |||||
| 5 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.19 | |||||
| 5 | 356937 | Spacer, Drive Tube |
|
- | |||||
| 6 | WP64208 | Tube, Basket Drive (includes Illus. 3, 4, 5, & 9) (Replaces: 64027) |
|
$ 272.29 | |||||
| 6 | 63523 | Protector, Harness |
|
$ 169.95 | |||||
| 7 | 63778 | Wiring Harness & Pressure Switch Hose |
|
- | |||||
| 7 | W10083190 | Ring, Retaining (Replaces: 64035) |
|
$ 10.03 | |||||
| 8 | 285438 | Brake Shoe (Replaces: 64026) |
|
$ 123.64 | |||||
| 9 | W10876590 | Block, Disconnect (black) (timer) (Replaces: 352089) |
|
$ 11.48 | |||||
| 9 | 62703 | ``t`` Bearing, Spin Tube |
|
Immediately | $ 277.74 | ||||
| 10 | 285658 | Cap, Brake Spring (2) (Replaces: 62648) |
|
$ 9.61 | |||||
| 10 | 352088 | Terminal, Female |
|
$ 5.83 | |||||
| 11 | WP62647 | Spring, Brake (Replaces: 62647) |
|
$ 6.16 | |||||
| 11 | WP62889 | Receptacle, Terminal (3-way) (lid Switch) (Replaces: 62889) |
|
$ 6.88 | |||||
| 12 | 285658 | Sleeve, Brake Spring (Replaces: 62909) |
|
$ 9.61 | |||||
| 12 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 6.90 | |||||
| 13 | WP8546461 | Cam, Brake Release (Replaces: 63023) |
|
$ 7.48 | |||||
| 13 | 353424 | Plug, Terminal (3-way) (power Cord) |
|
$ 18.95 | |||||
| 14 | WP63022 | Sleeve, Cam (Replaces: 63022) |
|
$ 41.30 | |||||
| 14 | 94613 | Terminal, (male) |
|
- | |||||
| 15 | 285785 | Driver, Brake Cam (Replaces: 63047) |
|
Immediately | $ 61.22 | ||||
| 15 | WP62505 | Block, Disconnect (motor) (Replaces: 62505) |
|
$ 21.35 | |||||
| 16 | W11033823 | Ring, Retaining (Replaces: 90368) |
|
$ 11.21 | |||||
| 16 | WP353244 | Hose, Pressure Switch (Replaces: 353406) |
|
Immediately | $ 53.94 |
