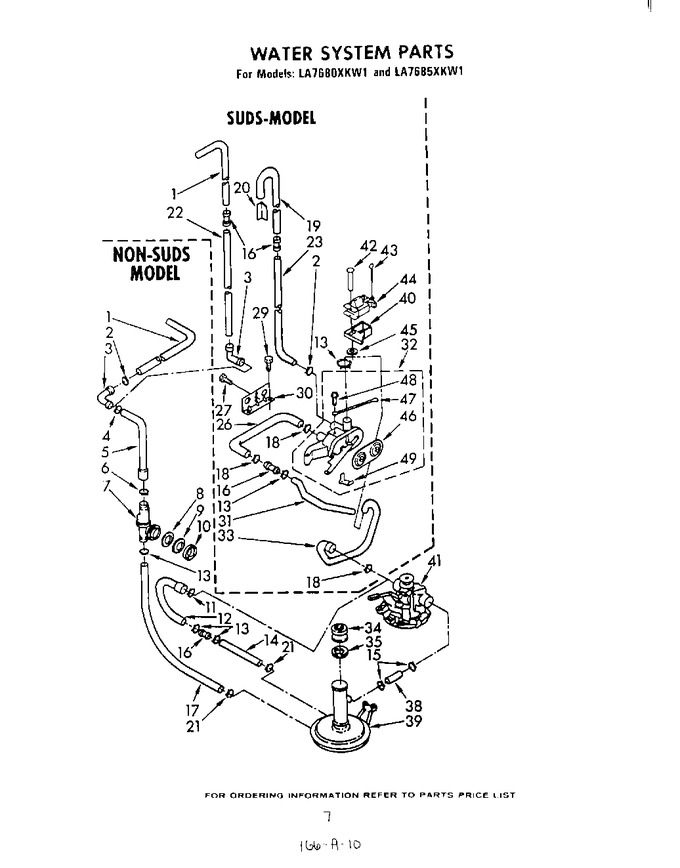

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	96865		Hose, Drain		Appelez-nous	-
2	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
3	95440		Connector, Hose				$ 22.55
4	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 7.55
5	96816		Hose, Side Check To Drain		Appelez-nous	-
6	WP356138		Clamp, Hose   (Replaces: 272856)			Immediately	$ 7.67
7	88677		Valve, Side Check		Appelez-nous	-
8	DE81-04739A		Washer, Rubber   (Replaces: 92235)				$ 74.11
9	DE81-03541A		Washer, Fiber   (Replaces: 92232)				$ 107.38
10	DE81-06164A		Nut, Spanner   (Replaces: 92229)				$ 125.78
11	WP616099		Clamp   (Replaces: 272859)			Immediately	$ 7.03
12	355152		Hose, Pump To Filter		Appelez-nous	-
13	272857		Clamp, Hose		Appelez-nous	-
14	356167		Hose, Pump To Filter		Appelez-nous	-
15	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
16	WP16272		Connector, Hose   (Replaces: 16272)				$ 7.04
17	355151		Hose, Side Check To Filter		Appelez-nous	-
18	WP285655		Clamp, Hose   (Replaces: 370446)			Immediately	$ 7.55
19	91273		Hose, Suds Return		Appelez-nous	-
20	352833		Strainer, Hose		Appelez-nous	-
21	WP285655		Clamp, Hose   (Replaces: 371500)			Immediately	$ 7.55
22	96744		Hose, Outlet		Appelez-nous	-
23	96746		Hose, Suds Return				$ 71.22
26	97784		Hose, Filter To Valve		Appelez-nous	-
27	190575		Screw & Washer		Appelez-nous	-
29	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
30	357191		Bracket, Two-way Valve		Appelez-nous	-
31	355530		Hose, Valve To Filter		Appelez-nous	-
32	359634		Two-way Valve Assembly		Appelez-nous	-
33	357189		Hose, Valve To Pump		Appelez-nous	-
34	93553		Hose, Tub Outlet		Appelez-nous	-
35	9421321		Clamp, Hose		Appelez-nous	-
38	DE81-06162A		Hose, Pump To Manifold   (Replaces: 92231)				$ 78.75
39	363358		Manifold & Filter Assembly		Appelez-nous	-
40	359096		Shield, Two-way Valve		Appelez-nous	-
41	350365		Pump Assembly (refer To Page 5 For Further Breakdown)   (Replaces: 358036)			Immediately	$ 116.12
42	359089		Rivet		Appelez-nous	-
43	90228		Pin, Cotter (1/8 X 3/4)		Appelez-nous	-
44	DE81-09913A		Solenoid   (Replaces: 86798)				$ 33.80
45	WP90296		Clip, Push-on   (Replaces: 90296)				$ 7.07
46	358317		Diaphragm		Appelez-nous	-
47	358343		Strap, Ground		Appelez-nous	-
48	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
49	96262		Clip, Retainer (8)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
