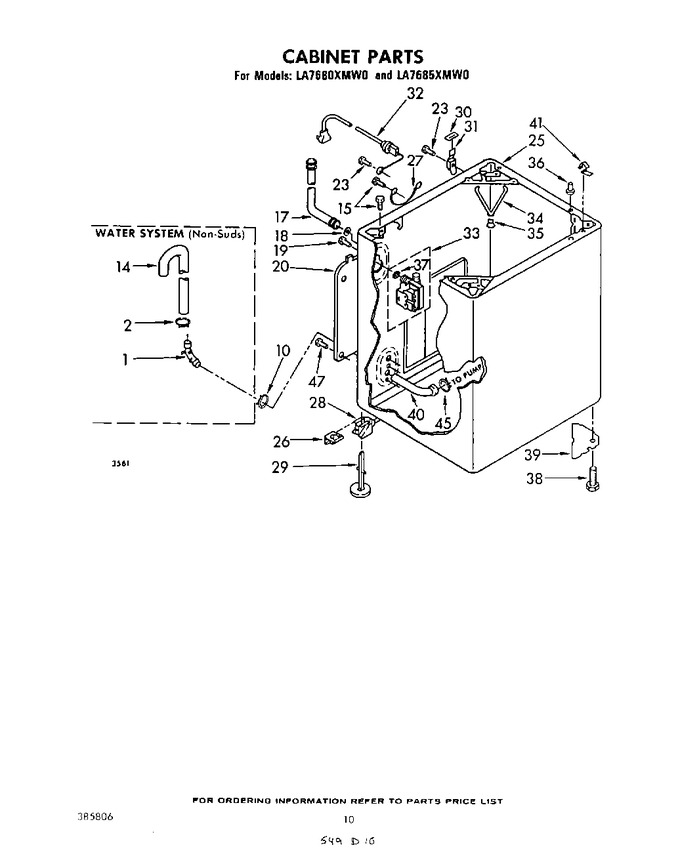

1	95440		Connector, Hose				$ 22.55
2	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
10	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 7.55
14	WP96743		Hose, Drain   (Replaces: 96743)				$ 90.93
15	WP681414		Screw, 10-16 X 1/2   (Replaces: 359262)			Immediately	$ 7.07
17	WP89503		Hose, Inlet (2)   (Replaces: 81339)			Immediately	$ 21.68
18	WP16123		Washer, Rubber (4)   (Replaces: 16123)				$ 6.93
19	WP3351614		Screw, No. 10-24 X 3/8   (Replaces: 90864)			Immediately	$ 6.26
20	357335		Panel, Rear (suds)		Appelez-nous	-
20	85279		Panel, Rear (non-suds)		Appelez-nous	-
23	WP681414		Screw, No.10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
25	384797		Cabinet (golden Harvest)		Appelez-nous	-
25	384793		Cabinet (white)		Appelez-nous	-
25	384794		Cabinet (almond)		Appelez-nous	-
26	WP359364		Clip, Leveling Mechanism (2)   (Replaces: 359364)			Immediately	$ 7.06
27	364089		Wire, Ground		Appelez-nous	-
28	359059		Leveling Link Assembly		Appelez-nous	-
29	WP358594		Foot, Rear (2)   (Replaces: 358594)				$ 12.24
30	18849		Pad, Hinge (2)				$ 18.13
31	92657		Hinge, L.h.		Appelez-nous	-
31	18775		Hinge, R.h.		Appelez-nous	-
32	92667		Cord, Power (120 Volt)		Appelez-nous	-
33	660749		Valve, Mixing		Appelez-nous	-
33	358277		Valve, Mixing (alt.)			Immediately	$ 78.87
33	358971		Valve, Mixing (alt.) (serviced Only As Complete Assemblies)		Appelez-nous	-
34	358336		Spring, Snubber   (Replaces: 357977)			Immediately	$ 4.80
35	358336		Snubber			Immediately	$ 4.80
36	98669		Locator, Top (2)				$ 12.03
37	WP96160		Screen, Filter   (Replaces: 96160)				$ 10.54
38	WP367594		Foot, Front (2)   (Replaces: 367594)			Immediately	$ 18.46
39	356459		Plate, Gusset (2)		Appelez-nous	-
40	358560		Hose, Pump Discharge		Appelez-nous	-
41	WP18776		Lock, Front Top (2)   (Replaces: 18776)			Immediately	$ 11.41
45	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 7.55
47	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
