SELECT A DIAGRAM

02 - Freezer Door Parts

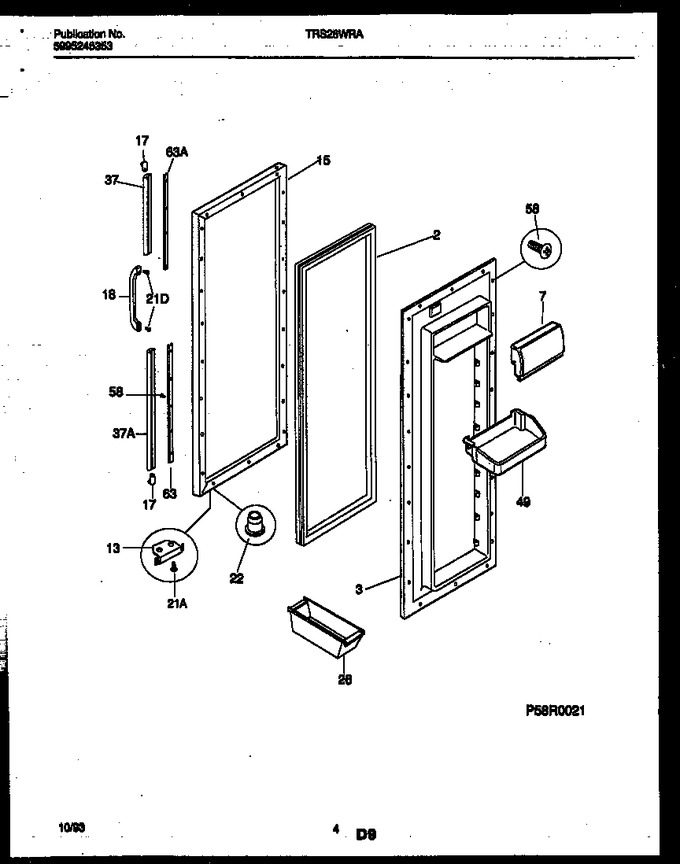

03 - Refrigerator Door Parts


04 - Cabinet Parts


06 - Shelves And Supports


07 - Refrigerator Control Assembly, Damp


08 - System And Automatic Defrost Parts


10 - Ice Door, Dispenser And Water Tank


12 - Ice Dispenser


14 - Ice Maker And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, Magnetic, White				$ 243.34
3	215403201		Panel-inner Door, Refr		Appelez-nous	-
7	215029910		Door-dairy		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	215868901		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
17	215100001		Handle End, White		Appelez-nous	-
18	215339601		Handle-door, White		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215117408		Trim-handle, 15.88``, White, Upper		Appelez-nous	-
49	215717301		Bin-door, (4)		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
63	215117206		Rail-handle Trim Mtg, Lower		Appelez-nous	-
*90221	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
*90221	215361200		Foam Strip, Handle Mtg Hole		Appelez-nous	-
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21D	215659600		Screw-handle Mtg,hex Head, 10-32 X 1/2		Appelez-nous	-
37A	215117410		Trim-handle, 31.46``, White, Lower		Appelez-nous	-
63A	215117208		Rail-handle Trim Mtg, Upper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
