SELECT A DIAGRAM

01 - Top Mount Refrigerator

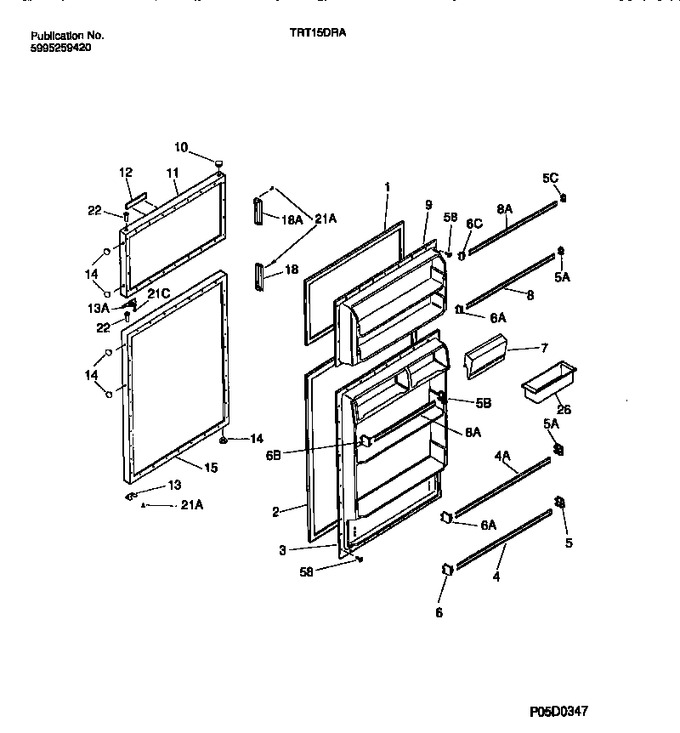

02 - Door Section


03 - Cabinet W/fan Assy


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608911		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730603		Gasket-refr Door, White, Magnetic   (Replaces: 5318680311)				$ 62.07
3	5303284098		Panel-inner Door, Refr		Appelez-nous	-
4	215366068		Rack-door, 22.95`` X 1.62``		Appelez-nous	-
5	3206150		Support-door Rack, Extends 1/81``, Rh				$ 12.58
6	3206151		Support-door Rack, Extends 1.81``, Lh		Appelez-nous	-
7	5303291495		Door-dairy		Appelez-nous	-
8	215366069		Rack-door, 22.55`` X 1.62``		Appelez-nous	-
9	5303276517		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hle				$ 5.62
11	3916563		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215754301		Nameplate Assy, White		Appelez-nous	-
13	5308000255		Door Stop				$ 42.20
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	3916558		Panel-refr Door, White W/insulation		Appelez-nous	-
18	5303273079		Handle-door, White		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
58	5308002748		Screw		Appelez-nous	-
*47080	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	215220317		Label-nameplate, White, (non-illustrated)		Appelez-nous	-
12B	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (non-illustrated)		Appelez-nous	-
12C	5315340760		Tape, Adhesive, 60`` Lg, Foam, Trim / Nameplate, Double Faced (non-illustrated)		Appelez-nous	-
13A	218249001		Door Stop, White, Frzr				$ 82.06
18A	5303273082		Handle-door, Almond		Appelez-nous	-
18A	5303283081		Handle-door, White		Appelez-nous	-
21A	21851900		Screw, No. 8 Ovel Head,, 10-32(ca) X 5/8, Cross Recessed		Appelez-nous	-
21C	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
4A	215366077		Rack-door, 23.17`` X 1.62``		Appelez-nous	-
5A	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
5B	3206156		Support-door Rack, Extends .56``, Rh		Appelez-nous	-
5C	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
6A	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
6B	3206157		Support-door Rack, Extends .56``, Lh		Appelez-nous	-
6C	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
8A	5303300046		Rack-door, 22.55`` X 1.12``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
