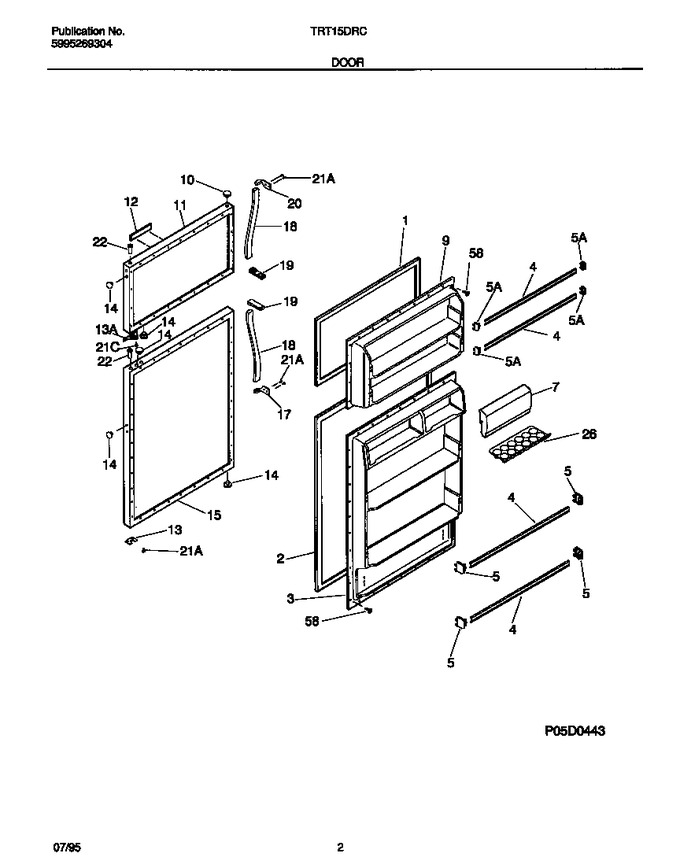

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303288856		Gasket-frzr Door, Almond, Magnetic				$ 72.92
2	218730603		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288857)				$ 62.07
3	218359001		Panel-inner Door, Refr		Appelez-nous	-
4	218027057		Rack-door, 22.20`` X 1.62``		Appelez-nous	-
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
7	218287815		Door-dairy,10.71`` Wide		Appelez-nous	-
9	218358801		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917685		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	218531502		Nameplate Assy, Almond, W/mounting Tape		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917655		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
17	215364800		Handle End				$ 73.92
18	5303015111		Handle-door		Appelez-nous	-
19	215365000		Handle End, (2)		Appelez-nous	-
20	215364900		Handle End				$ 108.52
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*04800	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	218249002		Door Stop, Almond, Frzr				$ 47.88
18A	5303211209		Insert-handle Grip, Almond (not Illustrated)		Appelez-nous	-
21A	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21C	218252201		Screw, No. 8 Truss Head, 10-32 X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
5A	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
