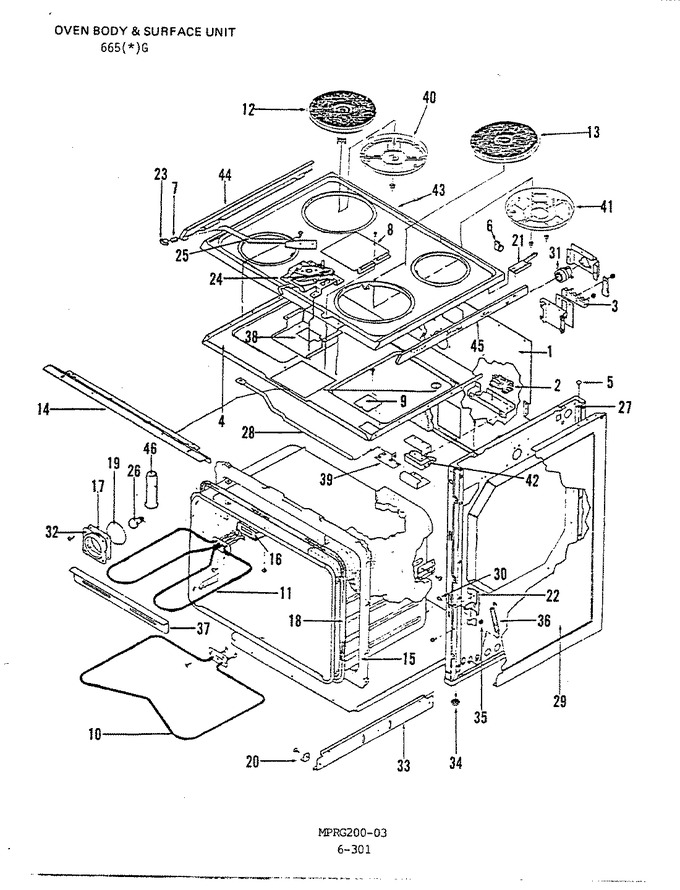

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Door & Latch Assy.
03 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 903114 | Timer | 1 |
|
- | ||||
| 2 | 1023200 | Ballast | 1 |
|
- | ||||
| 2 | 3601F058 | Baffle | 1 |
|
- | ||||
| 3 | WPW10245259 | Block (Replaces: 1867255) | 1 |
|
Immediately | $ 31.65 | |||
| 4 | 4011F078-23 | Box, Burner | 1 |
|
- | ||||
| 4 | 3801F101-80 | Bracket, Tie Down | 1 |
|
- | ||||
| 4 | 3801F093 | Bracket | 1 |
|
- | ||||
| 4 | 277238 | Brace, Main Top | 1 |
|
- | ||||
| 4 | 1566294 | Catalyst | 1 |
|
- | ||||
| 4 | 0284318 | Bracket | 1 |
|
- | ||||
| 4 | 277257 | Brace, Inner Side | 1 |
|
- | ||||
| 5 | 7105P002-60 | Support, Main Top | 8 |
|
- | ||||
| 5 | 8010E012 | Bumper, Main Top | 1-7 |
|
- | ||||
| 5 | 1784202 | Bumper | 1 |
|
- | ||||
| 6 | 1140201 | Clamp | 1 |
|
- | ||||
| 7 | WP7112P004-60 | Clip (Replaces: 1141238) | 1 |
|
Immediately | $ 11.07 | |||
| 7 | 7112E003 | Clip, Door Lock | 1 |
|
- | ||||
| 8 | 4005J137 | Cover, Door Lock | 1 |
|
- | ||||
| 9 | 4005F139 | Cover Switch Lock | 1 |
|
- | ||||
| 10 | WPY04000041 | Element, Bake (Replaces: 1938357) | 1 |
|
$ 133.20 | ||||
| 12 | WP3147131 | Element (6``) (Replaces: 7406P023-60) | 1 |
|
$ 244.76 | ||||
| 13 | 7406P019-60 | Element (6``- Auto Switch) | 1 |
|
- | ||||
| 13 | 7406P022-60 | Element (8``- Auto Switch) | 1 |
|
- | ||||
| 13 | 7406P024-60 | Element, Solid Disc (8``) | 1 |
|
- | ||||
| 14 | 4012J015 | Frame, Burner Box | 1 |
|
- | ||||
| 15 | 2201C025 | Frame, Oven Front | 1 |
|
- | ||||
| 16 | 1313259 | Gasket, Lampguard | 1 |
|
- | ||||
| 16 | 1313274 | Gasket, Broil Element | 1 |
|
- | ||||
| 17 | WPY04000048 | Element, Broil (Replaces: 1938369) | 1 |
|
$ 160.58 | ||||
| 17 | 1313260 | Gasket, Lampguard Retainer | 1 |
|
- | ||||
| 18 | 1313279 | Gasket, Oven | 1 |
|
- | ||||
| 19 | 1327784 | Glass, Lightguard | 1 |
|
- | ||||
| 20 | 1329101 | Glide | 1 |
|
- | ||||
| 20 | 8016E005 | Glide, Service Drawer (front) | 1 |
|
- | ||||
| 21 | 529103 | Hinge, Main Top-left | 1-7 |
|
- | ||||
| 21 | 529104 | Hinge, Main Top-right | 1-7 |
|
- | ||||
| 22 | 3418Z022 | Hinge, Oven Door (lt) | 1 |
|
- | ||||
| 22 | 0537253 | Housing, Lamp | 1 |
|
- | ||||
| 23 | 507229 | Insert, Broiler Pan | 1 |
|
- | ||||
| 23 | 7701E003 | Handle, Door Lock | 1 |
|
- | ||||
| 24 | 8002P014-60 | Catch | 10 |
|
- | ||||
| 24 | 8002E002 | Catch | 1-9 |
|
- | ||||
| 25 | 8009E001 | Lever, Door Lock | 1 |
|
- | ||||
| 25 | 8009P006-60 | Lever, Door Lock | 10 |
|
- | ||||
| 26 | 40A15 | Light, Oven (Replaces: 1077202) | 1 |
|
Immediately | $ 1.98 | |||
| 27 | 4009W029-20 | Lining, Inner Side | 1 |
|
- | ||||
| 28 | 8021E001 | Link, Door Lock | 1 |
|
- | ||||
| 28 | 663202 | Pan, Broiler | 1 |
|
- | ||||
| 29 | 0801240G | Panel, Side (fresh Avocado) | 1 |
|
- | ||||
| 29 | 801240A | Panel, Side (alm) | 1 |
|
- | ||||
| 29 | 0801240Y | Panel, Side | 1 |
|
- | ||||
| 29 | 0801240B | Panel, Side ((coffee) | 1 |
|
- | ||||
| 29 | 801240N | Panel, Side (wht) | 1 |
|
- | ||||
| 30 | 1636254 | Rack, Oven | 1 |
|
- | ||||
| 30 | 1584204 | Pin, Oven Door Hinge | 1 |
|
- | ||||
| 31 | 1657202 | Receptacle, Oven Light | 1 |
|
- | ||||
| 32 | 0749227 | Retainer, Lampguard | 1 |
|
- | ||||
| 33 | 3406J007 | Runner, Outer | 1 |
|
- | ||||
| 33 | 766215 | Wire | 1 |
|
- | ||||
| 34 | 0787392 | Shield, Oven Lamp | 1 |
|
- | ||||
| 34 | 1986339 | Screw, Top Hinge | 1 |
|
- | ||||
| 34 | 1986204 | Screw, Special | 1 |
|
- | ||||
| 34 | WP4159193 | Screw, Dr Lock Handl (Replaces: 1986346) | 1 |
|
$ 4.29 | ||||
| 34 | 0787407 | Shield, Access | 1 |
|
- | ||||
| 35 | 1013214 | Ring, Snap | 1 |
|
- | ||||
| 36 | WP7803P058-60 | Spring, Oven Door (Replaces: 1790300) | 1 |
|
$ 16.55 | ||||
| 36 | 0115100 | Stop, Main Top | 1 |
|
- | ||||
| 37 | Y0862419 | Support, Broil Element | 1-12 |
|
- | ||||
| 37 | 8004P013-60 | Clip, Broil Element Support | 13 |
|
- | ||||
| 38 | 3807F195 | Support, Latch | 1 |
|
- | ||||
| 39 | 3807F193 | Support, Door Lock Switch | 1 |
|
- | ||||
| 40 | 8004P011-60 | Support, 6`` | 1 |
|
- | ||||
| 41 | 8004P012-60 | Support, 8`` | 1 |
|
- | ||||
| 41 | 8004P010-60 | Support, 8``(auto) | 1 |
|
- | ||||
| 41 | 8004P009-60 | Support, 6``(auto) | 1 |
|
- | ||||
| 42 | 7403E045 | Switch, Lock | 1 |
|
- | ||||
| 43 | 2002W032-04 | Top Assy, Main | 1 |
|
- | ||||
| 43 | 2002W032-07 | Top Assy, Main | 1 |
|
- | ||||
| 43 | 2002W032-08 | Top Assy, Main | 1 |
|
- | ||||
| 43 | 2002W032-01 | Top Assy, Main | 1 |
|
- | ||||
| 44 | 1916306 | + Trim, Top | 1 |
|
- | ||||
| 45 | 1916307 | + Trim, Top | 1-3 |
|
- | ||||
| 46 | 8026E005 | Tube, Oven Vent | 1-13 |
|
- | ||||
| 46 | 8026A009-60 | Tube, Oven Vent | 14 |
|
- |
