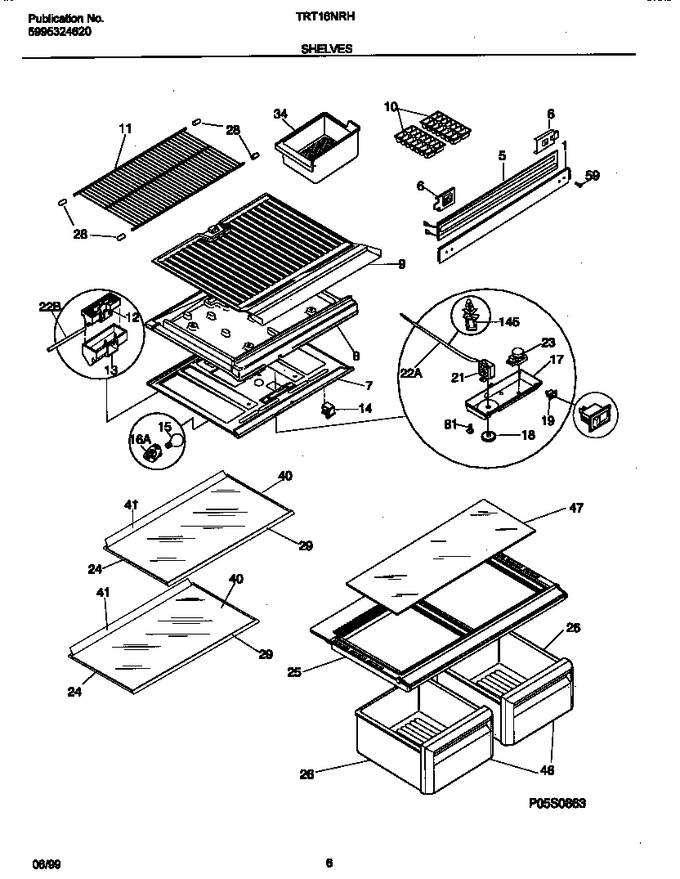

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218651801 | Mullion, Almond |
|
- | |||||
| 5 | 218781001 | Heater-mullion |
|
$ 50.56 | |||||
| 6 | 218845602 | Tapping Plate,mullion Mtg |
|
$ 14.86 | |||||
| 7 | 218865801 | Panel-top,refr Cavity |
|
- | |||||
| 8 | 218909701 | Divider,styrofoam ,w/foil Tape |
|
- | |||||
| 9 | 218865600 | Panel-bottom,frzr Cavity |
|
- | |||||
| 10 | 215667501 | Tray-ice,plastic (optiional Accessory) |
|
Immediately | $ 6.07 | ||||
| 11 | 5303283107 | Shelf-freezer, Fixed/flat, Full Width, Wire |
|
$ 155.82 | |||||
| 12 | 218730000 | Deflector-air |
|
$ 57.60 | |||||
| 13 | 218631001 | Cover-air Deflector |
|
$ 55.19 | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 218906801) |
|
$ 17.72 | |||||
| 17 | 5303321455 | Control Box |
|
$ 46.16 | |||||
| 18 | 5303311079 | Knob-temp Control |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver, Rocker Type |
|
$ 27.08 | |||||
| 21 | 5304404821 | Control-temperature |
|
Immediately | $ 164.57 | ||||
| 22 | 218731104 | Tube, Pvc, White, @ Air Deflector, Insulator |
|
$ 35.64 | |||||
| 22 | 5303916855 | Tube, Plastic, Clear, Sensor Sleeve |
|
$ 60.96 | |||||
| 23 | 215846602 | Timer-defrost (Replaces: 215846605) |
|
Immediately | $ 28.20 | ||||
| 24 | 218276001 | Frame-shelf, Sliding, Full Width |
|
$ 72.01 | |||||
| 25 | 218314102 | Cover-crisper Pan, With Beam |
|
$ 221.99 | |||||
| 26 | 3206180 | Pan - Crisper |
|
$ 155.70 | |||||
| 28 | 3201150 | End Cap-shelf,protector ,frzr Shelf |
|
$ 4.57 | |||||
| 29 | 215919442 | Trim-glass Shelf,22.00`` ,front |
|
- | |||||
| 34 | 5303212918 | Container-ice |
|
$ 104.66 | |||||
| 40 | 218390569 | Glass-shelf, 22.00`` X 13.94`` |
|
$ 39.48 | |||||
| 41 | 215919839 | Trim-glass Shelf, 21.88`` Rear |
|
$ 59.38 | |||||
| 46 | 5303307450 | Front-crisper Pan |
|
$ 176.87 | |||||
| 47 | 218390598 | Insert-pan Cover, Glass |
|
- | |||||
| 59 | 240442708 | Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin (Replaces: 218188000) |
|
$ 8.34 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 145 | 218660800 | Clip, Plastic, Temp Sensor Mtg, Snap-in |
|
- | |||||
| *93821 | 5303001380 | Screw |
|
- | |||||
| *93822 | 218878500 | Harness-wiring,control/divider |
|
$ 105.99 | |||||
| *93823 | 218159700 | Spacer-shelf |
|
- | |||||
| *93824 | 5303001449 | Seal-air Deflector,foam Plastic ,(2) |
|
$ 2.12 | |||||
| *93825 | 5308016567 | Nut-anchor |
|
- | |||||
| *93826 | 5303001260 | Screw |
|
$ 6.73 | |||||
| *93827 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| *93828 | 3205266 | Edge Protector, Wiring Harness |
|
$ 80.09 |
