SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves


05 - System

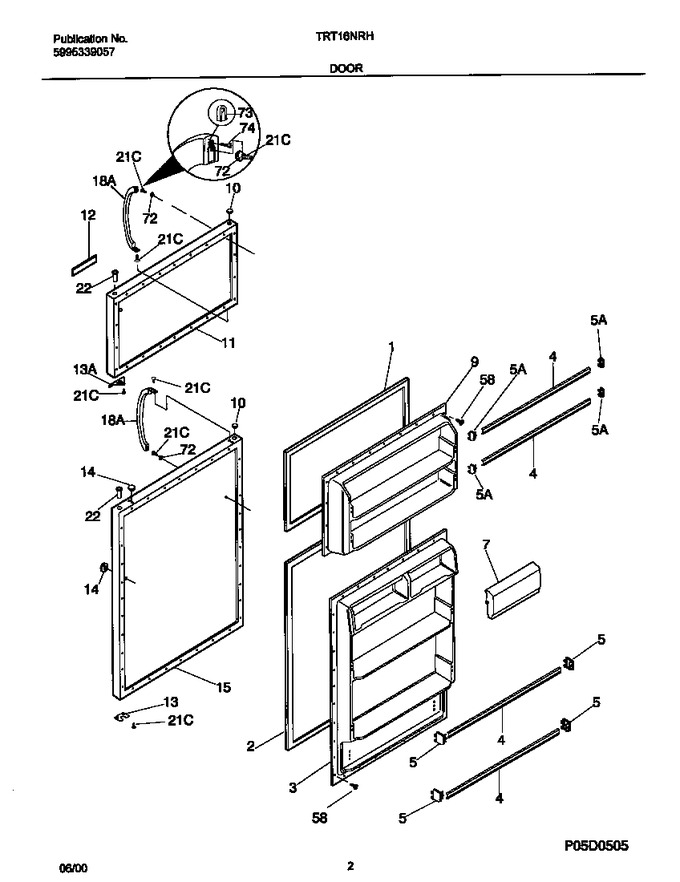

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308007123		Gasket-frzr Door, White, Magnetic				$ 188.54
2	218730603		Gasket-refr Door, White, Magnetic   (Replaces: 5318680311)				$ 62.07
3	218359001		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door,22.20`` X 1.62``   (Replaces: 218027017)			Immediately	$ 65.83
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
7	218287817		Door-dairy,10.71`` Wide ,clear ,no Graphics		Appelez-nous	-
9	218358801		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917804		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	215220347		Label-nameplate,almond		Appelez-nous	-
13	218800300		Door Stop,plated		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
14	218915702		Plug-button,almond		Appelez-nous	-
15	5303917803		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218428102		Handle-door, Almond, W/block & Screw		Appelez-nous	-
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
*57120	218428202		Frame-nameplate, Almond		Appelez-nous	-
*57122	215518000		Magnet-nameplate		Appelez-nous	-
*57123	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
