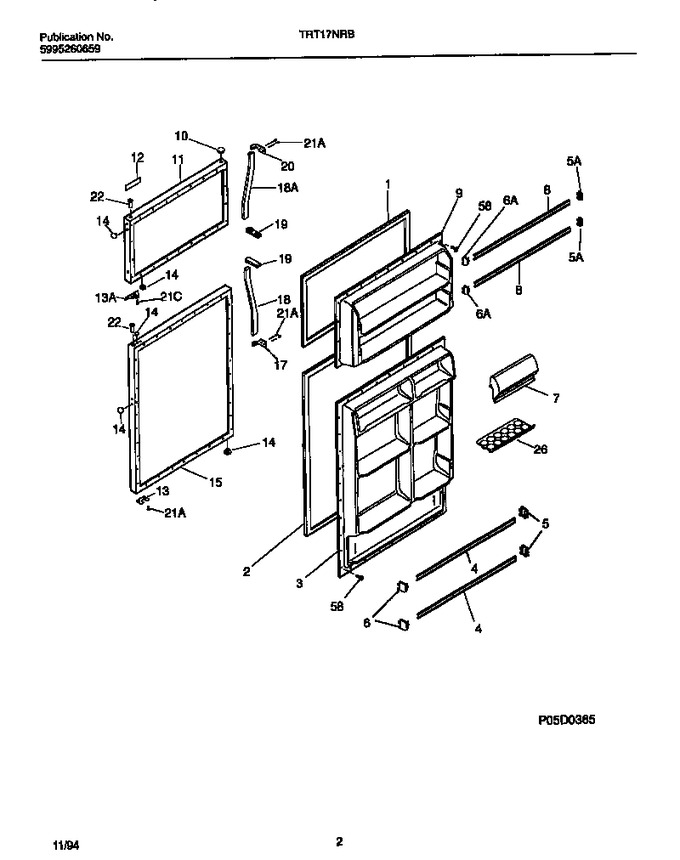

02 - Door Section


03 - Cabinet W/ Fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608901		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	215732402		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	215026201		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door   (Replaces: 218027003)			Immediately	$ 65.83
5	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
6	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
7	5303304570		Door-dairy		Appelez-nous	-
8	215806315		Rack-door		Appelez-nous	-
9	5303290026		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917475		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	215366311		Frame - Nameplate, Almond		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917477		Panel-refr Door, Almond, W/insulation		Appelez-nous	-
17	215364800		Handle End				$ 73.92
18	5303301466		Insert-handle Grip, Black, (non-illustrated)		Appelez-nous	-
18	5303015111		Handle-door		Appelez-nous	-
18	5303211209		Insert-handle Grip, Almond, (non-illustrated)		Appelez-nous	-
19	215365000		Handle End, (2)		Appelez-nous	-
20	215364900		Handle End				$ 108.52
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*37360	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (non-illustrated)		Appelez-nous	-
12B	215220318		Label-nameplate, Almond (non-illustrated)		Appelez-nous	-
13A	218249002		Door Stop, Almond, Frzr				$ 47.88
18A	5303201377		Handle-door				$ 60.90
18A	5303271858		Insert-handle Grip, Almond (non-illustrated)		Appelez-nous	-
18A	5303292745		Insert-handle Grip, Black (non-illustrated)		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21C	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
5A	3206156		Support-door Rack, Extends .56``, Rh		Appelez-nous	-
6A	3206157		Support-door Rack, Extends .56``, Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
