02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

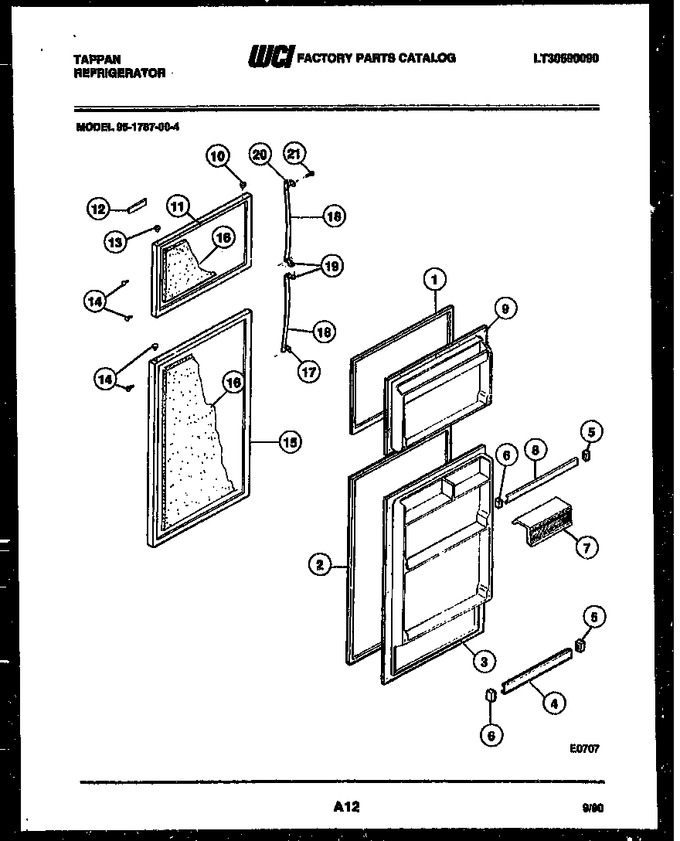

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001399		Gasket-freezer		Appelez-nous	-
2	218730603		Gasket-refrigerator   (Replaces: 5303001517)				$ 62.07
3	5318560201		Inner Panel Refrigerator		Appelez-nous	-
4	3001515		Rack-refrigerator Door (2)		Appelez-nous	-
5	5303001410		Support Rs (3)		Appelez-nous	-
6	5303001411		Support Ls (3)		Appelez-nous	-
7	5316177644		Dairy Door		Appelez-nous	-
8	3001511		Rack-freezer Door		Appelez-nous	-
9	5303001512		Inner Panel-freezer		Appelez-nous	-
10	5308000175		Plug-avocado		Appelez-nous	-
10	5308000134		Plug-white				$ 5.62
10	5303001308		Plug-almond		Appelez-nous	-
10	5303001657		Plug-coffee		Appelez-nous	-
10	5308000176		Plug-wheat		Appelez-nous	-
11	G185599-10		Freezer Door-coffee		Appelez-nous	-
12	3001312		Nameplate Assy		Appelez-nous	-
13	5308012007		Bearing, Hinge (8)		Appelez-nous	-
14	5308000178		Plug-coffee (8)		Appelez-nous	-
14	5308000181		Plug-almond (8)		Appelez-nous	-
14	240494001		Plug-white (8)   (Replaces: 5308000090)			Immediately	$ 18.20
14	5308000179		Plug-avocado (8)		Appelez-nous	-
14	5308000180		Plug-wheat (8)		Appelez-nous	-
15	G185600-10		Refrigerator Door-coffee		Appelez-nous	-
16	5303007739		Insulation, Bulk		Appelez-nous	-
17	5303001295		Handle - End Bottom		Appelez-nous	-
18	3205955		Grip-handle (2)		Appelez-nous	-
19	5303001296		Handle End, (2)				$ 86.36
20	5303001297		Handle End Top				$ 70.22
21	5308011745		Screw				$ 10.38
15A	5308000255		Stop-door (2) (non-illustrated)				$ 42.20
3A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
9A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
