SELECT A DIAGRAM

01 - Cover

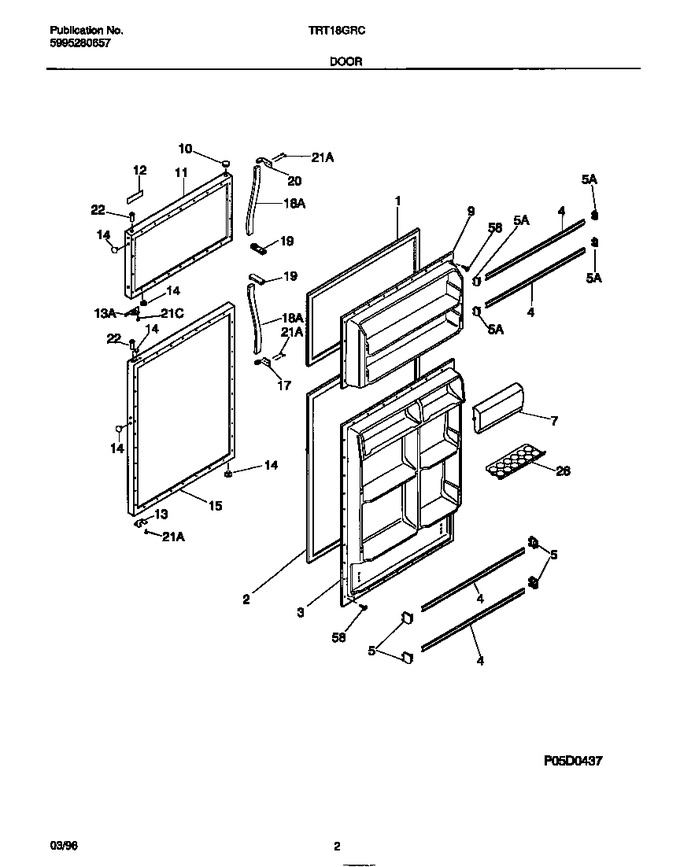

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608906		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	5303207345		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288239)			Immediately	$ 188.19
3	218360001		Panel-inner Door, Refr				$ 453.98
4	218027048		Rack-door, 23.81`` X 1.62``		Appelez-nous	-
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917636		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	218439117		Nameplate Assy, Almond, W/mtg Tape		Appelez-nous	-
12	215366311		Frame - Nameplate, Almond		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
13	5308000255		Door Stop				$ 42.20
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917638		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
17	215364800		Handle End				$ 73.92
18	215954201		Handle-door, 14.95`` Long		Appelez-nous	-
18	215954304		Insert, 15.12``, Almond, Handle Grip (not Illustrated)		Appelez-nous	-
19	215365000		Handle End, (2)		Appelez-nous	-
20	215364900		Handle End				$ 108.52
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
22	218519300		Bearing-hinge				$ 14.60
26	215817806		Tray-egg				$ 13.46
58	216858001		Screw, Truss Head, 8-15a X 0.500   (Replaces: 218699800)			Immediately	$ 10.85
*24400	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	218252201		Screw, No. 8 Truss Head, 10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
21B	5308007097		Screw, Cr Truss Head, 8-15(a) X 3/4		Appelez-nous	-
7A	218287811		Door-dairy,10.71`` Wide		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
