SELECT A DIAGRAM

01 - Control Panel


02 - Door & Latch Assy.


03 - Top Assembly

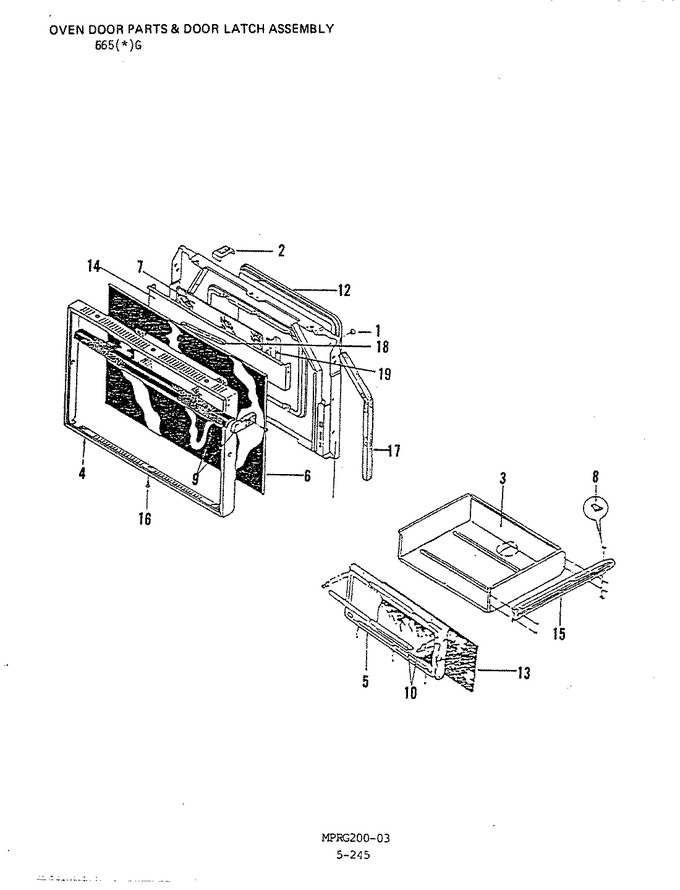

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0284324		Bracket	1	Appelez-nous	-
1	1784200		Bumper	1	Appelez-nous	-
1	3802F044-51		Brace, Drawer	1	Appelez-nous	-
2	7712E031		Clip, Door Glass	1-2	Appelez-nous	-
3	0384227		Drawer Assy.	1	Appelez-nous	-
4	7706P178-60		Frame, Door	15	Appelez-nous	-
4	7706E007		Frame, Ovn Door	1-14	Appelez-nous	-
5	7706E001		Frame, Serv Door	1	Appelez-nous	-
5	1313269		Gasket	1	Appelez-nous	-
6	7902E065		Glass, Door	1	Appelez-nous	-
7	7902P097-60		Glass, Inner	1			$ 63.87
8	8016E005		Glide, Service Drawer (front)	1	Appelez-nous	-
8	1329101		Glide	1	Appelez-nous	-
9	7701E019		Handle, Door	1	Appelez-nous	-
10	7728E012		Insert, Handle	1	Appelez-nous	-
10	7701E019		Handle, Door	1	Appelez-nous	-
11	2402W128-15		Lining	28	Appelez-nous	-
11	2402W125-12		Lining Assy, Ov Dr	1	Appelez-nous	-
11	2422H082		Lining, Ovn Door	1-23	Appelez-nous	-
12	2410F011-51		Pad, Inner Ov Dr	1	Appelez-nous	-
12	2410W021-12		Pad Assy, Oven Door	2	Appelez-nous	-
12	2430H019		Pad, Oven Door	1	Appelez-nous	-
12	2410F015-51		Pad, Inner Oven Door	2	Appelez-nous	-
13	2426F006		Panel, Svc Drawer	1-8	Appelez-nous	-
13	2416F012-70		Panel, Svc Drw Blk	9	Appelez-nous	-
14	3804F040		Retainer, Glass	1	Appelez-nous	-
15	3406J007		Runner, Outer	1	Appelez-nous	-
15	766215		Wire	1	Appelez-nous	-
17	1726250		Seal	1	Appelez-nous	-
18	1726252		Seal	1	Appelez-nous	-
18	WP7803P058-60		Spring, Oven Door   (Replaces: 1790300)	1			$ 16.55
18	Y0112241		Stop, Door	1	Appelez-nous	-
18	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	1			$ 11.95
19	5700A091-60		Window Pak Assy.	1	Appelez-nous	-
19	5700A091-60		Window Pak Assy.	11	Appelez-nous	-
19	3804J038		Support, Glass	1	Appelez-nous	-
19	5700A084-60		+ Window, Pkg	3-10	Appelez-nous	-
19	5700A081-60		+ Window, Ov Dr Assy	1-2	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
