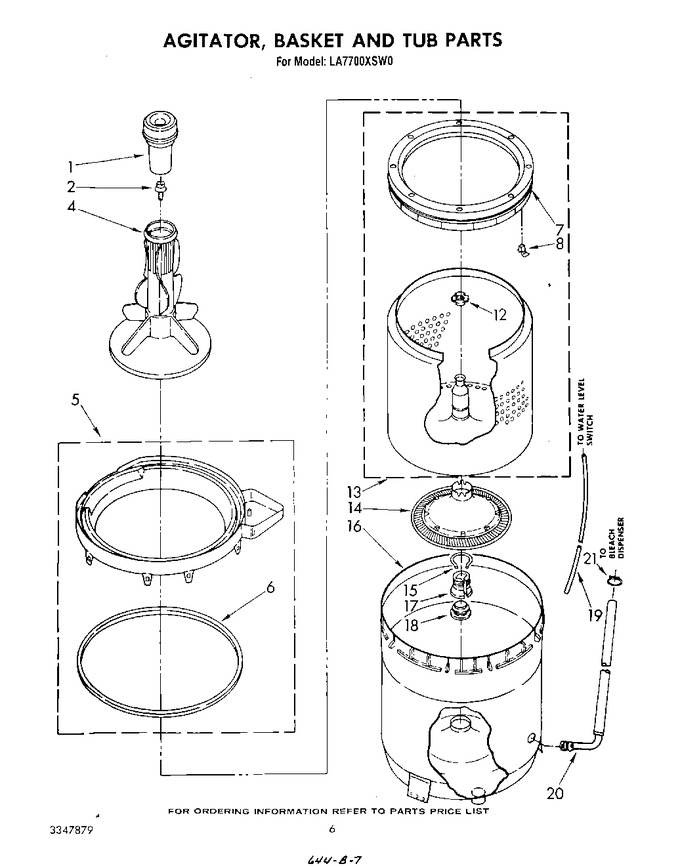

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 63580 | Dispenser, Fabric Softener |
|
Immediately | $ 2.37 | ||||
| 2 | WP358237 | Screw & Washer (5-16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 7.97 | ||||
| 4 | WP63235 | Agitator (Replaces: 63235) |
|
Immediately | $ 203.08 | ||||
| 5 | 387966 | Tub Ring & Gasket |
|
- | |||||
| 6 | WP3359586 | Gasket, Tub Ring (Replaces: 63222) |
|
$ 81.11 | |||||
| 7 | WP8519815 | Clip, Balance Ring (8) (Replaces: 387867) |
|
$ 7.51 | |||||
| 8 | 387868 | Balance Ring |
|
- | |||||
| 12 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 8.00 | ||||
| 13 | 387713 | Basket & Balance Ring |
|
- | |||||
| 14 | 285868 | Filter, Plate (includes Illus. 15) (Replaces: 62941) |
|
Immediately | $ 19.51 | ||||
| 15 | 62942 | Lock, Filter |
|
$ 7.59 | |||||
| 16 | 63039 | Tub |
|
- | |||||
| 17 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 18 | W10814296 | Gasket, Center Post (Replaces: 383727) |
|
Immediately | $ 8.26 | ||||
| 19 | WP353244 | Hose, Pressure Switch (Replaces: 386757) |
|
Immediately | $ 53.94 | ||||
| 20 | 63323 | Hose, Bleach |
|
$ 60.00 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: 356436) |
|
Immediately | $ 7.56 |
