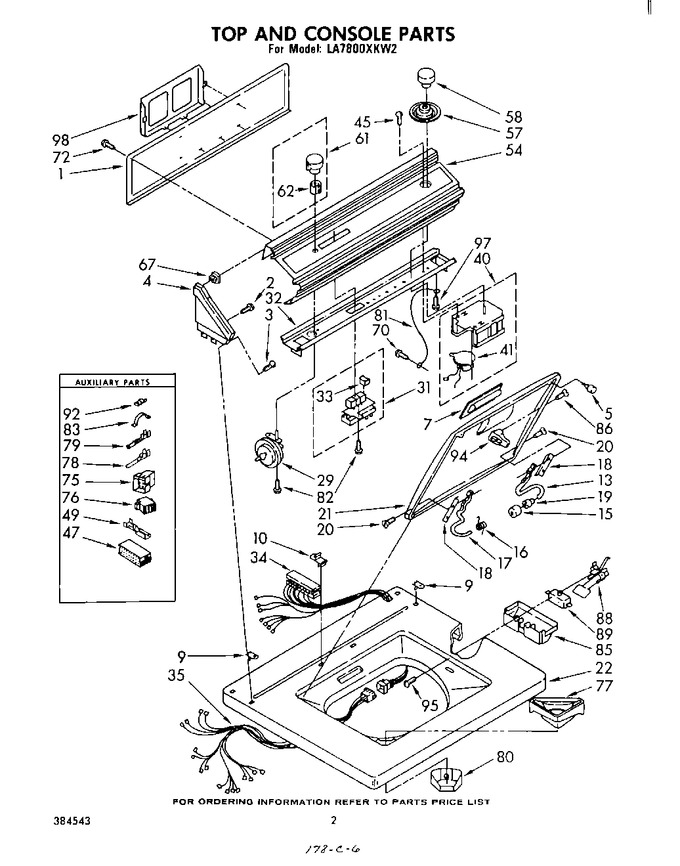

02 - Top And Console
03 - Drive
04 - Pump
05 - Cabinet
06 - Tub And Basket
07 - Gearcase
08 - Basket Drive And Brake
09 - Miscellaneous , Literature And Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 359372 | Panel, Rear |
|
- | |||||
| 2 | 355326 | Screw, 13-16 X 5/8 |
|
- | |||||
| 3 | 358225 | Screw |
|
- | |||||
| 4 | 377282 | Cap, End (l.h.) (new Avocado) |
|
- | |||||
| 4 | 375317 | Cap, End (l.h.) (new Avocado) |
|
- | |||||
| 4 | 375318 | Cap, End (l.h.) (golden Harvest Cap, End (r.h.)) |
|
- | |||||
| 4 | 375309 | Cap, End L.h. (white) |
|
- | |||||
| 4 | 375315 | Cap, End (l.h.) (almond) |
|
- | |||||
| 4 | 375316 | Cap, End (l.h.) (coffee) |
|
- | |||||
| 4 | 377283 | Cap, End L.h. (golden Harvest) |
|
- | |||||
| 4 | 375305 | Cap, End (l.h.) (white) |
|
- | |||||
| 4 | 375313 | Cap, End (l.h.) (almond) |
|
- | |||||
| 4 | 375314 | Cap, End (l.h.) (coffee) |
|
- | |||||
| 5 | WP9724509 | Bumper, Rubber (Replaces: 93770) |
|
Immediately | $ 7.14 | ||||
| 7 | 379887 | Handle, Lid (new Avocado) |
|
- | |||||
| 7 | 379884 | Handle, Lid (white) |
|
- | |||||
| 7 | 379885 | Handle, Lid (almond) |
|
- | |||||
| 7 | 379886 | Handle, Lid (coffee) |
|
- | |||||
| 7 | 379888 | Handle, Lid (golden Harvest) |
|
- | |||||
| 9 | 358473 | Nut, Push-in (2) |
|
$ 5.84 | |||||
| 10 | 358472 | Stop, Push-in Top (1) |
|
- | |||||
| 13 | WP91770 | Hinge, R.h. (Replaces: 91770) |
|
$ 24.71 | |||||
| 15 | 91605 | Bumper |
|
- | |||||
| 16 | DE81-05611A | Spring, Hinge (l.h.) (Replaces: 92398) |
|
$ 150.30 | |||||
| 17 | 91099 | Hinge, L.h. |
|
- | |||||
| 18 | WP21097 | Pad, Hinge (Replaces: 21097) |
|
$ 7.02 | |||||
| 19 | WP21258 | Bearing, Hinge (Replaces: 21258) |
|
Immediately | $ 6.87 | ||||
| 20 | WPW10119828 | Screw (Replaces: 18724) |
|
Immediately | $ 6.47 | ||||
| 21 | 379973 | Lid (golden Harvest) |
|
- | |||||
| 21 | 379969 | Lid (white) |
|
- | |||||
| 21 | 379970 | Lid (almond) |
|
- | |||||
| 21 | 379971 | Lid (coffee) |
|
- | |||||
| 21 | 379972 | Lid (new Avocado) |
|
- | |||||
| 22 | 380287 | Top (golden Harvest) |
|
- | |||||
| 22 | 380286 | Top (new Avocado) |
|
- | |||||
| 22 | 380285 | Top (coffee) |
|
- | |||||
| 22 | 380284 | Top (almond) |
|
- | |||||
| 22 | 380283 | Top (white) |
|
- | |||||
| 29 | 359711 | Switch, Water Level |
|
- | |||||
| 31 | 358553 | Switch, Water Temperature |
|
- | |||||
| 32 | 359707 | Bracket, Control |
|
- | |||||
| 33 | 301008 | Push Button (4) |
|
- | |||||
| 34 | 359325 | Harness, Console |
|
- | |||||
| 35 | 358116 | Harness, Base |
|
- | |||||
| 40 | 380269 | Timer Assembly, 60 Hz. (c.c.a. (alternate)) |
|
- | |||||
| 40 | 380265 | Timer Assembly, 60 Hz. (mallory (alternate)) |
|
- | |||||
| 41 | 362681 | Motor, Timer (60 Hz.) (use W/c.c.a. Timer) |
|
- | |||||
| 41 | 365941 | Motor, Timer (60 Hz.) (use W/mallory Timer) |
|
- | |||||
| 45 | WP356418 | Screw, 10-32 X .31 (Replaces: 96435) |
|
$ 7.13 | |||||
| 47 | 352090 | Block, Disconnect (white) |
|
- | |||||
| 47 | W10876590 | Block, Disconnect (black) (Replaces: 352089) |
|
$ 11.48 | |||||
| 49 | 352088 | Terminal, Female |
|
$ 5.83 | |||||
| 54 | 382414 | Panel, Control |
|
- | |||||
| 57 | 359254 | Dial, Timer |
|
- | |||||
| 58 | 359773 | Knob, Timer |
|
- | |||||
| 61 | 690308 | Knob Assembly (water Level) |
|
- | |||||
| 62 | WP688805 | Clip, Control Knob (Replaces: 688805) |
|
Immediately | $ 7.03 | ||||
| 67 | 689559 | Nut, Push-in |
|
- | |||||
| 70 | WP3351614 | Screw, 10 X 3/8 (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 72 | W11693756 | Screw, 8-18 X 1/2 (Replaces: 359625) |
|
Immediately | $ 12.65 | ||||
| 75 | 94612 | Cap, Terminal (console Harness) |
|
- | |||||
| 76 | 94611 | Plug, Terminal (cabinet Harness) |
|
- | |||||
| 77 | 352821 | Bezel, Dispenser |
|
- | |||||
| 78 | 94613 | Terminal, (male) |
|
- | |||||
| 79 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 6.90 | |||||
| 80 | 352827 | Tray, Dispenser |
|
- | |||||
| 81 | 3184020 | Wire, Ground (Replaces: 54570) |
|
$ 74.50 | |||||
| 82 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 83 | WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 9.98 | |||||
| 85 | WP359231 | Shield, Lid Switch (Replaces: 354289) |
|
$ 7.58 | |||||
| 86 | 354975 | Screw & Washer |
|
- | |||||
| 88 | 370959 | Switch Actuator Assembly |
|
$ 33.01 | |||||
| 89 | W10820036 | Switch, Lid (alternate) (Replaces: 367034) |
|
Immediately | $ 27.45 | ||||
| 89 | 00-6163 | Switch, Lid (alternate) (Replaces: 364090) |
|
$ 22.92 | |||||
| 89 | W10820036 | Switch, Lid (alternate) (Replaces: 364091) |
|
Immediately | $ 27.45 | ||||
| 92 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.19 | |||||
| 94 | 357633 | Strike, Lid Switch |
|
- | |||||
| 95 | 354764 | Screw & Washer |
|
- | |||||
| 97 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 98 | 357645 | Rack, Literature |
|
- | |||||
| 299885 | Wire, Splicing 240 Volt |
|
- |
