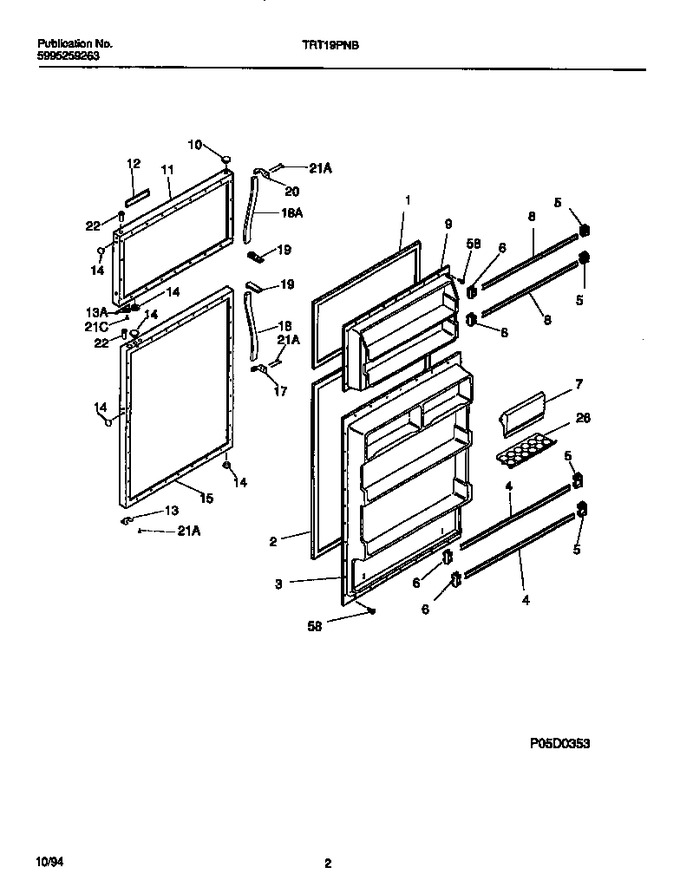

02 - Door Section


03 - Cabinet W/ Fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608912		Gasket-frzr Door,white,magnetic		Appelez-nous	-
2	215732413		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	5303206569		Panel-inner Door, Refr		Appelez-nous	-
4	5303281387		Rack-door, 25.25`` X 1.58``		Appelez-nous	-
5	5303007295		Support-door Rack, Rh				$ 32.55
6	5303007297		Support-door Rack, Lh				$ 64.58
7	5303303599		Door Dairy		Appelez-nous	-
8	5303288345		Rack-door, 25.06`` X 1.58``		Appelez-nous	-
9	5303206550		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	3916268		Panel-frzr Door, White		Appelez-nous	-
12	215366301		Frame - Nameplate,white		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303916866		Panel-refr Door, White, W/insulation & Brace		Appelez-nous	-
17	215364800		Handle End				$ 73.92
18	5303301465		Insert-handle Grip, White, (non-illustrated)		Appelez-nous	-
18	5303015111		Handle-door		Appelez-nous	-
18	5303301466		Insert-handle Grip, Black, (non-illustrated)		Appelez-nous	-
19	215365000		Handle End, (2)		Appelez-nous	-
20	215364900		Handle End				$ 108.52
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*38360	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	215220317		Label-nameplate, White, (non-illustrated)		Appelez-nous	-
12B	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (non-illustrated)		Appelez-nous	-
13A	218249001		Door Stop, White, Frzr				$ 82.06
18A	5303292745		Insert-handle Grip, Black (non-illustrated)		Appelez-nous	-
18A	5303201377		Handle-door				$ 60.90
18A	5303301464		Insert-handle Grip, White (non-illustrated)		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21C	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
