SELECT A DIAGRAM

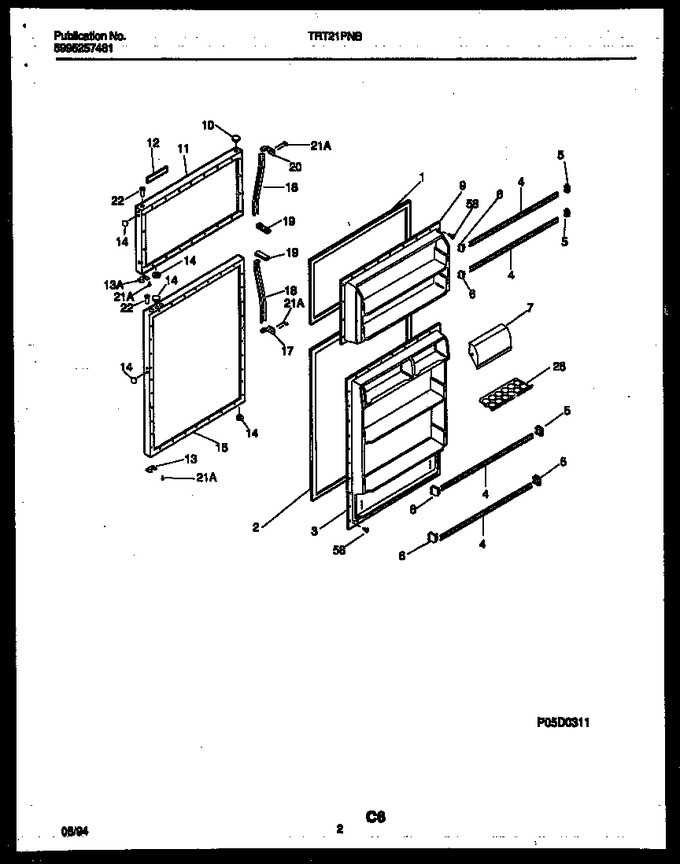

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608913		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	215732413		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	5303212482		Panel-inner Door, Refr		Appelez-nous	-
4	5303281388		Rack-door		Appelez-nous	-
5	5303007295		Support-door Rack, Rh				$ 32.55
6	5303007297		Support-door Rack, Lh				$ 64.58
7	5303303599		Door Dairy		Appelez-nous	-
9	5318540802		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303916887		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215366301		Frame - Nameplate,white		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303916866		Panel-refr Door, White, W/insulation, & Cross Brace		Appelez-nous	-
17	215364800		Handle End				$ 73.92
18	5303015111		Handle-door		Appelez-nous	-
19	215365000		Handle End, (2)		Appelez-nous	-
20	215364900		Handle End				$ 108.52
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*10665	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12B	215220317		Label-nameplate, White, (non-illustrated)		Appelez-nous	-
12C	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (non-illustrated)		Appelez-nous	-
13A	5308000255		Door Stop				$ 42.20
18B	5303301465		Insert-handle Grip, White, (non-illustrated)		Appelez-nous	-
18C	5303301466		Insert-handle Grip, Black, (non-illustrated)		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
