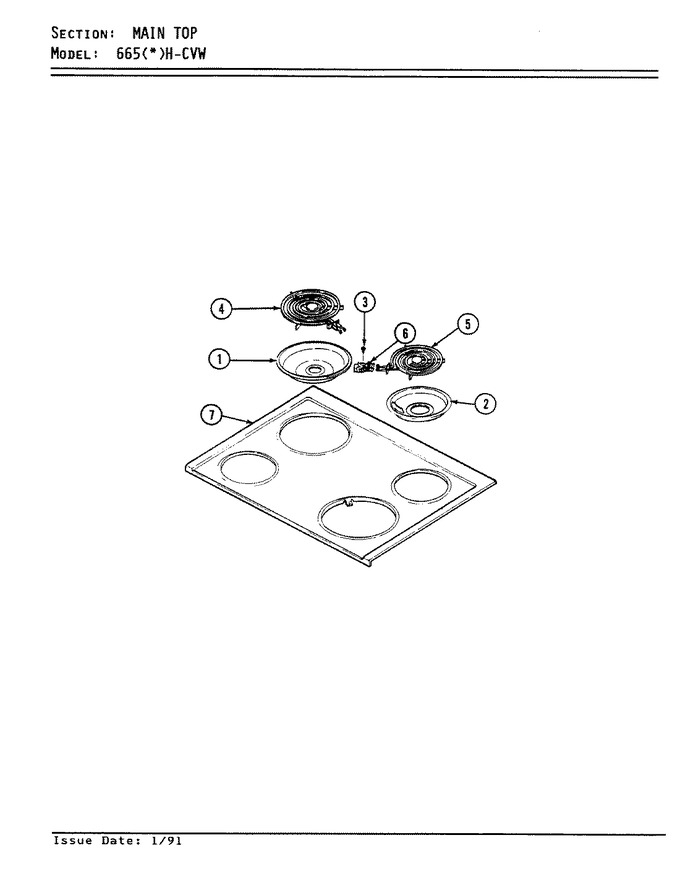

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10196405 | Bowl, Drip (8``) (Replaces: 7725P014-60) | 1 |
|
Immediately | $ 15.56 | |||
| 2 | 7715P015-60 | Trim, Backguard Top | 1 |
|
- | ||||
| 3 | WP74004005 | Screw (Replaces: 7118P010-60) | 1 |
|
$ 6.95 | ||||
| 4 | WP3191454 | Element (8``) (Replaces: 7406P039-60) | 1 |
|
$ 163.63 | ||||
| 5 | WP660532 | Element (6``) (Replaces: 7406P037-60) | 1 |
|
Immediately | $ 36.90 | |||
| 6 | 330031 | Block, Surface Unit (Replaces: 7401P014-60) | 1 |
|
Immediately | $ 14.48 | |||
| 7 | WP4159193 | Screw (Replaces: 7118P004-60) | 1 |
|
$ 4.29 | ||||
| 7 | 3802F029-80 | Brace, Main Top | 1 |
|
- | ||||
| 7 | 2002W028-81 | Top, Main (white) | 1 |
|
- |
