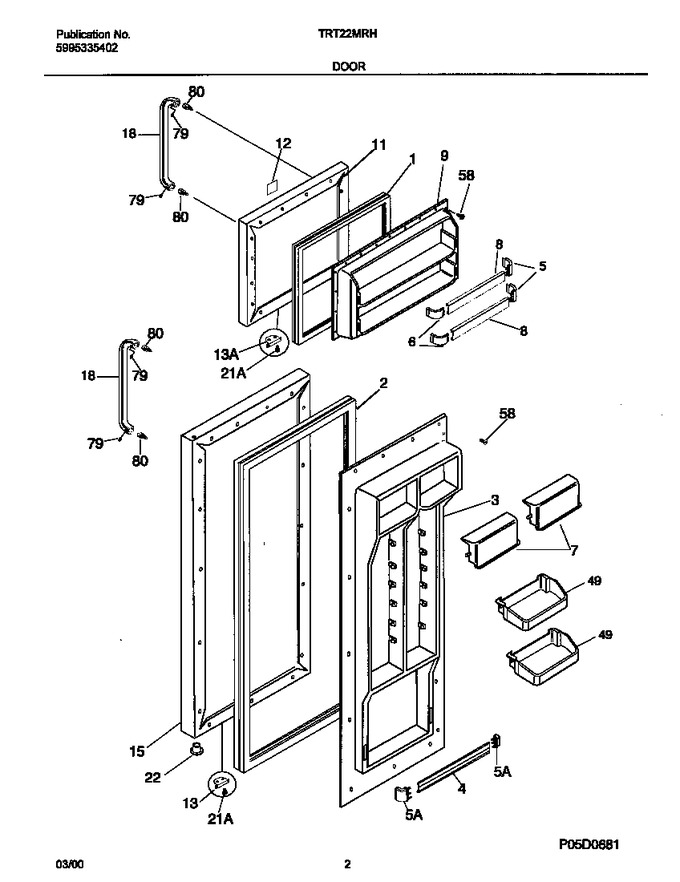

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608915		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730614		Gasket-refr Door, White, Magnetic				$ 201.67
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	218763640		Rack-door,(2)		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
5	218809801		Support-door Rack, Rh		Appelez-nous	-
6	218809701		Support-door Rack, Lh		Appelez-nous	-
7	5303304569		Door-dairy,12.96`` Wide ,clear ,no Graphics		Appelez-nous	-
8	218763641		Rack-door				$ 32.08
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
11	5303918147		Panel-ext Frzr Door,white ,w/foam Insulatn		Appelez-nous	-
12	218868706		Nameplate		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
13	215030001		Door Stop, White, Frzr				$ 29.61
15	5303918148		Panel-ext Ref Door,white ,w/foam Insulatn		Appelez-nous	-
18	218756502		Handle-door, Stainless Steel, With Insert, & Set Screw		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
49	215441502		Bin-door,gallon ,with Trim   (Replaces: 218592323)				$ 176.87
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder, 10 Ab, Handle Mounting   (Replaces: 218755501)			Immediately	$ 18.60
*97880	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
