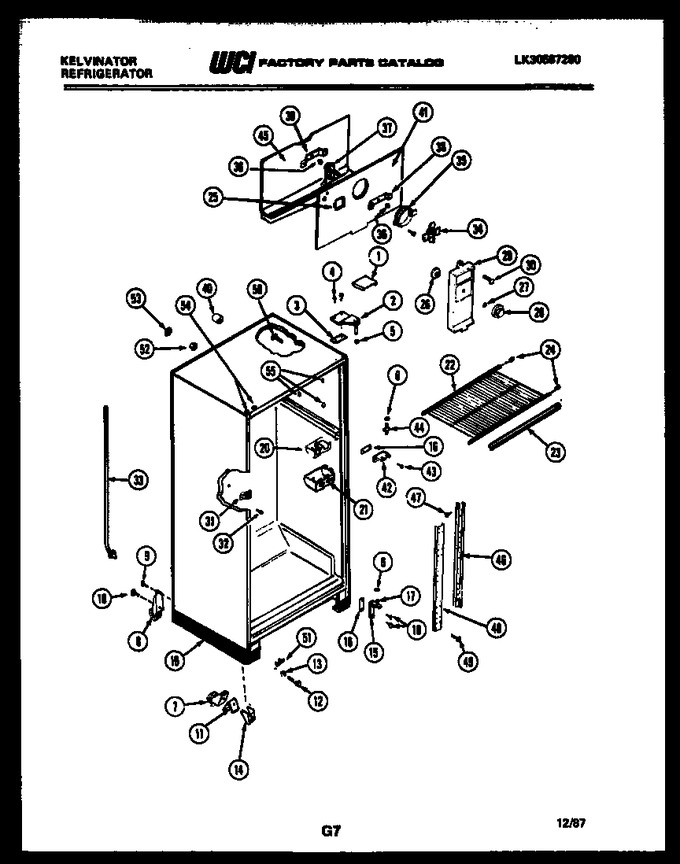

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
06 - Ice Maker Parts
07 - Ice Maker Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G183558-11 | Cover-hng Almd |
|
- | |||||
| 2 | G183714 | Hinge-top |
|
- | |||||
| 3 | G183861 | Shim-top Hng |
|
- | |||||
| 4 | G167103 | Screw (2) |
|
- | |||||
| 5 | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 6 | G164355 | Washer, Hng |
|
- | |||||
| 7 | G177021 | Roller Assy |
|
- | |||||
| 8 | G183407 | Roller Assy |
|
- | |||||
| 9 | G187009 | Screw-rlr Mtg (2) |
|
- | |||||
| 10 | G177025 | Bolt-rear Rlr (2) |
|
- | |||||
| 11 | G178494 | Spring-adj (2) |
|
- | |||||
| 12 | G177024 | Bolt-rlr Adj (2) |
|
- | |||||
| 13 | G182799 | Washer (2) |
|
- | |||||
| 14 | G177302 | Support-base (2) |
|
- | |||||
| 15 | G191474 | Hinge Brkt-btm |
|
- | |||||
| 16 | G163203 | Shim-btm Hng |
|
- | |||||
| 17 | G166505 | Pin-btm Hng |
|
- | |||||
| 18 | G181020 | Screw (2) |
|
- | |||||
| 19 | G490004-02 | Base, Cabinet |
|
- | |||||
| 20 | G162675 | Deflector Air |
|
- | |||||
| 21 | G162178 | Cover, Air Deflctr |
|
- | |||||
| 22 | G177059-02 | Shelf-frzr |
|
- | |||||
| 23 | G172434-16 | Trim Shelf |
|
- | |||||
| 24 | G166495-01 | End Cap-shelf (2) |
|
- | |||||
| 25 | G162827-14 | Button, Dec Plug |
|
- | |||||
| 26 | G162661 | Damper |
|
- | |||||
| 27 | G162662 | Nut, Push |
|
- | |||||
| 28 | G162747-05 | Knob Dmpr Cont |
|
- | |||||
| 29 | G163061-86 | Cover, Fan |
|
- | |||||
| 30 | G187363 | Screw |
|
- | |||||
| 31 | G162179 | Spout, Drain |
|
- | |||||
| 32 | G185279 | Pin Push (2) |
|
- | |||||
| 33 | G184920-01 | Tube, Drain |
|
- | |||||
| 34 | G174705 | Fan Blade |
|
- | |||||
| 35 | G167217 | Ring-orifice |
|
- | |||||
| 36 | G187559 | Bushing |
|
$ 48.20 | |||||
| 37 | G173301 | Motor Fan |
|
- | |||||
| 38 | G185302 | Bracket-front |
|
- | |||||
| 39 | G185303 | Bracket-rear |
|
- | |||||
| 40 | G85642 | Tube, Rubber (2) |
|
- | |||||
| 41 | G177529 | Cover, Coil |
|
- | |||||
| 42 | G163207 | Hinge Brkt-ctr |
|
- | |||||
| 43 | G183103 | Screw-hng Mtg (4) |
|
- | |||||
| 44 | G142220 | Pin |
|
- | |||||
| 45 | G177534 | Trough Drain |
|
- | |||||
| 46 | G170695 | Chanl, Rs & Ls |
|
- | |||||
| 47 | G181104 | Screw (6) |
|
- | |||||
| 48 | G189341 | Channel, Ctr |
|
- | |||||
| 49 | G187449 | Screw (3) |
|
- | |||||
| 50 | G163669 | Sprt-coil Cov (2) |
|
- | |||||
| 51 | G166912 | Btn-plug |
|
- | |||||
| 52 | G174733 | Ferrule, Inner |
|
- | |||||
| 53 | G174734 | Ferrule Outer |
|
- | |||||
| 54 | G174747-11 | Button-plug, Almond |
|
- | |||||
| 55 | G167565 | Grommet Rs (4) |
|
- | |||||
| *14156 | G176993 | Grommet-ls (4) |
|
- | |||||
| *14160 | G179684-11 | Corner Trim (almd) |
|
- | |||||
| *14161 | G187599 | Buttn I/m Hole (5) |
|
- | |||||
| *14161 | G162892-01 | Buttn Liner (2) |
|
- | |||||
| *14163 | G179797 | Tapping Plate (4) |
|
- | |||||
| 33A | G176853 | Ring, Seal (non-illustrated) |
|
- | |||||
| 39A | G164571 | Bracket-connector (non-illustrated) |
|
- | |||||
| 39B | G162585 | Screw |
|
- | |||||
| 41A | G167542 | Nut-u Type (2) (non-illustrated) |
|
- | |||||
| 42A | G166847 | Washer-steel (4) (non-illustrated) |
|
- |
