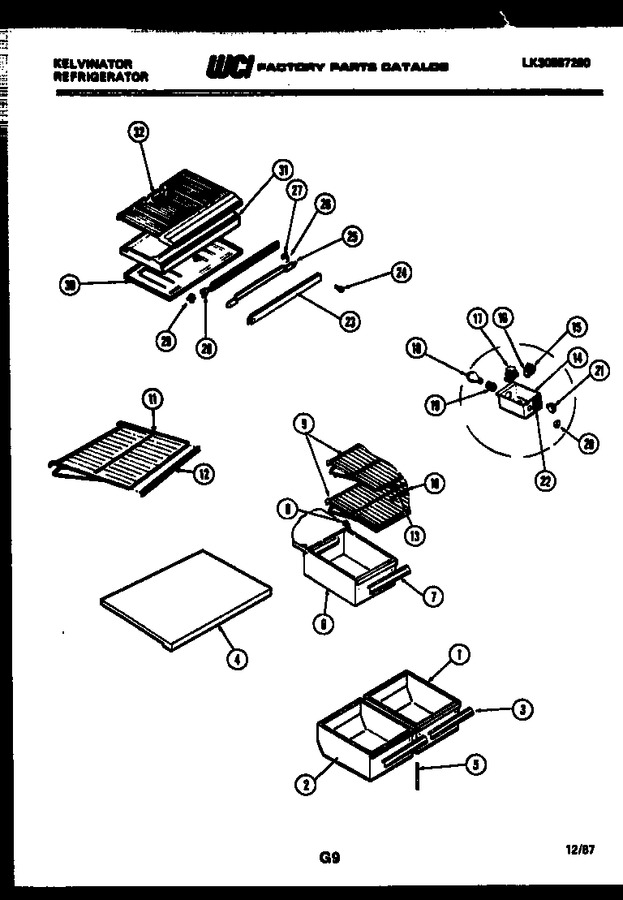

SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


06 - Ice Maker Parts


07 - Ice Maker Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3015046		Pan Crisper Rs		Appelez-nous	-
2	3015047		Pan Crisper Ls		Appelez-nous	-
3	3015059		Trim (2)		Appelez-nous	-
4	3015045		Cover-crisper		Appelez-nous	-
5	G166310-02		Support, Cover		Appelez-nous	-
6	G177623-06		Meat Pan		Appelez-nous	-
7	G161013-67		Trim		Appelez-nous	-
8	G177106-01		Cover, Meat Pan		Appelez-nous	-
9	G177390-03		Shelf Half (3)		Appelez-nous	-
10	G172434-17		Trim		Appelez-nous	-
11	G177390-06		Shelf Full		Appelez-nous	-
12	G172434-30		Trim		Appelez-nous	-
13	G170910		Clip, Shelf (6)		Appelez-nous	-
14	G176722-03		Box-control		Appelez-nous	-
15	G162205-11		Control Temp.		Appelez-nous	-
16	G142176-11		Tube Plastic		Appelez-nous	-
17	G187484		Timer-defrost		Appelez-nous	-
18	G165723		Bulb, Light		Appelez-nous	-
19	G168302		Socket Light		Appelez-nous	-
20	G490107-02		Knob, Control		Appelez-nous	-
21	G178402-01		Switch Slide		Appelez-nous	-
22	G189592		Label-cont Box		Appelez-nous	-
23	G180373-08		Mullion-avoc		Appelez-nous	-
24	G183103		Screw-mtg (4)		Appelez-nous	-
25	G490087		Strap-muln-mtg		Appelez-nous	-
26	G166847		Washer-steel (4)		Appelez-nous	-
27	G490082		Spacer (2)		Appelez-nous	-
28	G177254		Heater, Mullion		Appelez-nous	-
29	G162672		Switch Light		Appelez-nous	-
30	G490021-02		Top-refr.		Appelez-nous	-
31	G176777		Divider		Appelez-nous	-
32	G185912		Bottom-frzr		Appelez-nous	-
*14189	G174818		Harness, Divider		Appelez-nous	-
14A	G187363		Screw		Appelez-nous	-
15A	G107080		Screw		Appelez-nous	-
17A	G105289		Screw		Appelez-nous	-
30A	G162673		Screw-mtg (3) (non-illustrated)		Appelez-nous	-
4A	3015051		Gasket Cover (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
