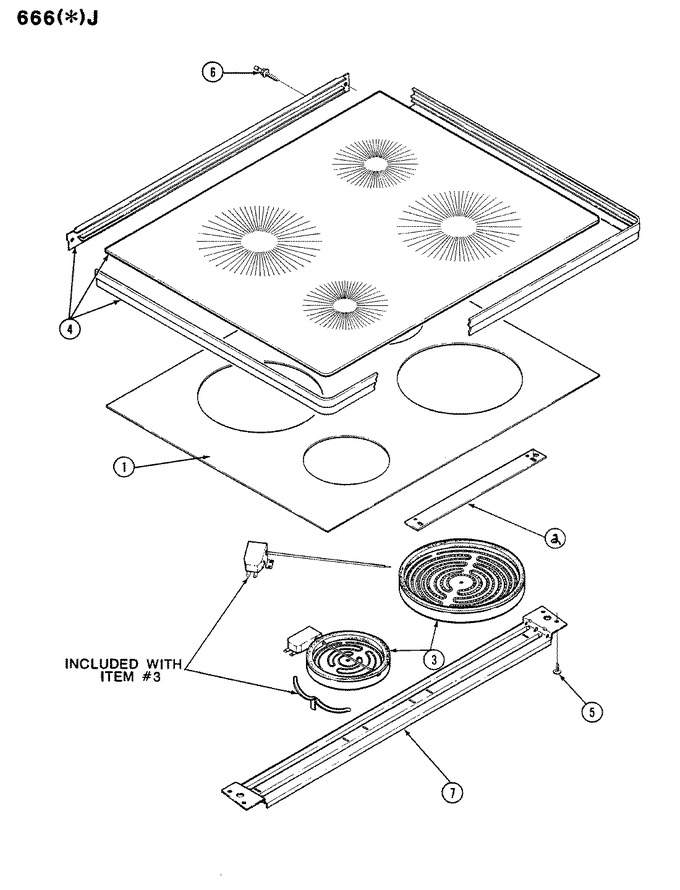

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F157-80 | Baffle | 1 |
|
- | ||||
| 2 | 3801F117-80 | Bracket, Main Top Ret | 1 |
|
- | ||||
| 3 | W10823704 | Element, Std (Replaces: 7406P058-60) | 18 |
|
Immediately | $ 309.01 | |||
| 3 | W10823707 | Element, Giant (Replaces: 7406P057-60) | 18 |
|
Immediately | $ 316.13 | |||
| 3 | W10823704 | Element, Std. Ceram (Replaces: 7406P053-60) | 1-17 |
|
Immediately | $ 309.01 | |||
| 3 | W10823707 | Element, Giant Cerm (Replaces: 7406P052-60) | 1-17 |
|
Immediately | $ 316.13 | |||
| 4 | 5425A010-60 | Kit, Main Top | 1 |
|
- | ||||
| 4 | 5425A009-60 | Kit, Main Top (blk) | 1 |
|
- | ||||
| 5 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 1 |
|
$ 15.94 | ||||
| 6 | 7105P005-60 | Spacer, Main Top | 1 |
|
- | ||||
| 7 | 3807F229-80 | Support, Ceramic Element | 1 |
|
- |
