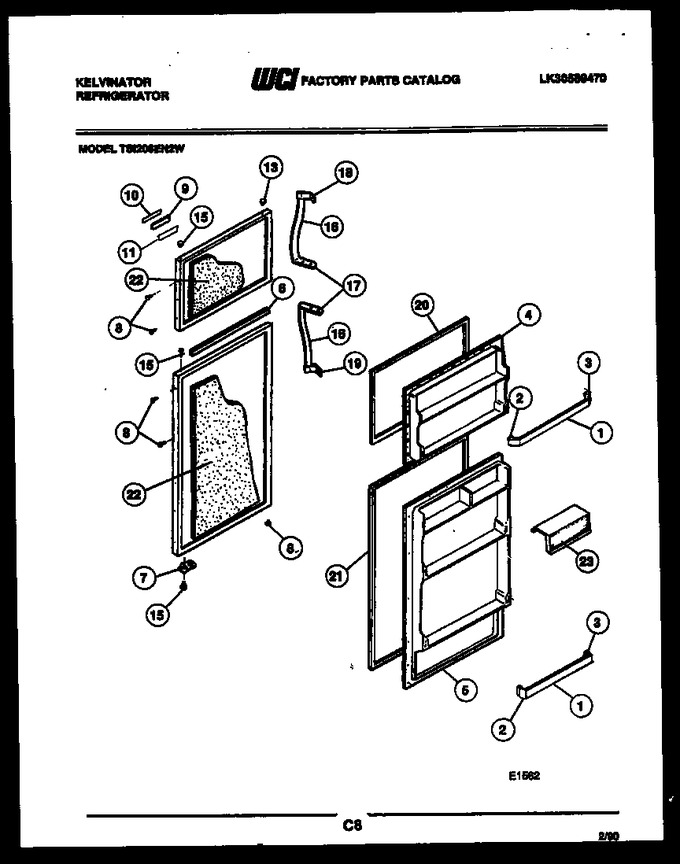

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


06 - Ice Maker Parts


07 - Ice Maker Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016516		Door Rack (4)		Appelez-nous	-
2	G178284-01		Support-ls (4)		Appelez-nous	-
3	G178287-01		Support-rs (4)		Appelez-nous	-
4	3016517		Inner Panel-freezer		Appelez-nous	-
5	3016520		Inner Panel-refrigerator		Appelez-nous	-
6	3015602		Trim-refrigerator Door		Appelez-nous	-
7	G155072		Door Stop (2)		Appelez-nous	-
8	G162977-09		Button Plug-wheat		Appelez-nous	-
9	G178292		Nameplate Frame		Appelez-nous	-
10	G189500-01		Label-nameplate		Appelez-nous	-
11	G153407-60		Tape-mounting		Appelez-nous	-
12	3916275		Refrigerator Door-wheat		Appelez-nous	-
13	G169332-09		Button Plug, Wheat		Appelez-nous	-
14	3916408		Freezer Door (wheat)		Appelez-nous	-
15	G183138		Bearing Hinge (8)		Appelez-nous	-
16	5303201377		Handle Grip (2)				$ 60.90
17	G189453-01		Handle End (2)		Appelez-nous	-
18	G189452-01		Handle End		Appelez-nous	-
19	G189451-01		Handle End		Appelez-nous	-
20	G186932-14		Gasket-freezer Door		Appelez-nous	-
21	G186932-13		Gasket-refrigerator Door		Appelez-nous	-
22	3007739		Insulation-bulk		Appelez-nous	-
23	3015049		Dairy Door (2)		Appelez-nous	-
16A	3200995		Insert Grip (2) (non-illustrated)		Appelez-nous	-
16B	G185566		Screw		Appelez-nous	-
4A	G162585		Screw		Appelez-nous	-
5A	G162585		Screw		Appelez-nous	-
7A	G185566		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
