01 - Body
02 - Control Panel
03 - Control Panel

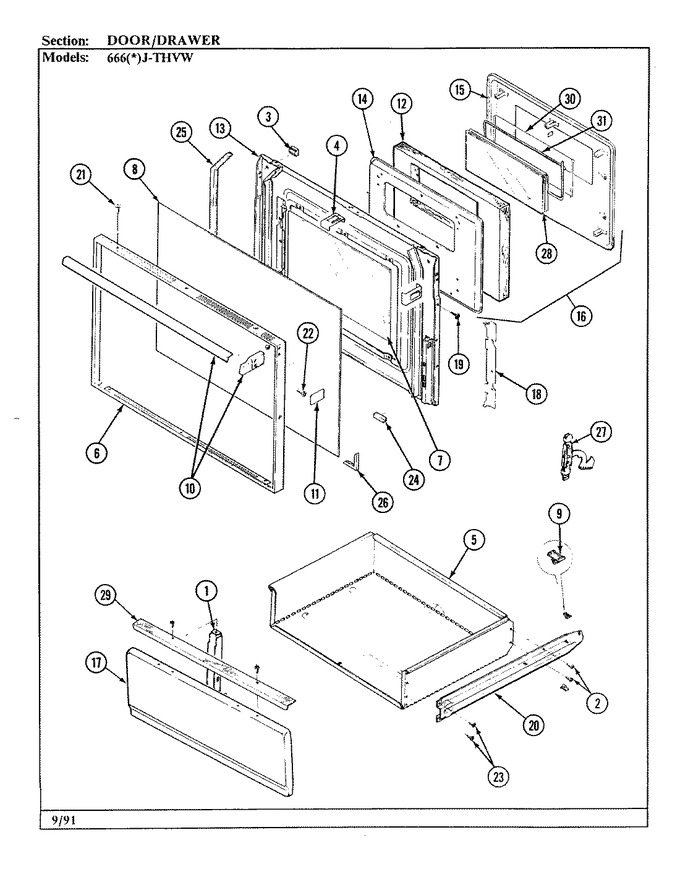

04 - Door\drawer
05 - Internal Controls
06 - Oven
07 - Top Assy.
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 1 | 3802F044-51 | Brace, Drawer | 1 |
|
- | ||||
| 2 | 7101P272-60 | Screw, Service Drawer | 1 |
|
- | ||||
| 3 | 8003P002-60 | Bumper Door (round) | 1 |
|
- | ||||
| 3 | 8003P009-60 | Bumper, Door (square) | 27 |
|
- | ||||
| 4 | 7112P034-60 | Clip, Door | 1 |
|
- | ||||
| 5 | 3801F031-51 | Bracket | 1 |
|
- | ||||
| 5 | 3405F008-80 | Drawer, Service | 1 |
|
- | ||||
| 6 | 7706P243-60 | Frame, Door | 1 |
|
- | ||||
| 7 | 7902P097-60 | Glass, Inner | 1 |
|
$ 63.87 | ||||
| 8 | 8270P033-60 | Tape, Foil 3`` X 60 Yrds | 1 |
|
- | ||||
| 8 | 7902P276-60 | Glass, Door | 1 |
|
- | ||||
| 9 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 9 | 8016P009-60 | Glide, Drawer | 1 |
|
- | ||||
| 10 | 7701P047-60 | Handle, Door | 1 |
|
- | ||||
| 11 | 7728P068-60 | Insert, Handle (chrome) | 1 |
|
- | ||||
| 12 | 4804F006-60 | Insulation Door Pad | 1 |
|
- | ||||
| 13 | 2402W173-15 | Lining | 27 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 13 | 2402W173-19 | Lining | 50 |
|
- | ||||
| 13 | 8114P274-60 | Label (cleaning Inst.) | 1 |
|
- | ||||
| 13 | WP7103P114-60 | Nut, Snap (Replaces: 7103P114-60) | 1 |
|
$ 9.89 | ||||
| 13 | 2402W128-15 | Lining | 1 |
|
- | ||||
| 14 | 2410F016-51 | Pad, Inner | 1 |
|
- | ||||
| 15 | 2410W041-19 | Pad, Door | 50 |
|
- | ||||
| 15 | 2410W041-15 | Pad, Door | 1 |
|
- | ||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 16 | 2410A041-15 | Pad, Assy. | 1 |
|
- | ||||
| 16 | 2410A041-19 | Pad, Assy. | 50 |
|
- | ||||
| 17 | 2416F006-74 | Panel, Service Drawer Almond | 1 |
|
- | ||||
| 18 | 3804F051-80 | Retainer, Glass | 1 |
|
- | ||||
| 19 | 7107P017-60 | Rivet | 1 |
|
- | ||||
| 20 | 3406F026-80 | Runner, Inner | 1 |
|
- | ||||
| 21 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 1 |
|
Immediately | $ 6.85 | |||
| 22 | 7101P123-60 | Screw | 1 |
|
- | ||||
| 23 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 24 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1 |
|
$ 11.95 | ||||
| 25 | 7208P002-60 | Seal | 1 |
|
- | ||||
| 26 | 8010P045-60 | Spacer, Glass Corner | 1 |
|
- | ||||
| 27 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 28 | 7907P018-60 | Glass Asy., Oven Door | 1 |
|
- | ||||
| 29 | 2411F001-74 | Handle Door Alm | 1 |
|
- | ||||
| 30 | 3804F022-45 | Retainer | 1 |
|
- | ||||
| 31 | 7201P018-60 | Gasket, Window | 1 |
|
- |
