02 - Door Parts

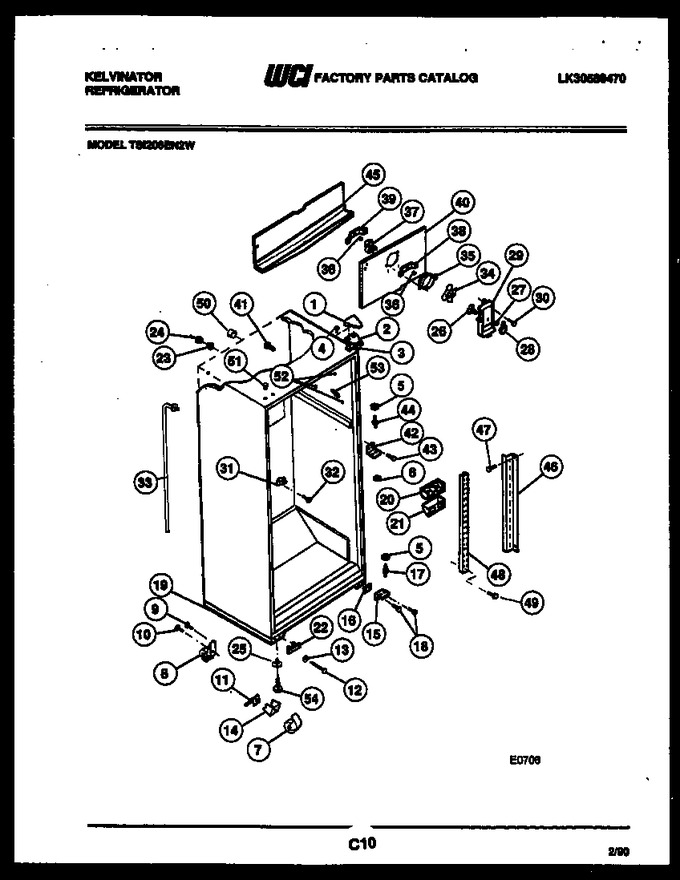

03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
06 - Ice Maker Parts
07 - Ice Maker Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G183558-01 | Cover Hinge, White |
|
- | |||||
| 2 | G183714 | Hinge-top |
|
- | |||||
| 3 | G183861 | Shim Top Hinge |
|
- | |||||
| 4 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 5 | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 6 | G164355 | Washer-center Hinge |
|
- | |||||
| 7 | G177021 | Roller Assembly (2) |
|
- | |||||
| 8 | G183407 | Roller Assembly (2) |
|
- | |||||
| 9 | G187009 | Screw-roller Mounting (2) |
|
- | |||||
| 10 | G177025 | Bolt-rear Roller (2) |
|
- | |||||
| 11 | G178494 | Spring-roller Adj (2) |
|
- | |||||
| 12 | G177024 | Bolt-roller Adj (2) |
|
- | |||||
| 13 | G182799 | Washer (2) |
|
- | |||||
| 14 | G177302 | Support-base (2) |
|
- | |||||
| 15 | 3202834 | Bracket-bottom Hinge |
|
- | |||||
| 16 | G163203 | Shim-bottom Hinge |
|
- | |||||
| 17 | G166505 | Pin-bottom Hinge |
|
- | |||||
| 18 | G181020 | Screw-mounting (2) |
|
- | |||||
| 19 | G490004-02 | Cabinet Base |
|
- | |||||
| 20 | G162675 | Air Deflector |
|
- | |||||
| 21 | G162178 | Cover, Deflector |
|
- | |||||
| 22 | G166912 | Plug-hinge Hole |
|
- | |||||
| 23 | G174733 | Ferrule, Inner |
|
- | |||||
| 24 | G174734 | Ferrule Outer |
|
- | |||||
| 25 | G183073 | Nut, Anchor (2) |
|
- | |||||
| 26 | G162661 | Damper |
|
- | |||||
| 27 | G162662 | Push-nut |
|
- | |||||
| 28 | 5308000081 | Knob - Damper Control |
|
$ 36.02 | |||||
| 29 | 3016784 | Cover-fan |
|
- | |||||
| 30 | G187363 | Screw |
|
- | |||||
| 31 | G162179 | Drain Spout |
|
- | |||||
| 32 | 5303001361 | Pushpin (2) |
|
- | |||||
| 33 | 5303001458 | Drain Tube |
|
- | |||||
| 34 | G174705 | Fan Blade |
|
- | |||||
| 35 | G167217 | Orifice Ring |
|
- | |||||
| 36 | G157666 | Bushing (2) |
|
- | |||||
| 37 | 5300158289 | Motor, Fan |
|
Immediately | $ 149.94 | ||||
| 38 | G185302 | Bracket-front |
|
- | |||||
| 39 | G185303 | Bracket-rear |
|
- | |||||
| 40 | 5308013665 | Cover, Evaporator Coil |
|
- | |||||
| 41 | G163669 | Support, Cover (2) |
|
- | |||||
| 42 | G163207 | Bracket-center Hinge |
|
- | |||||
| 43 | G183103 | Screw-hinge Mounting (2) |
|
- | |||||
| 44 | G142220 | Pin |
|
- | |||||
| 45 | G177534 | Drain Trough |
|
- | |||||
| 46 | 5308000302 | Channel-rs & Ls |
|
- | |||||
| 47 | 5308010253 | Screw, Mounting (6) |
|
- | |||||
| 48 | G189341 | Channel Center |
|
- | |||||
| 49 | G187449 | Screw-mounting |
|
- | |||||
| 50 | G85642 | Tube, Rubber (2) |
|
- | |||||
| 51 | G174747-01 | Button-plug-white |
|
- | |||||
| 52 | G167565 | Grommet Rs (4) |
|
- | |||||
| 53 | 5303202336 | Corner-trim (white) |
|
- | |||||
| 54 | G185713 | Leveling Leg (2) |
|
- | |||||
| *95814 | G187599 | Plug-frzr Liner (3) |
|
- | |||||
| 15A | 5308012296 | Plate-tapping (2) (non-illustrated) |
|
$ 47.44 | |||||
| 2A | 5308012296 | Plate-tapping (2) (non-illustrated) |
|
$ 47.44 | |||||
| 33A | 5303207353 | Ring Seal (non-illustrated) |
|
$ 6.81 | |||||
| 35A | G162585 | Screw |
|
- | |||||
| 39A | G164571 | Bracket-connector (non-illustrated) |
|
- | |||||
| 39B | G162585 | Screw |
|
- | |||||
| 40A | G187363 | Screw |
|
- | |||||
| 40B | G167542 | Nut-u Type (2) (non-illustrated) |
|
- | |||||
| 40C | 3203044 | Plug-short Test Hole (non-illustrated) |
|
- | |||||
| 43A | G166847 | Washer-steel (2) (non-illustrated) |
|
- | |||||
| 52A | G176993 | Grommet Ls (4) (non-illustrated) |
|
- |
