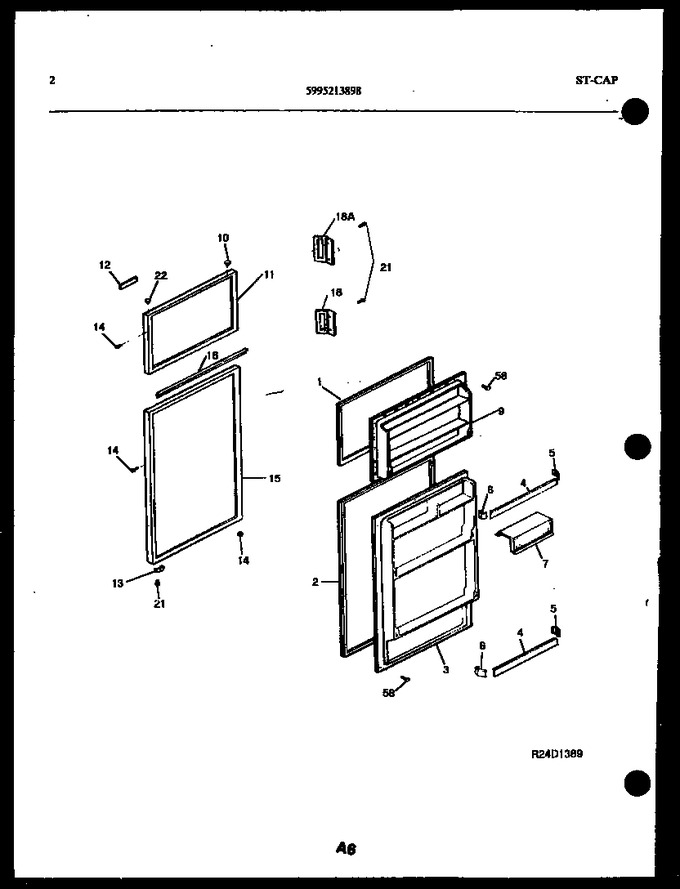

02 - Door Parts
03 - Cabinet Parts
05 - Shelves And Supports
07 - System And Automatic Defrost Parts
08 - Ice Maker And Ice Maker Installatio
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308016617 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5308015544 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5303273170 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303273152 | Rack-door, (4) |
|
- | |||||
| 5 | 5317828701 | Support Door Rack Rh (4) |
|
$ 8.18 | |||||
| 6 | 5317828401 | Support Door Rack Lh (4) |
|
$ 11.48 | |||||
| 7 | 5303273147 | Door-dairy |
|
- | |||||
| 9 | 3016517 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303917083 | Panel-frzr Door, Almond |
|
- | |||||
| 12 | 5303273164 | Nameplate Assy |
|
- | |||||
| 13 | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303916886 | Panel-refr Door, Almond |
|
- | |||||
| 16 | 5318755102 | Trim-door |
|
- | |||||
| 18 | 5303274256 | Handle-door |
|
- | |||||
| 21 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *22639 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 18A | 5303274255 | Handle-door |
|
- |
